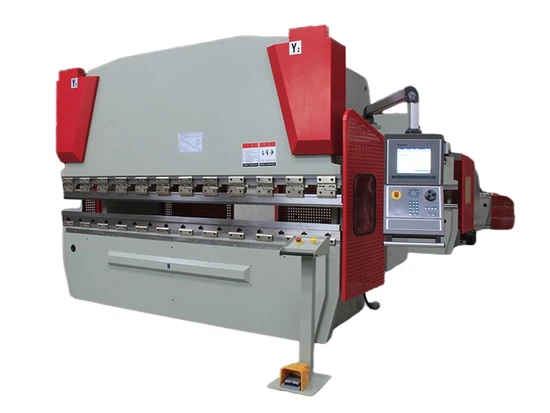

Professional CNC Press Brake Manufacturer in China

Product Description

Product Description: Sheet Metal Bending Machine Company: Shanghai Aluke Equipment Co., Ltd. Features: High-efficiency and high-precision bending of sheet metal Ability to bend various work pieces using different upper and lower dies Single slider travel for sheet bending and shaping complicated work pieces Possibility of punching holes with relevant equipment UG (finite element) analysis for optimal design Sturdy steel plate welded structure for strength and rigidity Hydraulic drive to prevent overload accidents Steady work performance, easy operation, and reliable safety Benefits: Efficient and precise bending of sheet metal Versatile bending capabilities for different work pieces Ability to shape complex work pieces through multiple bends Convenient hole punching functionality Attractive appearance with computer-aided design Prevention of overload accidents for operator safety Reliable performance for consistent results
Discover the CNC Press Brake with Da66we by Shanghai Aluke Equipment Co., Ltd. in China. This hydraulic bending machine offers automatic operation and is certified with EPA, ISO 9001:2008, CE, and CS.

No.	Name		Value		Unit	100T3200
1	Nominal pressure		1000		KN
2	Length of workbench		3200		mm
3	Width of workbench		180		mm
4	Poles distance		2600		mm
5	Throat depth		400		mm
6	slide stroke		200		mm
7	Max open		380		mm
8	Height of the workbench		830		mm
9	Back gauge stroke		410		mm
10	Fast down speed		120		mm/s
11	Return speed		10		mm/s
12	Working speed		100		mm/s
13	CNC system		DELEM DA66WE
14	Compensation cylinders		3		piece
15	Number of controlled axes		6+1(Y1\Y2\X\R\Z1\Z2+W)
16	Precision of back gauge	X-axis	Stroke	500	mm
17			Precision	±0.05	mm
18			speed	200	mm/s
19			Repeat positioning accuracy	±0.015	mm
20		R-axis	Stroke	200	mm
21			Precision	±0.1	mm
22			speed	200	mm/s
23			Repeat positioning accuracy	±0.05	mm
24		Z-axis	Stroke	2500	mm
25			Precision	±0.1	mm
26			speed	200	mm/s
27			Repeat positioning accuracy	±0.05	mm
28	Main power		7.5		KW
29	power		220V/380V.60HZ.3PHASE(According to customer requirements changes)

---
