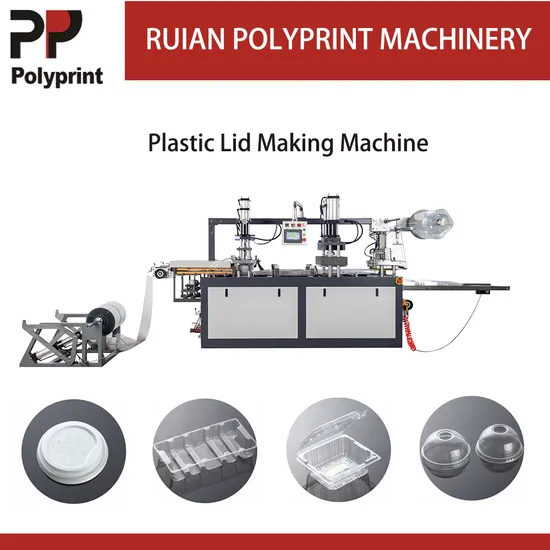

Automatic Plastic Fruits Clamshell Packages Box Tray Paper Coffee Cup Lid Cover Thermoforming Forming Making Machine

US$26,000.00 1 Set (MOQ)

Basic Info.

Model NO.
PPBG-500
Column number
Four Column
Molding Method
Pressing
Automatic Grade
Automatic
Working Speed
10-32 Cycles/Min
Stroke Range
30-340mm
Max. Forming Depth
50mm
Max. Forming Area
480X320mm
Main Motor Power
3kw
Heating Power
12kw
Transport Package
Wooden Pallet
Specification
3 station
Trademark
Polyprint
Origin
China
HS Code
84774090
Production Capacity
10000-15000PCS/Hr

Product Description

Details
Unwinding Station

Heating Station
Forming Station
Punching Station
Stacking Robot
Feature
1. PPBG-500 lid forming machine is a new type one that combines advantages of several types of main forming machines and also brings to more improvement and innovation.
2. With easy operation, calm running, convenient maintenance and stable function.
3. It can produce PVC, PS, PET etc. All kinds of covers.
Technical Parameters
1 Working Speed 10-32 Cycles/min
2 Stroke Range 30-340mm
3 Max. Forming Depth 50mm
4 Max. Forming Area 480×320mm
5 Voltage 380V/50Hz (Three Phase, Four Wires)
6 Main Motor Power 3kw
7 Heating Power 12kw
8 Servo Power 0.75kW
9 Air Pressure 0.5-0.7MPa
8 Air Consumption ≥ 0.22 m3/h
9 Cooling Water Consumption Normal Tap Water Recycle Cooling
10 Noise 75Db
11 Machine Dimension 2760×950×1720mm
12 Weight 1900kg

Our Services
1. Warranty:1year warranty after installation, if the spare parts is broken in the warranty period, we will send a free replacement parts as free.
2. Installation and training: we can send 1-2 engineers to install and set up the machine, but all the charges should be paid by buyer.
3.Quotation: valid for 60days.
Packaging Shipping
Company Information
Polyprint Machinery is one of the first company specialized in manufacturing sheet extruder, thermoforming machine, plastic cup making machine, lid forming machine, cup lip curling machine and cup packing machine since 2006.
