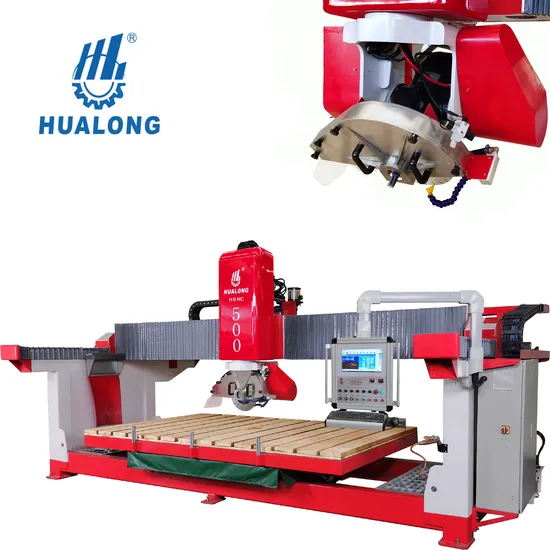

Hualong Hsnc-500 CNC Countertop Cutting Granite Marble Quartz Stone Cutter

Product Description

Full Automatic Intelligent Bridge Stone Cutting Machine HSNC-500 with function of 0°-90°-180°-270° full automatic positioning, chamfering and cutting and countertop drilling and milling, is suitable for processing stone slab cut to size, tombstone, skirtboard etc.

Main Features
1.Blade can tilt 0-90° ,full automatic vertical and horizontal switch cutting repeatedly by one-button, 0°-90°-180°-270° automatic positioning chamfering cutting.

2.Worktable can rotate 0-360° and tilt 0-85°, easy for cutting direction changing and slab loading.
3. Crossbeam and carling adopt Taiwan's Hiwin linear guide to move, which ensure high precision of cutting and long life.

4. Using Siemens PLC control system with and touch-sensitive screen offer friendly and inteligent control.
5. Electric components adopts Siemens or Schneider brand
6. Laser checking and calibration instrument to aid in lining up the cut.
7. Monobloc structural frame is easy for loading, transportation and installation.
8. Countertop Driling and milling, Cutting round and oval shape.

Detailed Images
Linear Guide
Brand: Hiwin
Original: Taiwan, China

Famous products, top quality use on crossbeam and carling for good performance and long lifespan.
Control system
Brand: Siemens Use advanced PLC control system with touch screen to achieve multi programming methods, including manual programming or PC processing operation for powerful functions.
Machine Part Name: Incremental Encoder
Brand: ELCO from Germany

For the determination of head movement in X, Y, Z direction and worktable rotation to ensure position precision without the slightest deviation.

---
