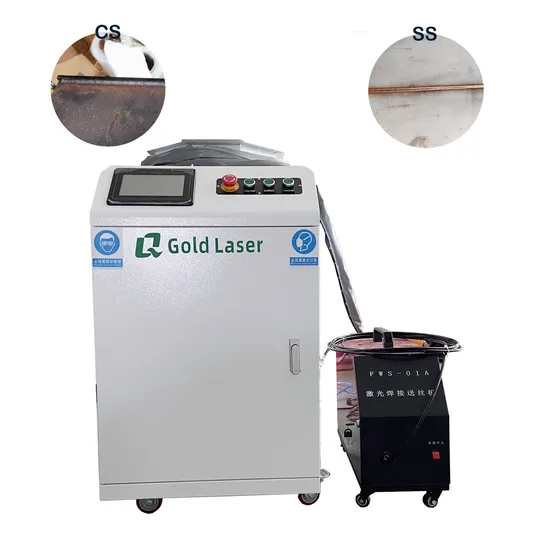

1000W 1500W 2000W 3000W Manual Handheld Stainless Steel Iron Fiber Laser Welding Cutting Cleaning Machine 3 in 1

Product Description

Product Description
Machine Features
Taking high-intensity laser beam as the heat source, handheld fiber laser welding machine has the advantages of simple operation, beautiful welding, fast speed, and less consumables.
The welding speed is 3-10 times that of the traditional argon arc and plasma welding.
The heat affected area is small, less problems will occur, such as deformation, blackening, and traces on the back of the joint construction.
The safety sensor function of the welding head can emit a laser only after touching the metal.
It is conventionally equipped with 10 meters of high-quality optical fiber, which can realize long-distance, flexible welding in large areas and reduce limitations.
The handheld welding gun can weld different angles, shapes or length, less limit to the metal product appearance.
Applicable to most metal materials, such as thin stainless-steel plate, carbon steel plate and galvanized plate.


Product Parameters

Net Size	122*61*98cm
Packing Size	128*68*104cm
Net Weight	157kg
Gross Weight	180kg
1. Power Supply
Input power	1 Phase, 220v±5%, 50Hz
Power rating	8KW
Power Instability	≤±2.5%
2.Laser Source
Laser Wavelength	1080nm±5
Laser Material	Fiber
Maximum Output Power	1000W, 1500W, 2000W
Beam-divergence Angle	≤5mrad
Laser Energy Instability	≤3%
Continuous Working	16h
Pulse Width	0.05-50MS
Single Pulse Energy	45J(750W QCW)
Aiming and Positioning	Red Light Pointer in Welding Head
3.Cooling System
Temp Range	10-35 ºC
Temperature Stability	±2°c
Water Flow	15-25L/min
Fault Protection	Laser power protection and over-temperature protection
Water Purity	>0.5MWcm
4. Optical System
Focus Length	100mm
Spot Diameter	0.4--1.0mm
Focus Range	30mm
Length	10m

Samples
Relating Products
Fiber Laser Cleaning Machine Fiber Laser Marking Machine
FAQ
0: What is your warranty and service after sales?
0.1: 1-year warranty. If there are some parts broken, we will send replaced ones to you, the round shipping cost is on yours. (not included consumables)
0.2: Customer service will be feedback within 2 hours.
0.3: We provide machine lifetime maintenance services even though warranty expires.
0.4: Offered a wide range of hardware and software support after the warranty expires, enjoy free upgrades.
1: Can I get some tests before I decide which to buy?
Yes, please rest assured to let us know your requirements, and we will try our best to help you to find the most suitable machine for you. Sometimes it will be better if you can send the materials to us, especially for some plastics.
2: What is the machine HS CODE?
It is 8456110090.

3: Is the machine very difficult to learn? I am a very new starter in lasers.
Please don't worry, the machine is very easy to operate, even if it is your first laser machine.
(1) We will share the demo software, you can try the basic functions in your PC;
(2) All user manuals, the machine, software and other supportive guidance, will be prepared for you in paper or PDF;
(3) Before the machine leaving for you, we will take complete guidance video to show you the basic steps to start the machine;
(4) Following the machine, there will be a flash driver, which includes the teaching videos, data backup, related files;
(5) Open to negotiate the operation skills, no time limited.

4: Do I need to pay special attention on the machine maintainence?
The advantage of the fiber laser is less maintainence and long service time.
Packaging & Shipping
Machines will be packed by standard procedures and steps.
1: Check details, configuration, components, cleaning condition by Quality Inspection Department;
2: Get all parts and user manuals in preparation;
3: Customize the wooden case by the real dimension and pieces;
4: Clean and adjust the machine main table;
5: Carry out anti-fall and anti-collision protective packaging;
6: Anti-water packaging by plastic film;
7: Pack in the wooden case, get fixed, seal the case, attach protective notices and marks.
We will suggest the most economic and practical transportable method, based on the machine value, weight and dimension.
Customer and Us
Company Profile

Developing with a long-term vision, our mission is to offer innovative services to users with quality service and technology.
We stay tuned to new laser trends and explore user needs, while providing enterprises with premium laser products and professional service.
Our business covers laser marking machines, laser engraving machines, and laser cleaning machines.
Our service tenet is to give every customer a discounted, top-notch industrial laser experience, reducing production costs.

---
