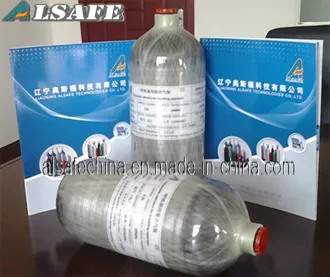

200bar Oxygen Breathing Apparatus Cylinder

Product Description

Alsafe Company professionally manufactures carbon fiber composite HPA cylinder
The Oxygen breathing apparatus cylinder, available with 1.4L to 2.7L water capacity.
Extensively adopted at chemical poisonous and Oxygen-deprieved environment.
Lightweight, extended gas, durable service, design life 15 years.
. Key features of the product:

Items	Overview
Materials consist of	Aluminum inner shell, fully wrapped with high strength carbon fiber, glass fiber and eproxy resin.
Ultra standard of safety	Cycling test 10000 times
Ultra lightweight	5 times lighter than comparable steel product.
Strong and thick wall	Design to ensure anti-pressure strength
Test pressure	1.7 times of service pressure
Service pressure	2900psi, 4500psi
Technical standard	EN, DOT, ISO upon customers' demand
Color of product	Grey
Variety of accessories	Fitted upon customers' demand.
Application	Firefighting, paintball and pcp sports, SCBA etc.
Life-span of product	15 years
Recertification period	5 years
Delivery time	6 days to 30 days upon deposit. Shipping empty.

. The full set of Oxygen breathing apparatus:
.Techical data of 200bar carbon fiber tank Oxygen breathing apparatus:

Specification	Outer Diameter	Water Volume	Length	Weight	Working Presure
	(mm)	(litre)	(mm)	(kg)	(bar)
CRPIII-115-1.4-20-T	115	1.4	261	1.5	200
CRPIII-115-1.6-20-T	115	1.6	270	1.6	200
CRPIII-128-2.3-20-T	128	2.3	292	1.7	200
CRPIII-140-2.3-20-T	140	2.3	268	1.8	200
CRPIII-128-2.4-20-T	128	2.4	302	1.8	200
CRPIII-135-2.4-20-T	135	2.4	285	1.7	200
CRPIII-128-2.5-20-T	128	2.5	312	1.9	200
CRPIII-135-2.5-20-T	135	2.5	296	1.9	200
CRPIII-132-2.6-20-T	132	2.6	308	1.9	200
CRPIII-132-2.7-20-T	132	2.7	310	1.9	200

---
