Agricutural 7c Series Trailers 1-3 Tons Tractor Trailer

Product Description

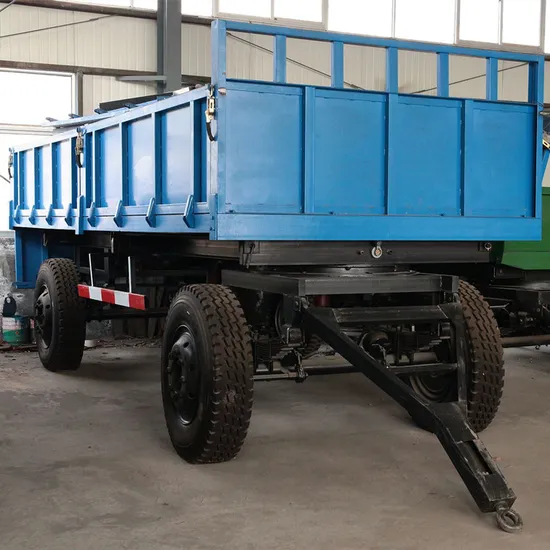

7C Series Farm Trailer
7C series trailer is suitable to be used for plain area,mountain area,swamp and hills,farmland and highway transportation etc, different area environment,trailers of different forms match the tractors of different types.On basis of fundamental type,we have developed the hydraulic pressure self-discharging trailer,improved efficiency.The trailers that our company produced are composed of steel entirely,the appearance is exquisitely,artistic and unaffected,the structure is rational and compacted,sturdy and durable,be able to adjust the height,the machines are advantageous and reliable,they are good assistant of mountain area friends.
Main specification:

Type	7CX-3.0	7CX-4.0	7CX-5.0	7CX-6.0	7CX-7.0	7CX-9.0	7CX-15
Fixed load (kg)	3000	4000	5000	6000	7000	9000	15000
Matched power (hp)	25-50	30-50	50-72	50-80	50-80	50-90	64-120
Overall Dimension L×W×H (cm)	418×168×208	500×200×210	560×210×228	580×210×228	600×210×228	650×220×238	800×230×252
Weight (kg)	1450	1650	2100	2200	2450	2650	4000
Volume (L)	2580	3330	4000	4500	5300	6800	10500
Height of loading (mm)	1030	1200	1300	1200	1200	1200	1300
Height of traction (mm)	660	750	750	750	820	820	820
No.of tyre	4	4	4	4	4	4	8
Distance between wheel (mm)	1380	1750	1880	1880	1880	1980	1980
Distance between axis (mm)	1640	1640	1640	1830	1830	1830	1830
Specification of tyre	6.50-16-12	7.50-16-12	8.25-16-12	9.00-16-14	9.00-20-16	9.00-20-16	9.00-20-16
Way of braking	air or hydraulic braking		air braking or air cutting braking
Angle of tipping	45·	45·	45·	45·	45·	45·	45·
Direction of tipping	towards the left or right

If you need the 7C Series Farm Trailer ,please contact me:

---
