62m Heavy Duty Concrete Pump Truck Sym5462thbfs 620c-10A with Top Brand Chassis

US$310,000.00
1 Piece
US$300,000.00
2+ Pieces

Basic Info.

Model NO.
SYM5462THBFS 620C-10A
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
180m²/h
Feeding Height
1400mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Red
Max. Vertical Conveying Distance
62m
Weight
44000 Kg
Dimension(L*W*H)
14580mm*2550mm*4000mm
Section Numbers
6
Maximum Theorical Pressure on Concrete
32 MPa
Transport Package
Nude
Specification
11990*2500*3900 mm
Trademark
RICHMCHN
Origin
China
Production Capacity
100unit/Year

Packaging & Delivery

Package Size
1230.00cm * 270.00cm * 420.00cm
Package Gross Weight
44500.000kg

Product Description

Products Description

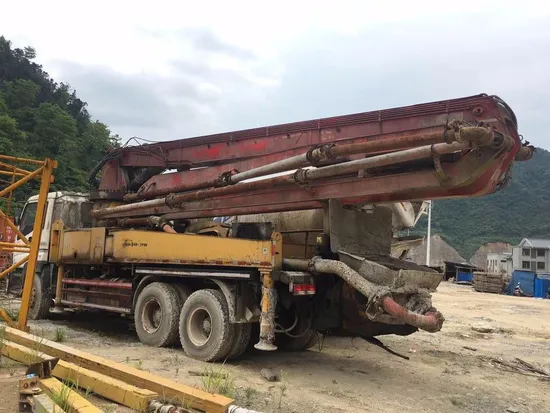

Sanny pump truck on Benz 62m 5 axles
A smart boom, a large boost
Highly reliable
Strong pumping
Extremely economical
Ultimate user experience
Product Paramenters
Boom
 Maximum vertical reach
 62m

Maximum horizontal reach
 51m

Maximum depth reach
 36.6m

Minimum unfolding height
 15.2m

Section numbers
 6

Boom type
 Z

Pipeline diameter
 125mm
Pump
 Maximum theorical output
 180 m3/h

Maximum theorical pressure on concrete
 32 Mpa

Concrete cylinders (diam. × stroke)
 260mm x 1900mm

Hydraulic circuit
 Open
Chassis
 Chassis brand
 Benz
