Door Frame Metal Machine by Roll Forming

Product Description

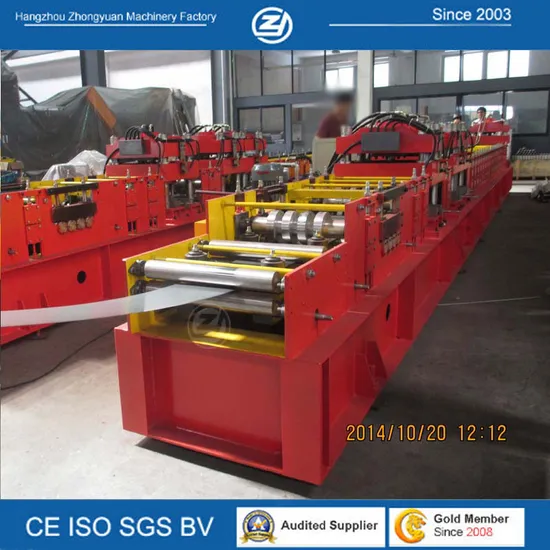

Door Frame Metal Machine by Roll Forming

Our Advantages

Why choose this roll forming machine?
This machine was design by 15 years experienceD R&D members.
1. Manufacturing roll forming machine since 2003
2. With ISO,SGS,BV and CE certificate
3. 1 year quality warranty
4. Introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.
5. Technician can be sent to your factory to install the machine and train your workers
6. Export to more than 20 countries.

Machine material
1. Electric elements: Mitsubishi PLC & transducer from Japan.
2. Anti-rust roller: High grade No. 45 forged steel. Plated with 0.05mm hard chrome
3. Well resisting active shaft: High grade No. 45 carbon wrought steel.
4. Cutter blade: Cr12 mould steel with quenched treatment
5. Precision: shafts are tooled by grinding machine at least twice. Rollers are CNC processed.
Product Parameters

Door Frame Metal Machine by Roll Forming
Item		Specification
Material	Type	galvanized steel sheet
	Thickness(mm)	0.8 -1.2
	Yield strength(mpa)	235 -345
Roller material		45#Chrome steel
Forming speed(m/min)		About 10m/min
Speed adjusting mode		AC Frequency
Roller drive		Decelerating motor + Chain drive
Cutting mode		Hydraulic cutting
Cutter material		Cr12 mold steel
Length measurement		Encoder
Control mode		Mitsubishi PLC
Operating mode		Button + Mitsubishi Touch screen
Main motor power(kw)		15 KW (Depend on final design)
Hydraulic station power		5.5 K W (Depend on final design)
Total power(kw)		20.5 KW
Uncoiler's loading capacity		Max. Capacity: 3000kgs
Machine weight		About 7000kgs
Machine size		About 8*1.3*1.5m (Depend on final design)
Components of machine:
Decoiler		1set
Feeding & guiding device		1set
Main roll forming machine		1set
Punching equipment		1set
Hydraulic cutting system		1set
PLC Controlling system		1set
Run out table		1set
Process flow: Decoiling the sheet → Leveling sheet→Punching → Roll forming→ Measure length and cutting→ the Product to the supporter

Packing:
1. One 40feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.

Delivery : about 70 days after received advaced payment
Company Profile

1. Customize roll forming machines since 2003.
2. Certificate: ISO 9001, CE
3. Mitsubishi PLC controller and transducer from Japan
4.12 months warranty, lifetime technical support
5. Capacity: 12-15 sets/month
6. Delivery: In only 5-8 weeks for urgent order
7. Company occupies 6650, in which 5650 for workshops
8. Have our own tool center. 12 sets CNC machines.
9. Third party inspection: Bureau Veritas, SGS. Can provide assessment report.
10. Machine original brand: Zhongyuan
11. Set up business relationship with companies in more than 40 countries
12.Technician overseas installing and training available
13.Professional online service team, any email or message will be replied within 8 hours.
FAQ
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).

---
