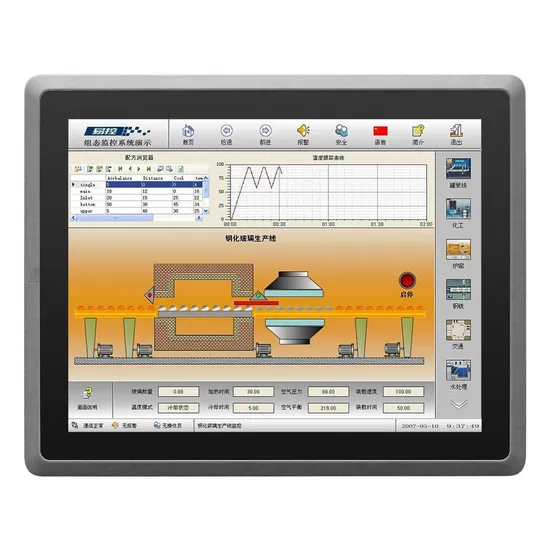

Product Description All aluminum embedded VESA wifi rj45 fanless enclosure industrial tablet touch screen industrial pc panel 12v
| Senke Industrial PC | SK-K10DR | SK-K12DR | SK-K15DR | SK-K17DR | SK-K19DR |
| Motherboard | Confirguration | Intel®4th generation Pentium 3558U , DDR3-4G,SSD-64G |
| Interface | WiFi,3/4G module | 802.11b/g/n(optional),Support 3g/4g (optional) |
| HDMI | 1*HDMI output |
| USB | 4*USB 3.0 |
| Network | 2*RJ45 with 1000 Base-T |
| Com | com(RS485)*2 |
| Power supply | 1*DC lock phoenix terminal,Support 9-36V |
| Audio output | 1*3.5mm audio |
| Other | 8*GPIO (optional) |
| Display | Screen type | 10.4 LED | 12.1 LED | 15 LED | 17 LED | 19 LED |
| Resolution | 1024*768 | 1024*768 | 1024*768 | 1280*1024 | 1280*1024 |
| Size(mm) | 210.4(W)×157.8(H) | 245.7(w)×184.3(H) | 304.1(W)×228.1(H) | 376.3(W)×301.1(H) | 376.3(W)×301.1(H) |
| Contrast ratio | 500:1 | 500:1 | 700:1 | 900:1 | 900:1 |
| Brightness | 200cdm2 | 200cdm2 | 250cdm2 | 250cdm2 | 250cdm2 |
| Screen ratio | 4:3 | 4:3 | 4:3 | 5:04 | 5:4 |
| Structure | Front and back cover | Aluminum |
| Craft | Glass frame paste, aluminum die casting |
| Color | Black,grey |
| Heat dissipasion | Fanless aluminum fin heat dissipation |
| Panel indicator light | Power state, hard disk state |
| Whole size | 281*228*56.8mm | 315*254*56.8mm | 304*2941*55.3mm | 404*341*56.3mm | 445*3756*59.3mm |
| Touch screen | Type | Projected capacitive touch screen |
| Touch point | 10 point touch |
| Physical Resolution | 4096x4096 |
| Response time | <5ms |
| Accuracy | <2.5mm |
| Transparency | ≥90% |
| Protection | The surface is coated with 1:1 PVC protective film |
| Others | Working environment | 20ºC~ 70ºC;Humidity:10%~ 90% |
| Storage environment | Temperature:-40ºC~80ºC ; Humidity:10%~90% |
| Installation ways | Embedded,VESA100*100mm |
| Power consumption | 24W | 25W | 33W | 34W | 37W |
| Accessories | Manual | User Manual,certificate of qualification,warranty card |
| Bracket | wall mounted bracket,embedded bracket,desktop bracket(optional) |
| Adapter | Power adapter |
