Product Details
Product Description
Product Description

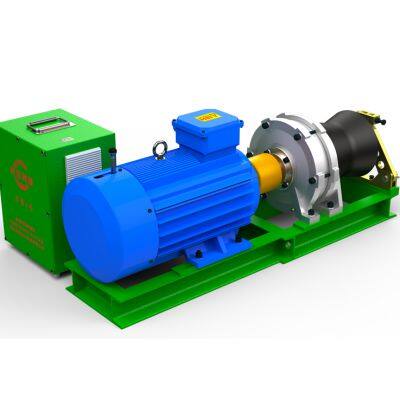

Product Name: Lijian 4 Cable Winch
Model: Lijian 4
Product Features:
Strong Pulling Force: Maximum pulling force of 40KN, suitable for high-intensity job requirements.
Efficient Operation: Speed of 0-20m/min, equipped with a 5.5kw high-quality copper-core motor, ensuring stable operation with strong pulling force and high speed.
Intelligent Control: Supports control panel and remote control operation, with stepless speed adjustment for flexible and convenient operation.
Safety Protection: Motor features automatic braking upon power failure, preventing accidents and ensuring job safety.
Durable Design: Reinforced drum is pressure-resistant, wear-resistant, and deformation-free; shaft drive is impact-resistant and vibration-resistant, with high transmission efficiency and no overheating or slipping.
Efficient Transmission: High-strength gearbox and gear set design ensure smooth operation without jamming, extending equipment service life.
Multi-functional Operation: Supports 4 adjustable gears and 3 operation modes (neutral, forward reverse, and reverse reverse), adaptable to various job scenarios.
Separate Control Box: Easy to move and operate, improving job flexibility.
Compact Design: Dimensions of 115x30x40cm, weight of 170kg, compact structure for easy transportation and installation.
Application Scenarios:
Suitable for cable laying and traction in industries such as power, construction, and telecommunications.
Ideal for high-intensity and high-frequency working environments, such as large-scale construction sites.
Multi-functional operation modes adapt to various complex working conditions, improving job efficiency.
Technical Parameters:
Model: Lijian 4
Maximum Pulling Force: 40KN
Speed: 0-20m/min
Power: 5.5kw
Power Supply: AC380V
Speed Adjustment: Stepless speed control
Control Modes: Control panel + remote control
Motor Configuration: Automatic braking upon power failure
Dimensions: 115x30x40cm
Weight: 170kg
Product Advantages:
Strong pulling force, high speed, and stable operation, suitable for high-intensity job requirements.
Automatic braking upon power failure ensures job safety and prevents accidents.
Reinforced drum and shaft drive design are pressure-resistant, wear-resistant, impact-resistant, and vibration-resistant, extending equipment life.
High-strength gearbox and gear set ensure smooth operation without jamming and high transmission efficiency.
4 adjustable gears and 3 operation modes adapt to various job scenarios, offering flexible and convenient operation.
Separate control box for easy movement and operation, improving job efficiency.
>>
