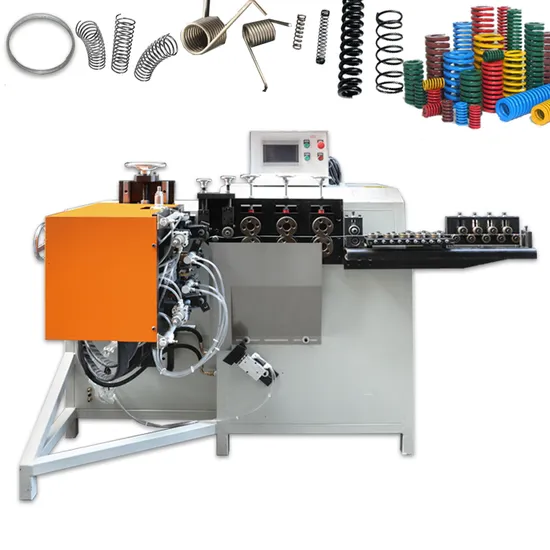

Fully Automatic CNC Spring Winding Machine Can Produce Stainless Steel Rings

Product Description

Product Description
Specification

item	Value
Place of Origin	China
Warranty	1 Year
Key Selling Points	High Productivity
Applicable Industries	Construction works , Building Material Shops, Machinery Repair Shops, Manufacturing Plant
Showroom Location	Turkey, United States, Mexico
Servo motor	2.6KW/3000R
Hydraulic motor	2.2KW
Feeding speed	35m/min
Productivity	10-20 pcs/min
Ring diameter range	25mm-550mm
Wire range	2-6 mm(Low carbon steel,stainless steel,electroplate)
Ring diameter error	+-0.5mm
Length error	+-0.2mm
Welding power	50KVA/80 intermediate frequency
Welding loading rate	50%
Compress air MPA	0.6
Cooling water flow	50L/min
Size	1950*1450*1500(MM)
Weight	800KG

Packing & Delivery
Wooden large box with screw
Makeable product
Company Profile
Foshan Jinchun Industrial Automation Technology Co., Ltd., established in 1998, is a technology-intensive industrial company specializing in the development of welding technology and equipment research and manufacturing.
FAQ
1. who are we?
Foshan Jinchun Industrial Automation Technology Co., Ltd., established in 1998, is a technology-intensive industrial company
specializing in the development of welding technology and equipment research and manufacturing.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
2D Wire bending machine,3D wire bending machine,ring making butt welding machine,straightening machine,welding machine
4. why should you buy from us not from other suppliers?
Efficient communication Strong customization ability, Short lead time Stable machine performance Excellent after-sales service
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Cash;
Language Spoken:English,Chinese

---
