LK Varia 200 Ton Plastic Injection Molding Machine

Product Description

Brief Introduction
LK group specializes in the design manufacture and sales of die casting machines, high precision injection molding machines, CNC machine centers, and industrial integrated control systems. Our market share of die casting machines is over 60%, the injection molding machine ranks among the top 5 in China.We have 12 production bases worldwide, 10 in domestic China, 1 in Taiwan, and 1 acquired company in Italy. Our injection molding machine centers are Zhongshan in Guangdong and Ningbo in Zhejiang. There are over 60 sales and service centers in the world, and our high-quality after-sales service and 24-hour prompt response system provide customs all-around fully coverage customer service.
Ultra-large turntable with 2-3 position(option), suitable for different multi-material plastic part. LK injection molding machines can produce plastic parts combined with 1-3 colors/materials which are commonly found in automotive lighting, internal trim, electrical appliances, household appliances, and houseware. It integrates the servo energy-saving concept and control algorithm.
Varia series 130 ton - 2000 ton
Key features
1. 2/3 components high precision injection
2. Linear rails on injection unit, less resistance
3. Single injection cylinder
4. Special design in turning table rotating without contacting the platen
5. Duel ejector cylinder
6. Servo control system, highly responsive, close loop control
Use of application
Automotive, Home Appliance, Glasses Product, Household Product
Technical Parameter List

	ITEM	UNIT	VA200
			Injection Unit 1			Injection Unit 2
			A	B	C	A			B	C
Injection Unit	Shot Weight	g	116	158	206	78			90	123
	Screw Diameter	mm	30	35	40	28			30	35
	Injection Volume	cm3	127	173	226	86			99	135
	Injection Pressure	MPa	280	206	158	246			214	158
	Screw L/D Ratio	L/D	24	24	21	24.8			23	19.8
	Injection Rate	cm3/s	75	102	133	76			87	118
	Screw Speed	r/min	0~270			0~240
	Hopper Capacity	L	30			30
	Distance Between Barrel Centers	L	450(500)
Clamping Part	Locking Force	kN	2000
	Die Height (Min.-Max.)	mm	180-510
	Max.Daylight	mm	920
	Space Between Tie Bars	mm	832×505
	Ejector Stroke	mm	110
	Ejector Force	kN	2×33
	Rotary Table Diameter	mm	900
	Bearing Capacity of Rotary Table	kg	1500
Other	Motor Capacity	kW	11.6					8.6
	Max Working Pressure	MPa	17.5
	Oil Tank Capacity	L	320
	Heating Capacity	kW	12.5				9
	Machine Dimensions (L×W×H)	mm	5955×1820×2010

Products Display
Showroom Review

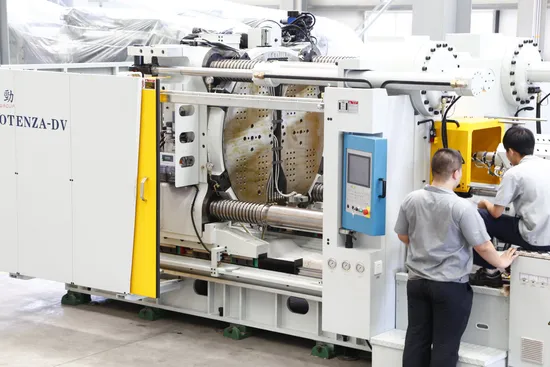

Factory Review

---
