US$4,200.00-4,400.00
|
1 Piece
(MOQ)
|
Basic Info.
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Certification
CE, ISO9001: 2000
Overall Dimension( Lxwxh)
2770X896X1490 mm
Max. Digging Depth
1650 mm
Max. Digging Height
2610 mm
Color
Yellow, Red, Blue or Other Color You Like
Transport Package
Wooden Package
Specification
0.8 ton, 4.5cbm
Trademark
XINIU/RHINOCEROS
Production Capacity
300 Units/Month
Product Description
Rhinoceros mini excavator dealers super micro digger for farm
Can be with EPA & Euro V engine,meet different market requirement...
Rhinoceros Main mini excavator models information :
All can with EPA 3 engine and Euro V engine
Mini excavator Rhinoceros xn08 shows :
Rhinoceros xn08 mini crawler excavator information:
·Model: XN08:Machine weight: 880kg, operation weight:1000kg,0.025 cbm bucket, Max. digging deapth:1400mm;1877x896x1990 mm
National III engine :7.6kw,Koop engine ,single cylinder,air cooling;
Euro V engine :7 kw,Koop engine ,single cylinder,air cooling;
EPA 3 engine:Briggs & Stratton engine,XR2100,13hp
·Beautiful appearance,high configuration,superior performance,low fuel consumption,wide operating range.
·Multipurpose: farming,fertilization in gardern,civil engineering,indoor construction,vegetable greenhouse,campus greening of municipal departments,digging the hole for tree planting of Fruit-land Nurseries concrete pavement crushing,sand-gravel material mixing, construction work in the narrow place etc...

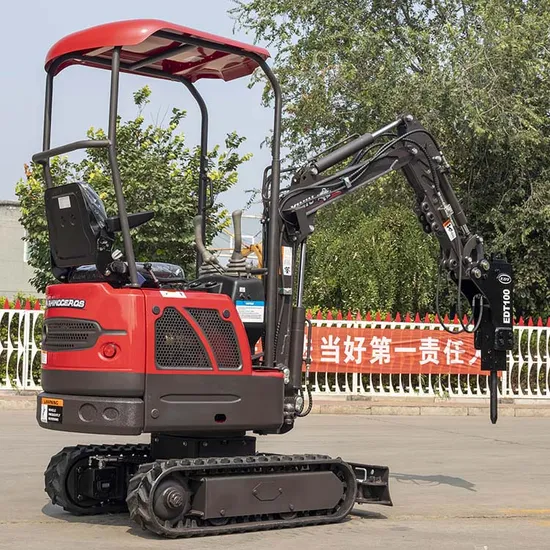

Rhinoceros xn08 mini crawler excavator display:
Accessories for Rhinoceros xn08 mini crawler excavator:
·Optional accessories: Auger, Wood Grab, Roof, Ripper, Rake, 200mm Narrow Bucket, 380mm Standard Bucket, 500mm Leveling Bucket ,800mm leveling bucket,600mm titling bucket,hammer,auger....
Rhinoceros xn08 mini crawler excavator Specification:
Type | XN08 |
Net weight | 880KG |
Bucket capacity | 0.025 M3 |
Overall height | 1330mm |
Overall length | 2550mm |
Maximum dig radius | 2650mm |
Dig radius at ground line | 2400mm |
Maximum dig depth | 1400mm |
Dump height | 1750mm |
Vertical straight wall dig depth | 1320mm |
Lift above Dozer | 325mm |
Depth of dozer blade | 175mm |
Counter weight turning radius | 733mm |
Arm digging force | 4.8kn |
Bucket digging force | 9.2kn |
Engine model | Koop |
Cooling | Air-cooling |
System relief pressure-Standard | 16MPa |
Chinese mini digger XN08 color have yellow,orange ,red ,bule ,green....also can be what you want if you order more than 12 units.
Rhinoceros Service:
Packaging& Shipping:
If less 4 units,with steel frame and wooden case- LCL shipping
If 6 units,loading in a 20ft container-none package but we will fix well
If 12-13 units,loading in a 40HQ container
Company Information:
Our factory is a professional manufacturer of construction machinery, engineering machinery and trucks in china, the machines cover wheel excavator 5-15 ton, mini and big crawler excavator 6 -45 ton , backhoe loader 5-7 ton, wheel loader 0.5-5ton, concrete pump 21-55 meter, small trucks and mini dump. So i am confident there must be one model can meet to your needs. Most of the machines are with CE, TUV certificate,company ISO certificate. Please send me message for more information.
Rhinoceros Main products of excavator:
Mini excavator :0.8T XN08 ,1.2T XN12,1.6T XN16,1.8T XN18,2T XN20,2.5T XN25,3.5T XN35,4T XN45
Crawler excavator :6.8T X80-E
Wheel excavator :6T XN75B XN75C , 7T XN85-9X XN85L , 8T XN90Y, 9T XN95Y,10T XN100
Wheel-crawler excavator :8T X8,9T X9
FAQ:
What is the machIne advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers,
Each machine is carefully tested before send to customer.
Warranty time for 1 year or 1200 working hours.
How many units can be put in container?
A: 6 units can be in a 20ft container, 12 units can be in a 40HQ container.
None packing,and will fixed with wire ropes.
Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?
A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL,wooden box;if 4 unit or more than 4 units suggest used 20ft container.
If do not have trailer,the wooden box dimension is 2.8x1.12x1.4m ,about 4.3m3;if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg
The warranty of the machine and how will you carry out the service?
A: Warranty period: 1 years or1200 working hours manufacturers warranty whichever comes first. One line service is provided 24 hours every day, there are technicians ready to serve for you, they are well trained, they can be assigned to your site and serve for you.
Spare parts supply:
A: Spare parts is available all the time.
A spare parts kit for free will be sent with each machine, which can be used for 1 year.
There are also a spare parts list recommended for 2 years, you can choose and order some parts sent with machine in advance or we recommend the list for you.
Thank you for your visting,please feel free time send me message for more information.
>>
