HUAWEI IdeaHub Board

Product Description

Product Description

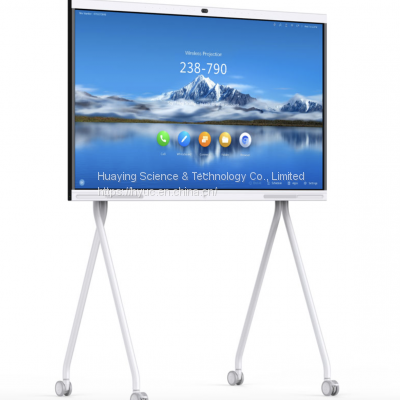

HUAWEI IdeaHub Board, a 4K soft light screen and smart board designed for collaboration and creation: a space where fresh thinking and new ideas can be brought to life.
Product Specifications
IdeaHub Board Pro 65-inch
Color
Color
Jade white | Cadet gray
Screen
Optical anti-blue light
Supported
Refresh rate
60 Hz
Color gamut
90% NTSC (typical)
Viewing angle
178° horizontal, 178° vertical
Multi-touch
20
Resolution
4K (3840 × 2160 px)
Backlight type
DLED
Brightness
400 cd/m2
Aspect ratio
16:9
Glass hardness
7H (Mohs)
Screen lamination
Zero-gap bonding
Automatic brightness adjustment
√
Anti-glare
√
Writing
Precision
±1 mm
Writing Latency
35 ms
Whiteboard saving mode
QR code scanning, email, USB flash drive, and local
Smart writing
Support for recognition of English Chinese, and 11 graphics
Erasing by hand gestures
√
Projection
Projection mode
App free projection, DLNA, wired projection
Reverse control
√
Projection effect
4k 30 fps
Processor
CPU
4Core @ 1.5G
RAM
8 GB
Flash
64 GB
Operating System
Operating System
Android 9.0 with optional Windows 10
Loudspeaker
Frequency domain
20 Hz–20 kHz
Quantity
4
Stereo
√
Sound pickup distance
8 m
Microphone
Sound pickup angle
180° front view
Quantity
2
Frequency domain
20 Hz–20 kHz
Enhanced function
Echo cancellation, noise suppression, automatic gain control
External microphone
√
Camera
Camera
No built-in camera, optional external camera
Intelligent Capabilities
Intelligent capabilities
Voice assistant, smart manager, smart writing assistant
Language
Supported
Simplified Chinese, Traditional Chinese, English, Spanish (European), French, Russian, Japanese, German, Portuguese (Brazilian), Italian
Terminal interface
Video input
2 x HDMI, 1 x USB Type-C port, 1 x optional OPS input
Video output
1 x built-in screen, 1 x HDMI
Audio input
1 x built-in microphone array, 1 x 3.5 mm LINE IN, 1 x optional OPS audio input, 2 x HDMI audio input
Audio output
4 x built-in speaker, 1 x 3.5 mm LINE OUT, 1 x HDMI
Other ports
2 x USB A ports, 1 x USB B port, and 1 x RJ45 port
Voltage
100–240 V AC
Electrical characteristics
Frequency
50–60 Hz
Maximum power
<350 W (65”)
Authentication Information
Authentication Information
Low-blue light certification, CCRC blue standard certification for information security, CCC, CQC energy saving certification, CE (RoHS, REACH, and WEEE), VCCI, and wireless model approval
IdeaHub Board Pro 86-inch
Jade white | Cadet gray
Supported
60 Hz
90% NTSC (typical)
178° horizontal, 178° vertical
20
4K (3840 × 2160 px)
DLED
400 cd/m2
16:9
7H (Mohs)
Zero-gap bonding
√
√
±1 mm
35 ms
QR code scanning, email, USB flash drive, and local
Support for recognition of English Chinese, and 11 graphics
√
App free projection, DLNA, wired projection
√
4k 30 fps
4Core @ 1.5G
8 GB
64 GB
Android 9.0 with optional Windows 10
20 Hz–20 kHz
4
√
8 m
180° front view
2
20 Hz–20 kHz
Echo cancellation, noise suppression, automatic gain control
√
No built-in camera, optional external camera
Voice assistant, smart manager, smart writing assistant
Simplified Chinese, Traditional Chinese, English, Spanish (European), French, Russian, Japanese, German, Portuguese (Brazilian), Italian
2 x HDMI, 1 x USB Type-C port, 1 x optional OPS input
1 x built-in screen, 1 x HDMI
1 x built-in microphone array, 1 x 3.5 mm LINE IN, 1 x optional OPS audio input, 2 x HDMI audio input
4 x built-in speaker, 1 x 3.5 mm LINE OUT, 1 x HDMI
2 x USB A ports, 1 x USB B port, and 1 x RJ45 port
100–240 V AC
50–60 Hz
<450 W (86”)
Low-blue light certification, CCRC blue standard certification for information security, CCC, CQC energy saving certification, CE (RoHS, REACH, and WEEE), VCCI, and wireless model approval
Screen size
65 inches
Boxed dimensions (W x H x D)
1650 x 1050 x 210 mm
Product dimensions (W x H x D)
1486.5 x 908.6 x 89.1 mm
Gross weight
53.7 kg
Net weight
42.4 kg
86 inches
2090 x 1375 x 280 mm
1963.8 x 1176.1 x 95 mm
97.8 kg
76.5 kg
*The actual size may vary depending on the product configuration and manufacturing process.

---
