US$20,000.00-25,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
The Maximum Load Capacity
350
Specification
2300*2000*2300
Production Capacity
100pieces/Year
Product Description

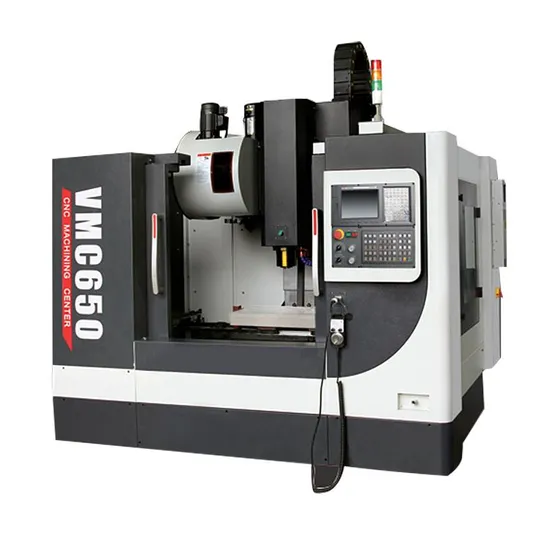

Application VMC is suitable for the mechanical procedding and mold making.
And it can adapt to the processing requirment from rough machining to finish machining.
It can also finish many working procedures like milling,drilling,tapping,boring etc. Features
Hot Sale VNC650
1.High quality resin sand 2.Tsiwan spindle 3.Taiwan ball screw and locking nut 4.Taiwan pressure cylinder 5.Japan NSK bearing 6.Germany R+W coupling 7.Automatic lubrication system 8.Chip conveyor at optional
Technical Parameter:
| Specification | Units | VMC650 |
| Table size | mm | 900*400 |
| the maximum load capacity | kg | 350 |
| Distance between spindle center and column | mm | 476 |
| Distance between spindle end face and worktable surface | mm | 100-600 |
| spindle speed | r/min | 8000 |
| spindle taper | type | BT40 |
| Spindle motor power | kw | 5.5/7.5 |
| Max.tool length | mm | 250/300 |
| Maximum tool weight | kg | 7 |
| Electric capacity | KVA | 10 |
| X/Y/Z Max. feed speed | mm/min | 10000 |
| X/Y/Z Max. Rapid traverse | m/min | 32/32/30 |
| T slot | mm | 3-18*125 |
| Machine dimensions(L*W*H) | mm | 2300*2000*2300 |
| Weight | kg | 4500 |
Details Picture:
Company Profile:
Packing and Dclivery
FAQ
1.Q: Which trade term I can choose?
A: You can choose FOB,FCA
2.Q: How can I get quotation from you?
A: You can make the inquiry online on made-in-china, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 24 hours on work days, and within 48 hours on holiday.
3.Q: how can I make the payment?
A: We can make the deal on made-in-china online platform, you can pay by T/T . You can also pay to my company business bank account.
5.Q:What is your delivery time ?
A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
We want to know:
Please tell us your specific purchasing requirements, so that we can make specific quotations.
>>
