Glass Tube CO2 Laser Engraving Cutting Machine for Nonmetal Materials 9060/1280/1390/1325

Product Description

Product Description

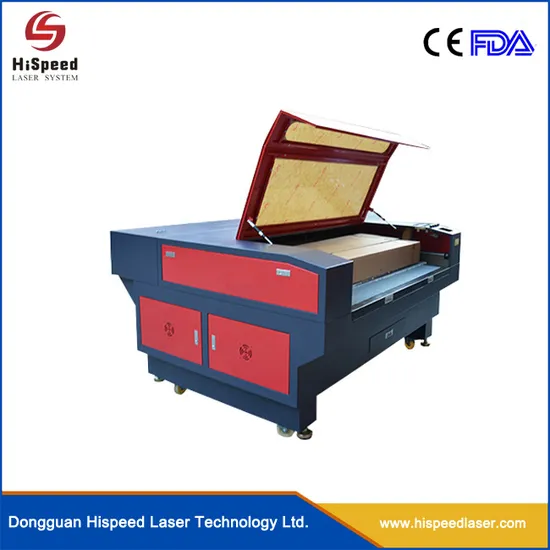

Glass Tube CO2 Laser Engraving Cutting Machine For Nonmetal Materials
80W/100W/150W 1390/1280/1480/1610/1810/1325/1625/1825 Single Head / Double Head
Product Feature CO2 laser engraving and cutting machine series adopts international advanced DSP control technology, they have the high speed, high cutting accuracy and high stability, the quality and price ratio is very high. The main system can be commanded by U-disk without PC connection. It has the functions of imitative cutting, color separating cutting, non-stop cutting once off power, etc.
Mechanical Design
This series of machines has a precise mechanical structure and is equipped with a sturdy and stable frame. It adopts high-speed outer guide rail, imported stepping motor and driver, which improves the precision of mechanical transmission.
Optical Design
Adopting the high quality lens and mirrors on optical system to ensure long lifetime of laser tube and high cutting efficiency
Application & Sample

Industry	Laserable Materials
Woodworking		Engrave	Cut
Textile Cutting	Wood	√	√
Industrial Prototyping	Acrylic	√	√
Industrial Marking	Glass	√
Sign making	MDF	√	√
Medical Part Marking	Foam	√	√
Aerospace	Delrin	√	√
Architectural Modeling	Cloth	√	√
Specialty Advertising	Leather	√	√
Plastics Fabricating	Granite /Marble	√
Flexo	Matte board	√	√
Point of Purchase	Melamine	√	√
Rubber Stamps	Paper	√	√
Picture Framing	Mylar	√	√
Gift Manufacturing	Press board	√	√
Bar Coding	Rubber	√	√
Engraving	Wood Veneer	√	√
Gasket Cutting	Fiberglass	√	√
Puzzles	Painted Metals	√	√
Cabinetry	Tile	√
Awards & Recognition	Plastic	√	√
Personalized Pens	Cork	√	√
Door Pulls	Corian	√	√
Cut Scroll Patterns	Anodized Aluminum	√
Inlays & Overlays	Ceramic	√
Fraternity Paddles	Brass * * * *	Fiber laser marker	Fiber laser cutter
Music Boxes	Stainless Steel	Fiber laser marker	Fiber laser cutter
Light Switch Plates
Jewelry Boxes
Parts Marking
Router Templates
Desk Sets
Scrap Booking
Photo Albums
Jewelry
Crafts

Product Parameters

Power	60W,80W,100W,130W,150W
Engraving Area	640/960/1080/1280/1390/1610/1810/1325/1625/1825
Engraving Speed	0-64m/m
Cutting Speed	0-36m/m
Engraving Depth	0.5mm~2.5mm
Moving System	CNC control system
Cooling Mode	Water - cooling and protection system
Overall Power Consumption	≤1250W
Repeated Accuracy	±0.05mm
Working Voltage	220± 10% 50Hz (60Hz)
Environment Temperature	0°C~45°C
Environment Humidity	5%-95%
Controlling Software	Ruida Control Card
Ruida Control Card	CAD, MP, JPG, PNG, TIF, PCX, TAG, IOO, GIF, PLT

Advantages
1,High Precision and fast speed High accuracy stepper motors and drivers. Belt transmission USA imported lens and mirrors:High transmittance, good focusing, reflecting effect. Adopts the International standard linear guide rail, machine running more smoothly and accurately.
2,Easy to use and safety limit switch for safe processing.Emergency stop-turn off machine immediately The PHCAD software compatible with CorelDraw, AutoCAD etc. Water protection-Laser will stop working If water cooling system doesn't working normally. LCD control panel in English, convenience of operation control. Machine Parts Detail
1. Laser tube-SP Laser tube
SP haser tube with longer life 10000H.
2. Imported Mirors & lens
For perfect engaving and cutting flects, Reflector lens and focus mirrors
(imported from USA).
Refleet and focus laser beam, anti-high temperature, anti-abrasion, ensure
highar cutting ability compared with laser power machine
3. Leadshine stepper Motor
Stable sepper motor with reducr improves the cuting prcision, high quality.
4. Air pump
The air pump blows air to the material being cut, cools down the material
tempcrature, and protcts it from fire and burning.
It cnsures nice cuting edge.
5. Water Chiller
the cooling recycle system is selected water ciller for cooling the laser source
and cansures the machines working efficiently
Refrigcration Compressor has watar temprature contolling.
Constant temperature water cooling system, warning system, ensure laser to
work consecutively and safety, prolong lifetime of laser tube.
6. Exhaust fan
It absorbs away the engraving or cutting dusts and smoke.
It is absolutely recommended to protect the optical parts and your employees.
7. USB offline control system
USB can let your laser machine work without computer, very convenient.
8.Tool box.
A tool box with many tools will come with the laser machine.
9. Honeycomb or blade worktable
Black oxidized Aluminum alloy tool section are efficient to decrease the laser's
reflecting, suitable for hard materials, such as wood, acrylic, etc.
Aluminum blade table is for processing acrylic, wood and other hard materials;
Honeycomb table is for processing cloth, leather and other soft materials.
10. Professional controlling system
Has function of optimize cutting path automatically, it can arrange your different
cutting designs, consecutively cut all curves fast.
11.Laser Software: DSP control system SoftwareSupport Coreldraw/Autocad It supports multiple graphic formats, such as PLT / DXF / BMP / JPG / GIF / PGN / TIF and so on. This machine is equipped with DSP Control System for CorelDraw/AutoCAD and other advance software.
Company Profile
Hispeed Laser Technology Ltd. Laser marking machine manufacturer is committed to producing and supplying premium laser marking machines and offering specialized laser marking solutions.
Hispeed laser marking machines are beyond all praise and have quickly taken over the market by virtue of their superior quality and advanced laser marking system. Our machines have exported to more than 60 countries of various industries and manufacturers worldwide, delivering the highest quality laser marking machines with unsurpassed care and customer service.
Warranty & After-Sale Service

All the Machines Will be fully tested before Shipment and Free Training for operator. Laser tube 8000-10000hours' Working time.Laser tube warranty 6 month for customer.(date of manufacture) The Whole Machine guarantee for 1 Year except Consumble parts. 24 hours' technical Support-- Email, Telephone, Video Or Romote Assistance. User-friendly English Manuals for the Introduction of our Software/Machine and CD (Guiding Videos) for Software's installing/Operation and Machine'Using/Maintaining.
Other Products

Certifications

Why Hispeed Laser?

1.Factory

(1)We are Factory to make laser machines with years of experience.

(2)We are a reliable and experienced supplier. Our machine quality are assurable.

(3)CE and FDA certificate .

2.Warranty & After-Sale Service

(1) All the machines will be fully tested before shipment and free training for operator.

(2) The whole machine guarantee for 2 Years(some models)

(3) 24 hours' technical Support--Email, Telephone,Video Chat Or Romote assistance.

(4) User-friendly English Manuals for the Introduction of our Software/Machine and
CD (Guiding Videos) for Sotware's installing/Operation and
Machine'Using/Maintaining.

3.Easy to use and safety

(1)CD, Video, User Manual to guide you how to install, operate, maintain machine
step by step.

(2)limit switch for safe processing.Emergency stop-turn off machine immediately
After Service Policy
Training & Technical Support
1.Machine manual and Operation video will be provided with machine.
2.Software manual will be provided in softcopy.
3.Initial parameters in the software will be setup so the machine is "ready to use".
4.Online technical support requests will be reponsed within 1 hours during working time,we will guide you by email ,telephone or video chat.
5.Actually this laser marking machine is quite simple on operation,most of our users can start to use the machine and learn well by themselves in short time.
6.Engineer onsite technical support is available,visa ,air tickets,accommodation and local transportation fee will be on client's side.(Appointment needed )

The Difference between Hispeed Laser and Some other Suppliers he DThe Difference between Hispeed Laser and Some other Suppliersifference between Hispeed Laser and Some other Supplie

Different Aspects	Hispeed Laser	Some Suppliers May
Windows System	Windows 10	Win 7 or XP
Laser Source/Generator	Brand New	Refurbished or Second-hand
Control Card & Software	Genuine original JCZ brand	Copied
Z-axis	Motorized Z-axis	Manuel
Red Light Focus	Two red light spot	none
Warranty	24 months	12 or 18 months
After Service	Response within 3 hours(working time)	response in 3 days or no response

Repair Parts	Send alternative parts immediately, minimized the users' production delay	Users have to send the faulty or broken parts back to the supplier firsty,wait to repaired and then resend to customer,delay production
Business Type	Factory; Real manufacturer (Indicated in the Business License)	Trading company or agent
Certifications	CE,FDA
Trade Capability	With Export License
Sales & Merchandiser Team	Years of professional experience in international business, understand customer's needs well, keep customer updated for every details,tension- free purchsing process	Lack of experience for export custom and process

Packaging & Shipping

FAQ
Q1: What's the warranty? A1: Two years for laser source, one year for other parts, change or repair the broken parts during warranty, our FAE will teach you how to remove the broken parts by video. Warranty excluding man-made damage. We are real warranty based series number on the machine, not false or empty promises, any too long time warranty is unreliable, ourt warrannty is effective and enforceable. Q2: What's the package? A2: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic Bag for waterproof. Q3: How to install and run the machine? A3: You will get details in user manual, you only need install the column with laser path and put on monitor of computer. You will get a CD of orginal marking software and online video about basic operation. You also will get a software operation manual and you can be a laser marking master after reading and practics. You can send your questions to our online after-serive 24 hours. Q4: How can I know the machine is what exactly I need? A4: Please send us your material photo, marking speed demand, marking size demand and so on, you will get a promptly help from us. Q5: Can you give a discount? A5: No, because quality can't be discounted, but you can choose simple basic version for your application, please contact our sales to know more. Q6: How you can keep your quality. A6: Strict production process with four times checking from metal parts, optical components, installing specification to whole machines' 12 hours burning. Meet CE, FDA, and IEC standards, you will get a unquestionably reliable machine from Hispeed Laser ! Your every peny is deserve. >>>>>>Contact Us<<<<<< Hispeed Laser is a real manufacturer of fiber laser marking machine,contact us for further information if you are interested,thanks a lot.
Please advise us following inforamtion to recommend you most suitable machine:
1.What's kind of material do you want to mark? metal parts or non metal material?
2.What's the max working area do you need? we can provide you with 110*110mm, 175*175mm, and 220*220mm, 300*300mm, or customized as your demand

---
