4ftx8FT Sheets Galvanized Expanded Metal Mesh Lath

Product Description

4ftx8FT Sheets Galvanized Expanded Metal Mesh Lath
Product Introduce:

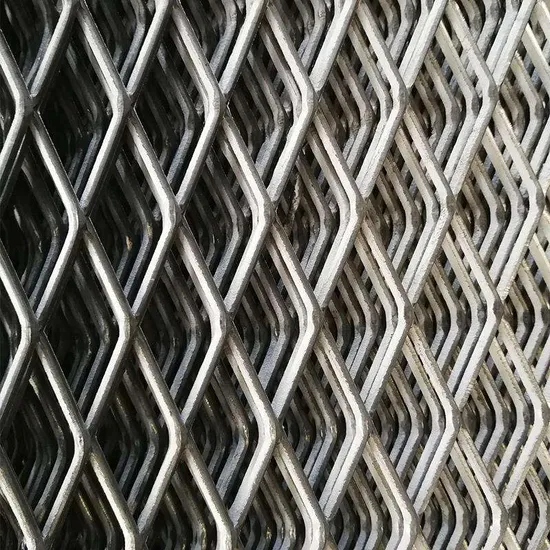

Expanded Metal is made from sheets of solid metal that are uniformly slit and stretched to create diamondshaped openings. It can bemade from a wide range of materials, chiefly expanded steel mesh, aluminum expanded metal mesh,expanded stainless steel, expanded nickel and other metal , as steel reinforcementmaterials in petroleum, chemical industry and building decorations. Thickness available from 0.5mm to 8mm.

Product name	Expanded Mesh Metal for Decoration
Matirial	Stainless steel,thin low carbon steel,brass plate, Aluminum plate,titanium plate,nickel plate,Al-Mg alloy plate.
Thickness	0.3-10.0mm
Hole shape	Diamond,square hole,scale hole,gothic etc.
Mesh size	1220*2440mm,1200*2400mm,1000*2000mm or customized
Surface treatment	1.PVC coated 2.Powder coated 3.Anodized 4.Paint 5.Fluorocarbon spraying 6.Polishing
Benefits	1.Continuity--the mesh is formed from a single piece of metal 2.Environment friendly--no wasteful of material 3.High strength--higher strength to weight ration then metal sheet 4.Adherence--anti slip surface 5.Very good noise and fluid filtration--excludes & retains simultaneously 6.Good rigidity--premium reinforcement properties 7.Good conductivity--highly efficient conductor 8.Screening--practical and effective light filtration 9.Good resistance to corrosion
Package	1.On pallet with waterproof cloth,the biggest width is 1500mm 2.In wooden case with waterproof paper 3.In carton box 4.In roll with woven bag,the biggest width is 3000mm 5.In bulk or In bundle
Application	1. Ventilation mesh, decorative mesh. 2. Protection mesh for machine, electric equipment, aquatic products breeding. 3. Screen for window, door, wall, ceiling, facade, roof, retail shelf, signage, partition. 4. Fence for highway, studio, garden, green belt, bridge, stadium. 5. Chimney caps and handcrafts. 6. Used in construction, concrete reinforcement, filtration. 7. Heavy expanded mesh can be used as stair for corridor, oil tank, working platform, escalator, walking road for big ship, heavy model equipment, petroleum well, mine well, boiler, footbridge
Certification	ISO9001, ISO14001, BV ,SGS certificate

Thickness of plate (mm)	Nominal size of mesh(mm)			Size of standard products(mm)		Calculated weigth
THICKNESS	SWD	LWD	STRAND	WIDTH	LENGTH	kg/m2
0.8	10	25	1.12	1800 2000 2500	3600 4000 5000	1.41
	12	30	1.35
	15	40	1.68
2	18	50	2.03	1800 2000 2500	3600 4000 5000
	22	60	2.47
	29	80	3.26			4.42
	36	100	4.05
	44	120	4.95			5.29
3	36	100	4.05
	44	120	4.95
	55	150	4.99	2000	5000	4.27
				2500	6400
	65	180	4.6	2000	6400	3.33
				2500	8000
4	22	60	4.5	1500 | 2000	2000-3000	12.84
	30	80	5		2000-4000	10.46
	38	100	6		2000-4500	9.91
5	24	60	6		2000-3000	19.62
	35	80	6		2000-4000	14.71
	38	100	7		2000-4500	14.67
	56	150	6		2000-6000	8.41
	76	200	6		2000-6000	6.19
6	32	80	7		2000-4000	20.6
	38	100	7		2000-4500	17.35
	56	150	7		2000-6000	11.77

---
