Floor-Standing LED UV Curing Conveyor UV Adhesive Curing for Large Components

Product Description

Product DescriptionENBO LED UV Curing Floor Type Conveyor Introduction

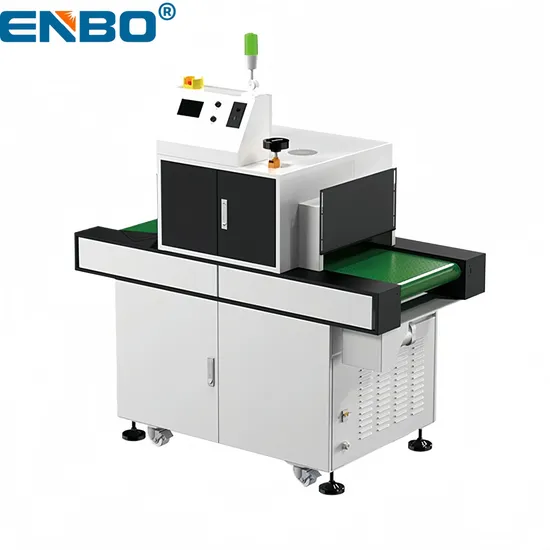

EB-FR300 is Floor type LED UV curing conveyor system with 300mm conveyor belt width; 600mw-18000mw/cm2 optional. This a compact solution designed for efficiency. The conveyor features a standard width of 200mm, with material options including stainless steel, PVC, and more. The standard height from the lamp heads to the conveyor belt is adjustable from 10mm to 180mm.
Desktop Conveyor SystemThe conveyor features a standard width of 300mm, with material options including stainless steel, PVC, and more. The standard height from the lamp heads to the conveyor belt is adjustable from 10mm to 180mm. With a maximum conveyor belt speed of 5m/min, customizable to other speeds, this desktop conveyor provides versatility. Its small footprint makes it ideal for various settings.LED UV Lamp Head ( Support Customization )
The machine can be equipped with a Flood Curing Lamp allowing for 0-100% control of the internal working power. The internal LED UV curing lamp's size and wavelength intensity are adaptable to user preferences, making it an ideal choice for curing small areas of UV materials such as adhesives, inks, coatings, and more.
Product Parameters

Power	900W	UV Wavelength	365nm/395nm/405nm/485nm
Cooling Method	Air Cooling or Water Cooling	UV Intensity	9000-18000mw/cm2
Display	5-inch Touch Screen	Conveyor Belt Width	300mm

For product more details or customization, please contact us.Features1. High Efficiency: Capable of reaching a UV intensity of up to 18000w/cm² for rapid curing of UV materials.2. Versatility: Offers multiple UV wavelength options (365nm, 395nm, 405nm, etc.) to accommodate a variety of material requirements.3. User-Friendly Design: Features a 5-inch touch control display for easy operation and power control from 0-100%.4. Standard Width and Material Options: The conveyor features a standard width of 200mm, and users can choose from materials such as stainless steel, PVC, among others.
5. Professional Suitability: Ideal for use in medical, electronic, and laboratory settings.
Certifications
Packaging & ShippingWe use professional export packaging and wooden crates to ensure the safe transportation of the product.

FAQ 1. What's the whole UV LED curing system including?
The whole UV LED curing system including UV LED Curing Conveyor + UV LED Lamp and Controller System2. Can I use my own PLC and Electric cabinet?
Yes, of coures. Our UV LED driver provide RS485 communication.3.How to proceed an order for UV LED curing system?
Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
4. Is it OK to print my logo on UV LED curing system?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample. 5. Do you offer guarantee and installation service for the products?
Yes, we offer 20000HRS service and 1 year free warranty. The installation service can provided but should be payed according different country and different system.For product trials or customization, please contact us.

---
