12000W 15000W Ultra-High Power Large Format Fiber Laser Cutting Machine

Product Description

Product Description

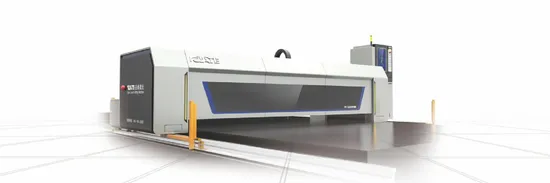

Model LC12028M ground rail gantry model is a high-precision, large-format, high-power laser cutting machine developed by combining domestic and foreign advanced technology and its own ten years of cutting experience. It is widely used in engineering machinery, wind power manufacturing, agricultural machinery, steel structures, etc. Medium-thick steel plate cutting industry.
The standard effective cutting length of the equipment is 13m (single station) and 25m (double station), which can also be customized according to customer needs; it adopts a floor-standing gantry structure, which is suitable for precision cutting of large-format plates, extraordinary and ultra-wide; suitable for laser cutting of medium-thick plates , energy saving and environmental protection, low operating cost.
Detailed Photos

Bochi BLT series high-power intelligent laser cutting head is a full-featured bus-controlled cutting head specially launched for the sheet metal processing industry. It is easy to install, easy to debug, has excellent performance, and has a complete set of sensors. It is one of the few smart cutting heads on the market. Monitor the status of the focusing mirror and provide quick feedback when the lens is contaminated; monitor the ambient temperature of the focusing mirror to effectively prevent the focusing mirror from working at high temperatures.
MAX laser 6kw-20kw multi-mode cw are water cooling, modular design, compact structure, highly integrated system, free maintenance, high reliability.The laser power is continuously adjustable, the photovoltaic conversion efficiency and the beam quality and the laser stability are excellent, widely used on thicker plate laser cutting, thinner sheet laser welding and laser cladding, surface heat treatment and other applications. 6kw-8kw used optical fiber with QBH head output, 10kw-20kw used optical fiber with LOE head output, can be combined with laser processing head, galvanometer and robot, machine tool system integration, widely used in hardware, medical, automotive, shipbuilding, aviation, construction machinery industries and other fields.
The cutting table is separated from the longitudinal guide rail, effectively isolate the heat transfer between cutting area & longitudinal track area, which ensures the transmission accurac
Longitudinal guide rail is different from the traditional plasma rail, higher processing accuracy & higher selection level
Cross single linear guide collimator measurement strai ≤0.03mm, up and down linear guide parallelism ≤0.03mm
Japanese Yaskawa high power servo & Shimpo VRT140 high torque reducer with Taiwan YYC rack and pinion.
Side draft fume collection system can effectively reduce fume & dust to improve the working environment.
Machine gantry is equipped with optical grating on front & back, in the grating area E-stop would be alerted to avoid the risk of misoperation and collision risk.
Product Parameters

Model	LC12028M
Cutting area	13000*2800mm (customizable)
Laser power	6000-40000W
Position speed	35 m/min
Acceloration	0.6 G
Positioning precision	0.05 mm/m
Repetitive positioning precision	0.03 mm/m
CNC controller & software	FSCUT 8000 & CypNEST
Laser source	Raycus or MAX brand
Laser head	FSCUT BLT640 or Raytools or German Precitec
Water cooling	Hanli brand
Servo system	Japanese Yaskawa or Inovance models
Gear reducing box	Japanese Shimpo
Motions racks	Taiwan YYC
Steel rails	Heavy duty 50KG grade high precision
Fume extraction system	Extractor with filter cartridges & side draft table
Operating Voltage	380V±5% 50HZ

Photos at customers' factories


Cutting effect display

Company Profile
Shandong Farin International Trade co., ltd/Shandong Farin Intelligent Machinery Co., Ltd.(Hereinafter referred to as "Farin CNC Machine"). Farin CNC Machine is a integrating stock group company in researching and developing, manufacturing and trading at Metal processing industry.
Our products including CNC metal drilling and milling machine, Anlge steel making machine, fiber laser cutting machine, ultra-high power 10,000-watt laser cutting machine, plate and tube integrated laser cutting machine, automatic loading and unloading laser cutting machine, hand-held laser welding machine and other equipment. They are mainly used for processing angle steel, metal plates, H-beam, channel steel, box steel, round steel, flange plates and so on in power towers, transmission towers, telecommunications tower, steel structures, central air-conditioners, automobiles, household appliances, petrochemicals and construction industry.
With the developing of the brand efficiency in the international market, Farin CNC Machine increase the investment constantly into the R&D department, in ensuring the stably of the existing products, we constantly absorb quintessence experience of the industry, so that ensure our technology always in the advanced position. Meanwhile, Farin CNC Machine constantly strengthen internal management, so as to realize much more benefit and make great development from the advanced manage method.
Therefore, our products has been exported to more than 100 countries and districts, such as Southeast Asia, North America, South America, Africa and Middle East. And get high appreciated from all over the world.
After Sales Service

1. Warranty.
--Farin Laser provides a 3-year free warranty and provides customers with timely solutions.
2. Follow up.
--Farin Laser will regularly call or visit customers to perform equipment maintenance and archiving.
3. Online services.
-Farin Laser will respond to any questions from customers within 1 hour during working hours,
4. Overseas services.
--Farin Laser can provide overseas machinery installation, training, maintenance and other services.

---
