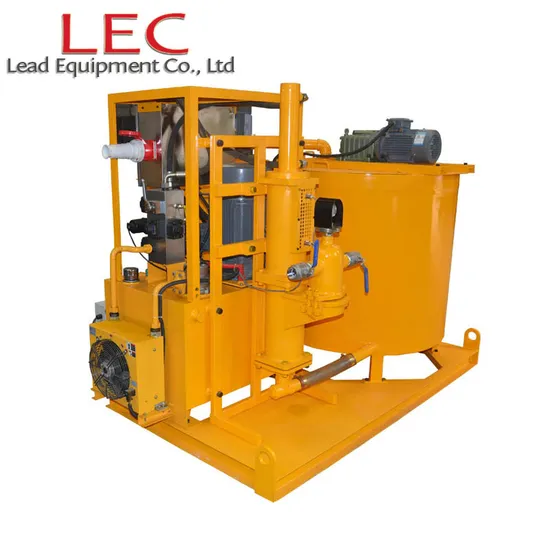

LGP400/700/80pl-E Compact Grout Pumps Plants Station for Sale

Product Description

LGP400/700/80PL-E Compact grout pumps Plants Station for sale Description of grout pump:
LGP400/700/80PL-E grout station is a combination of mixer, agitator and grout pump in one plant. It is mainly used in highway, railway, hydropower, construction, mining and other ground and underground construction.
High speed vortex mixer ensures mix quickly and evenly. Water, cement and other media are quickly mixed into a homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. The grouting pump is hydraulic drive. Grouting pressure and displacement is stepless adjustable. Compact size and it is easy to operate. It also takes up a small space.

Features of grout pump:
Grouting pressure, displacement is stepless adjustable
Simple structure, light weight, easy maintenance
Continuous output with small pulse
Less spare parts ensure low maintenance costs
High speed vortex mixer ensures mix quickly and evenly.
Mixer and agitator switch by using squeeze handle, it is safe, reliable and easy to operate
The motor has an overload protection function. Hydraulic system with oil temperature overheating protection
With high-speed, low-speed mode, by using ball valve to achieve two-function switch
With CE, ISO certification

Technical data of grout plant

Description	Data
Grout Station model	LGP400/700/80PL-E
Dimensions	2500*2200*1730mm
Weight	1350kg
Mixer
Capacity	400L
Output	6 m3/h
Power	7.5Kw, 1450rpm,50Hz,380V
Rated Rev	1450rpm
Suitable water/cement ratio	≥0.5:1
Agitator
Capacity	700L
Rated Rev.	36rpm
Power	1.5KW, 50Hz,380V
Pump
Pressure / Output	High speed: 0-2.5MPa 0-80L/min Low speed: 0-4.5MPa 0-58L/min
Power	15kw,50Hz,380V

Detailed Images


Application
Civil engineering - dam, tunnel, subway, mine, soil nailing wall, curtain, anchor, cable trench and anchor grouting;
Building structure - building and bridge repair, foundation reinforcement, slope support, soil compaction, terrg grouting;
Engineering - underwater foundation, offshore platform, coast foundation grouting reinforcement
Mine application - roadway reinforcement, backfill, waterproof grouting.
Acted as a grouting plant in the Pipe Jacking Machine
We have many kinds of grouting equipment for your reference, in order to recommend you more suitable models grouting equipment, please let us know clearly about your requirements:
1. what project will you do with grouting equipment? for dam, foundation treatment or micropile,etc?
2. what is the output and pressure of pump?
3. what is water cement ratio?
4. which engine do you prefer? electric motor or diesel engine?
if you want to know more about our grouting equipment, please feel free to contact with me.

---
