Wideband Antenna 698-4000MHz Low Pim Indoor MIMO Antenna N-Female Type for Communication

Product Description

Products Description

698-4000MHz Indoor MIMO Antenna(698-4000MHz, N Female)
MIMO stands for "multiple-in and multiple-out" and DAS stands for "distributed antenna system". This High Performance Ceiling Antenna provides high gain dual polarity coverage for 2G, 3G, 4G, LTE and 2.4 GHz WiFi frequency bands of 698 to 960 & 1710 to 2700 MHz. 4G LTE MIMO Panel Antenna is an Industrial grade directional antenna designed to enhance the performance of a wireless broadband network or cellular device. It covers the full 4G LTE band including 698-960MHz, 1710-2170MHz & 2300-2700MHz, to offer future proof compatibility to all Australian mobile network operators.

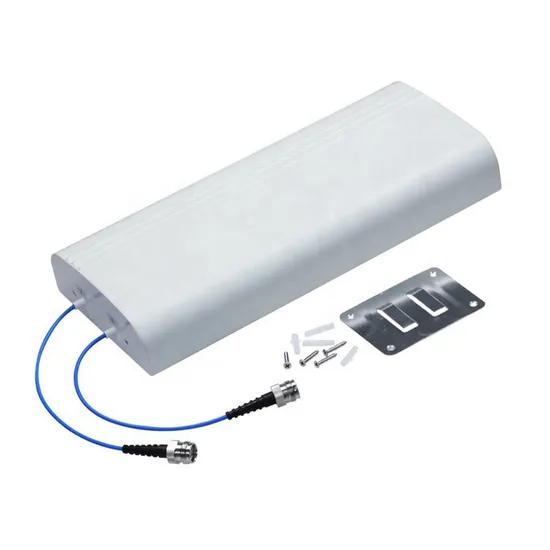

Topwave Model TPW-MIOA-740-153-NF, 5G Low PIM3 Indoor MIMO Wall Mount Panel Antenna, 698-960 MHz/1350-1550/1710-4000MHz for wireless communication. It is ideal for applications requiring GSM, 3G, 4G/LTE and 5G frequency band operations. This simplifies installations since the same antenna can be used for a wide array of in-building wireless applications where wide coverage is desired.

Electrical & Mechanical Specifications

Model No.	TPW-MIOA-740-153-NF
Frequency Range	698-4000MHz
Frequency Sub-Range(MHz)	698-806	806-960	1350-1550	1710-2700	3300-3800	3800-4000
Polarization	Horizontal
Gain(dBi)	5±0.5	6±0.5	6.5±0.5	8±0.5	6±0.5	5±0.5
Horizontal Beamwidth	80±10°	80±10°	70±10°	70±10°	60±10°	60±10°
Vertical Beamwidth	50±10°	50±10°	40±10°	35±10°	40±10°	40±10°
Impedance	50Ω
VSWR	≤ 1.8	≤ 18	≤ 1.6	≤ 1.6	≤ 1.8	≤ 2.0
Isolation(dB)	≥ 20	≥ 20	≥ 20	≥ 25	≥ 25	≥ 25
Front-to-Back Ratio	≥ 10 dB	≥ 10 dB	≥ 10 dB	≥ 15 dB	≥ 15 dB	≥ 15 dB
PIM(dBc)	-153 dBc@2x43dBm
Maximum Power	50W
Connector Type	2 Port, 4.3-10 Female or N-Type Female
Net Weight	1.0kg
Operating Temperature	-55° to +60° C (-67° to +140° F)
Radome Material	ABS
Radome Color	White
Mounting Options	Fasteners and screws included for wall mounting

Related Product

5g Indoor 698-2700MHz 380-520MHz High Gain UHF Outdoor 698-960/1710-4000MHz High Gain
N Female Omni Ceiling Mount Antenna Panel RFID Antenna for Cellular Base Station Omni Ceiling Antenna for Indoor Signal Booster

About Us

Hefei Topwave Telecom Co.,Ltd, is a worldwide leading provider of comprehensive RF passive equipment and high-performance wireless infrastructure solutions focused on innovation and differentiation at the edge of wireless telecommunication networks.
Topwave Telecom established in 2007, located in Hefei National High-tech Zone. With the decades of development, we have our own R&D center and manufacturer center.We are OEM and ODM service provider and network operators to improve performance and reduce operating expenses via comprehensive set of products and solutions. Topwave has more than 10 years experience to export goods to all over the world, the RF passive devices like power splitter, coupler, filter, multiband combiner etc, which widely used for DAS, IBS, BTS and BDA.
Topwave persist to provide excellent products and service for every client as always. Our mission is to make the world connected, make the world small, and make the world smart. Topwave Telecom, your trusted strategic business partner, your RF expert in telecommunication.

Main Products

Application

Packing Details

Testing Equipment

FAQ

Q: Can I get smaples for validation test?
A: Let's talk, some samples are free but shipping charge should be on your account.
Q: What is your MOQ?
A: We don't have MOQ limit.
Q: What is your payment terms?
A: We accept Western Union, T/T, Paypal and so on.
Q: What is your delievry time?
A: Normally around 2 weeks, TBD for massive quantity or customized products.

---
