Acme Rice Combine Harvester Small Rice Harvest Machine

Product Description

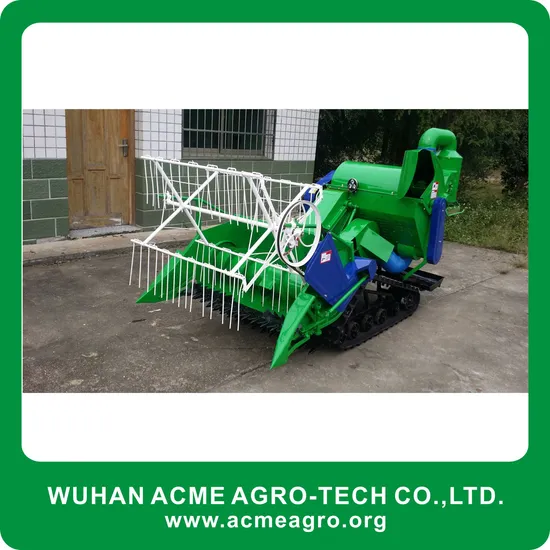

ACME rice combine harvester small rice harvest machine
Introduction:
4LZ-0.8B combine harvester is a mini/small wheat rice combine harvester that used for harvesting wheat and rice grain, it is specially suit for hills and mountains or areas where general combined harvesters can not enter in, very convenience for farming.
Triangle track: special suitable for wet/paddy/muddy land harvesting, it is also very good at dry land harvesting.
Specification:

model	4LZ-0.8B
type	tracked riding
item name	mini combine harvester
suitable grains	rice, wheat
power	12.5hp air cooling electric start diesel engine, Single cylinder,4 stroke
gross weight	390kg
net weight	350kg
cutting width	1.2m
engine rotary speed	2400rpm
oil consumption	0.9-1.47L/h
feed rate	0.8 Kg/s
productivity	0.08-0.12ha./h
total loss	<3%
breakage rate	<1%
impurity rate	<7%
overall dimension	2700*1420*1350mm
packed size	2200*1320*1200mm
ground pressure	≤17Kpa
walking speed	1-5km/h
roller diameter	35cm
fan diameter	28cm
advantage	double clutch, double blade with adjustable height
Chassis ground clearance	32cm
container load QTY	18units/40HQ

More pictures for your reference

About us WUHAN ACME AGRO-TECH CO.,LTD / ACME AGRO GROUP LIMITED limited company is located
in the nine provinces of the beautiful.Jiangcheng, Wuhan, the company is now in a number of domestic
international famous food and agriculture colleges, scientific research institutions, the company carried
out extensive and in-depth technical and business cooperation, and establish a long-term strategic cooperative partnership.

ACME on agricultural machinery, food machinery, bio-energy, agricultural engineering and food engineering etc.
After many years' of development, ACME already had customers from all over the world like North America,
South America,Southeast Asia,Africa,Oceania,Mid East,East Asia,Central America etc.. Also we have contracted
three sets of rice mill plant for UNDP agriculture project in Benin and projects for others UN agro & food engineerings.

---
