Product Description
Product Description

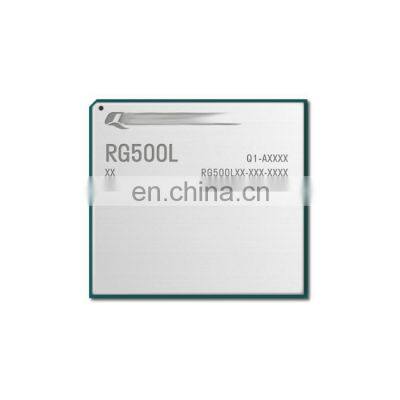

DescriptionKey Features● 5G/4G/3G multi-mode module with M.2 form factor, optimized for IoT and eMBB applications● Worldwide 5G and LTE-A coverage● Both NSA and SA modes supported● Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment● Feature refinements: DFOTA and VoLTE (optional)Overview● The RG500L is a series of 5G sub-6GHz LGA modules specifically optimized for IoT and eMBB applications. By adopting the 3GPP Release 15 technology, the module supports both 5G NSA and SA modes. It supports Option 3x, 3a, 3 and Option 2 network architectures and is backwards compatible with 4G/3G network.● The RG500L is an industrial-grade module for industrial and commercial applications only. It includes 2 variants, the RG500L-EU (for use in Europe, the Middle East, Africa, Oceania and Brazil) and RG500L-NA (for use in North America). The module also combines high-speed wireless connectivity with an embedded multi-constellation and high sensitivity GNSS (GPS/BDS/GLONASS/Galileo) receiver for positioning.● The RG500L has a quad-core CPU @2GHz, and is integrated with a network hardware accelerator and VPN hardware accelerator, which allows the module to support a wide range of IoT and eMBB applications such as 5G wireless routers, CPE, MiFi, business routers, and home gateways.RG500L-EURG500L-NAREGION/OPERATOREurope/Middle East/Africa/Oceania/BrazilNorth AmericaFREQUENCY BANDS5G NR NSAn1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78n2/n5/n7/n12/n25/n38/n41/n48/n66/n71/n77/n785G NR SAn2/n5/n7/n12/n25/n38/n41/n48/n66/n71/n77/n78n2/n5/n7/n12/n25/n38/n41/n48/n66/n71/n77/n785G DL CASupports 2CC CASupports 2CC CA5G DL 4 × 4 MIMOn1/n3/n7/n38/n40/n41/n77/n78n2/n7/n25/n38/n41/n48/n66/n77/n785G UL 2 × 2MIMOn40/n41/n77/n78n41/n48/n77/n78LTE-FDDB1/B3/B5/B7/B8/B20/B28/B32B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71LTE-TDDB38/B40/B41/B42/B43B38/B41/B42/B43/B48LTE-LAA-B46LTE DL 4 × 4 MIMOB1/B3/B7/B38/B40/B41/B42/B43B2/B4/B7/B25/B30/B38/B41/B42/B43/B48/B66WCDMAB1/B5/B8-GNSSGPS/BDS/GLONASS/Galileo, L1 + L5GPS/BDS/GLONASS/Galileo, L1 onlyCERTIFICATIONSCARRIERTBDTBDREGULATORYGlobal: GCF*Europe: CEAustralia/New Zealand: RCMGlobal: GCF*North America: PTCRB*America: FCC*Canada: IC*OTHERSRoHSRoHSDATA RATE5G SA Sub-6 GHz4.67Gbps (DL)/ 1.25Gbps (UL)4.67Gbps (DL)/ 1.25Gbps (UL)5G NSA Sub-6 GHz3.74Gbps (DL)/ 1.46Gbps (UL)3.74Gbps (DL)/ 1.46Gbps (UL)LTE1.6Gbps (DL)/ 211Mbps (UL)1.6Gbps (DL)/ 211Mbps (UL)DC-HSPA+42Mbps (DL)/ 5.76Mbps (UL)-ELECTRICAL & RF FEATURESSUPPLY VOLTAGE RANGE (V)3.3–4.3, typ. 3.83.3–4.3, typ. 3.8POWER CONSUMPTION (μA)80 @ Power off6.5 mA @ Sleep 125 mA @Idle (USB active)80 @ Power off6.5 mA @ Sleep 125 mA @Idle (USB active)OUTPUT POWERClass 3 (24 dBm +1/-3 dB) for WCDMA bandsClass 3 (23 dBm ±2 dB) for LTE-FDD bandsClass 3 (23 dBm ±2 dB) for LTE-TDD bandsClass 3 (23 dBm ±2 dB) for 5G NR bandsClass 2 (26 dBm +2/-3 dB) for 5G NR n40/n41/n77/n78 UL MIMO HPUEClass 3 (23 dBm ±2 dB) for LTE-FDD bandsClass 3 (23 dBm ±2 dB) for LTE-TDD bandsClass 3 (23 dBm ±2 dB) for 5G NR bandsClass 2 (26 dBm +2/-3 dB) for 5G NR n41/n77/n78 UL MIMO HPUERG500L-EURG500L-NAWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorIC
>>
