Hydraulic three roll thread rolling machine scaffolding threading machine ZP28-65

Product Details

Product Description

Product Description

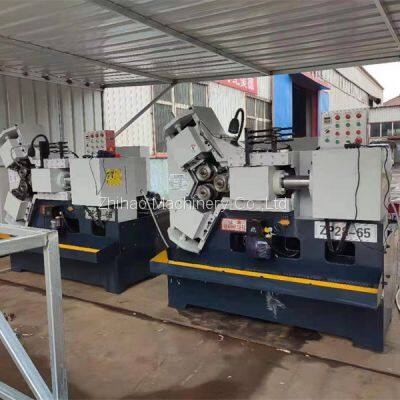

Hydraulic three roll thread rolling machine scaffolding threading machine ZP28-65
Technical parameter of Model ZP28-65 3 aixs thread rolling machhine:
Rolling thread range Diameter 80mm
Max thread pitch 8mm
Spindle angle ±6°
Max rolling pressure 250kn
Spindle RPM 22/28/35/45/56/70rpm
Roller size range Outside diameter 180mm
Hole 54mm
Max width 100mm
Rolling time 0.1-99.9s
Rest time 0.1-99.9ss
Spindle drive power 11kw
Hydraulic transmission power 3.0kw
Dimension 1800*2200*1800mm
Weight 3100kg
Advantages of Hydraulic three roll thread rolling machine scaffolding threading machine ZP28-65:
1.Three spindle of the automatic pipe thread rolling machine rotates synchronously in the same direction .Right spindle feed motion in the horizontal direction under the rolling drive.Three rolling wheels make the work as required and other thread shape by rolling.
2.This hydraulic pipe thread rolling machine is mainly composed of an organism, rotating box, fixed spindle seat , a movable spindle seat, hydraulic system and electrical parts etc.
3.The fixed seat and the movable seat main function is installing the screw rolling wheel and adjusting the rolling wheel tooth.
4.This pipe screw thread rolling machine is a hydraulic power system, it is mainly to make the active spindle seat to feed and return .
5.The two spindle seat adjust center respectively.Angle of table axis can be adjusted in the plus or minus 3 degrees.Each shaft to feed the workpiece can be determined according to the parameters of workpiece and mechanical properties of materials.
Any more questions for Hydraulic three roll thread rolling machine scaffolding threading machine ZP28-65, pls contact freely.
