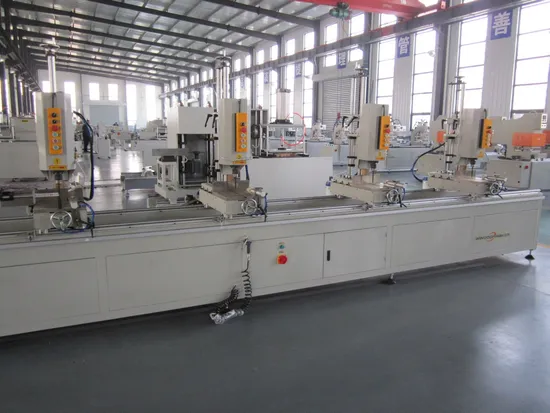

Aluminium Window Door Production Machine Aluminum Profile Frame Multi Head Drilling Machine

Product Description

Product Description
Specification:
Used for drilling holes on the aluminum and curtain wall profiles, for large volume production. PLC control, each machine head can works individual and combination. Max. processing section size 250x250mm, and Max. processing length 5000mm. Multi-head boring anchor can be fixed to meet multi-holes processing requirements. Feeding system adopts hydro-pneumatic cylinder, ensured a smoothly feeding. Technical Parameter:

Power supply	Made to order
Hydraulic gearbox motor power	6x1.1KW
Rotary speed	1400r/min
Operation air pressure	0.5~0.8Mpa
MAX. diameter of drilling hole	Max.13mm
Min &. Max.distance between two drilling holes	300-5000mm
Max. Processing profile section size	250×250mm
Max. Processing depth	125mm
Dimension	5500×1000×1900mm(LxWxH)
Weight	1500kg

Certifications

Company Profile

Jinan Windoormaker Machine CO., Ltd. Is an engineering company that has been in business for over 10 years which specialized in the manufacture and supply the UPVC & aluminum window and door machines.
Windoormaker is a factory with cover area of 15000 m² . During the years developing, has made many devotes of machine improving, introducing new equipment and technology innovation for the production.


Machine at old customer


Packaging & Shipping

---
