Product Details

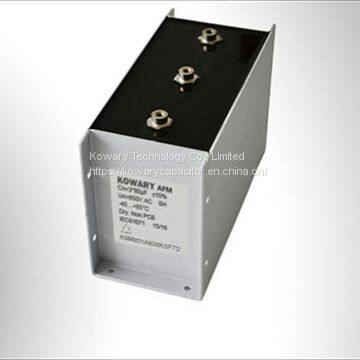

Product Description
Product Description
■GENERAL TECHNICAL CHARACTERISTICS
Reference standards IEC 61071
Dielectric Polypropylene film
Construction Dry construction, Non-inductive type
Case Aluminum case
Output Threaded insert M8 or M10, Lead screw M8
Dissipation factor ≤2.0×10-3 Measured at 100 Hz and 20±5℃
Self inductance ≤100nH
Life expectancy 30,000 hours at Urms and 70 ℃(Hot-spot temperature)
Dielectric strength 1.5×Urms applied to 10s at 20±5 ℃
Test voltage terminal to case 3KVAC/50Hz for 10s
Insulation resistance(IR*CN) ≥ 5000s but need not exceed 30GΩ, after 1 minute of electrification at 100VDC (20±5℃)
■ELECTRICAL SPECIFICATION Unit: mm
Part
Number
| Capacitance
(μF)
| ESR @1.0KHz
(mΩ)
| Imax @45℃ @10KHz (A)
| Case
code
| Rth
(K/W)
| Weight
(Kg)
|
Urms 400Vac, Upeak 565V
|
K9M401A207KS##D***
| 3×200
| 3×0.95
| 3×90
| A4
| 1.1
| 6.2
|
K9M401A307KS##D***
| 3×300
| 3×0.88
| 3×115
| A5
| 0.9
| 8.7
|
K9M401A407KS##D***
| 3×400
| 3×0.83
| 3×155
| A6
| 0.7
| 11.2
|
K9M401A507KS##D***
| 3×500
| 3×0.80
| 3×160
| A7
| 0.6
| 14.5
|
Urms 500Vac, Upeak 710V
|
K9M501A127KS##D***
| 3×120
| 3×1.01
| 3×65
| A4
| 1.1
| 6.2
|
K9M501A187KS##D***
| 3×180
| 3×0.92
| 3×90
| A5
| 0.9
| 8.7
|
K9M501A247KS##D***
| 3×240
| 3×0.86
| 3×130
| A6
| 0.7
| 11.2
|
K9M501A307KS##D***
| 3×300
| 3×0.83
| 3×155
| A7
| 0.6
| 14.5
|
Urms 550Vac, Upeak 780V
|
K9M551A906KS##D***
| 3×90
| 3×1.86
| 3×65
| A4
| 1.1
| 6.2
|
K9M551A1356KS##D***
| 3×135
| 3×1.49
| 3×80
| A5
| 0.9
| 8.7
|
K9M551A187KS##D***
| 3×180
| 3×1.28
| 3×105
| A6
| 0.7
| 11.2
|
K9M551A2256KS##D***
| 3×225
| 3×1.19
| 3×130
| A7
| 0.6
| 14.5
|
Urms 690Vac, Upeak 975V
|
K9M691A506KS##D***
| 3×50
| 3×2.03
| 3×55
| A4
| 1.1
| 6.2
|
K9M691A756KS##D***
| 3×75
| 3×1.64
| 3×80
| A5
| 0.9
| 8.7
|
K9M691A107KS##D***
| 3×100
| 3×1.39
| 3×105
| A6
| 0.7
| 11.2
|
K9M691A1256KS##D***
| 3×125
| 3×1.28
| 3×130
| A7
| 0.6
| 14.5
|
Urms 850Vac, Upeak 1200V
|
K9M851A306KS##D***
| 3×30
| 3×2.36
| 3×40
| A4
| 1.1
| 6.2
|
K9M851A456KS##D***
| 3×45
| 3×1.85
| 3×65
| A5
| 0.9
| 8.7
|
K9M851A656KS##D***
| 3×65
| 3×1.50
| 3×95
| A6
| 0.7
| 11.2
|
K9M851A806KS##D***
| 3×80
| 3×1.38
| 3×105
| A7
| 0.6
| 14.5
|
Urms 1000Vac, Upeak 1410V
|
K9M102A206KS##D***
| 3×20
| 3×2.68
| 3×30
| A4
| 1.1
| 6.2
|
K9M102A306KS##D***
| 3×30
| 3×2.07
| 3×55
| A5
| 0.9
| 8.7
|
K9M102A456KS##D***
| 3×45
| 3×1.63
| 3×65
| A6
| 0.7
| 11.2
|
K9M102A556KS##D***
| 3×55
| 3×1.43
| 3×95
| A7
| 0.6
| 14.5
|
Remark: 1. ## Output and case code; *** Internal code.
2. Customization for special specification and requirement is available
>>
