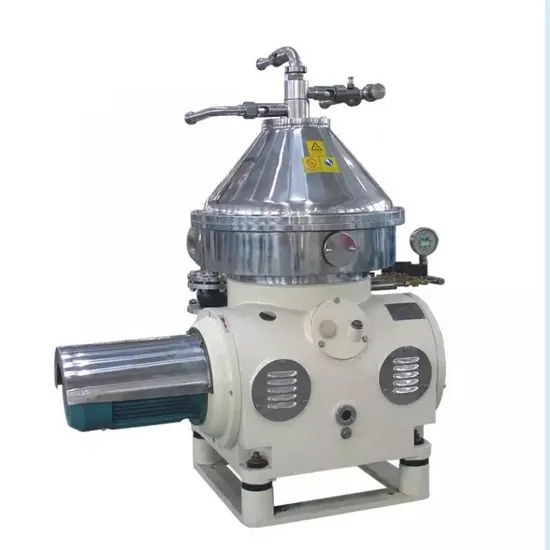

Beer Industry Stainless Steel Separator / China Manufacture Conical Disc

Product Description

Beer centrifuge is a separation and clarification equipment specially designed for beer brewery. The main body is made of food grade stainless steel, and made of special wear protection treatment. While ensuring the hygienic requirements of beer production process, it also provides a perfect solution for brewery to brew high quality beer. We can provide the most suitable separation solution according to the needs of different brewers.
Machine Parts Name: Disc
Brand: SHENZHOU
Original: China
Domestic famous engines
Main Parts Name: Shaft
Brand: SHENZHOU
Original: China
The vertical shaft is to transmit power, is equipped with speed step-up gear (small spiral gear) and hi-speed rotating part.
The cross shaft is to transmit motor power to the vertical shaft and main parts of the drum.
Machine Parts Name: Drum
Brand: SHENZHOU
Original: China
The drum is a component to separate material and rotates at high speed, is the heart of the separator.
Main Features Name: Equipment Base
Brand: shenzhou
Original: China
Underframe is the main part for supporting the whole separator and connecting base, all four supporting feet of the baseframe are equipped with damping rubber pads, which can isolate vibration between the separator and building very well.
Description
Advanced equipments are very important in the dairy and beverage production process, as people pay more attation to the quality.
Separator enable separate the extreme tiny ( as less than 1mm) solid particles which dispersed in suspensions from the liquid phase out.
To separate, laminate or sedimentate the solid particles in liquid by getting different sedimentation speeds under centrifugal force field for light/heavy phase or solid phase that are of different densities and not solvable each other in liquid mixture (turbid liquid).
Specification

Model	Treatment capacity (L/H)	Inlet pressure (Mpa)	Outlet pressure (Mpa)	Motor power (Kw)	Weight(Kg)	Outline dimension (mm)
DBY211	2000-5000	0.05	0.1-0.4	15	1600	1800*1200*1750
DBY214	3000-10000	0.1	0.1-0.4	22	2300	1950*1550*1960
DBY616	5000-15000	0.2	0.1-0.4	45	3400	2380*1730*2060

Advantage
1. Lower noise
2. High rotating speed
3. Operating stability
4. Perfect separating affection
5. Completely sealed up of the inlet and outlet system
Juice separator Successful Applications
This Disc centrifuge are frequently used for processing beverages and milk cream, such as fruit & vegetable juice,wine, tea, and so on
Any Liquid-solid separator: Beverage orange juice industry
Algae separator
Our philosophies of development
* Based on continuous strengthen oursleves with full of innovative ideas
* 5% of sales revenue is allocated into intensive research
* 8% of workforce is allocated into development activity
* Plenty of patent and good quality new products
Track Records:

1. With the outstanding track records, our products are widely applied into different industries

2. The key factors of our success are to constantly fulfilling customer's requirement and exceed their ecpection.

3.We are loking forward to your guidance, opinion and suggestions that would be a long term mutual beneficially business relationship.
Our service
Before order:
1. quotation offered
2. factory visit
After sales:
1. operation employee training
2. repair and mantance of separator
3. engineer available overseas
Shenzhou Group has set-up a 1st class in-house laboratory for chemical composition analysis, metallographic analysis, spectrum analysis, performance analysis, radiographic inspection, magnetism inspection, ultra-sonic inspection and etc. This is to imply with the latest advance instrumentations and rigorous working attitude to ensure every part of product is stable and reliable.

---
