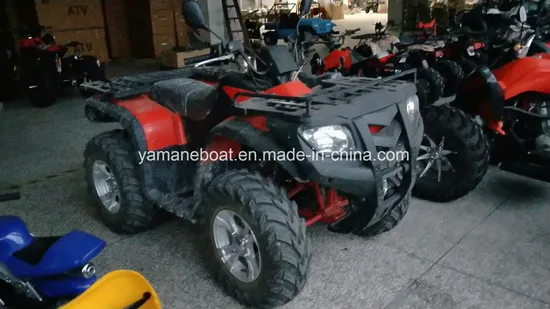

New Model Single Cylinde Gas Power 400cc 4X4 Utility ATV

Product Description

20GP	40HQ
8-10units	18-27units

Engine type: single cylinder, 4-stroke, water-cooled, 4-valve, stepless transmission
2) Displacement: 493cc
3) Maximum power: 24kw/6500r/min (Europe standard: <15kw/6500r/min)
4) Maximum torque: 38.8N. M/5500r/min (Europe standard: 30N. M/4500r/min)
5) Ignition system: CDI
6) Starting method: electric / manual
7) Compression ratio: 9: 1
8) Battery: 12V 20Ah
9) Fuel tank capacity: 15L
10) Economic fuel consumption (L/100km): 5.8
11) Maximum speed: 80km/h
12) Transmission mode: double independent shaft drive
13) Braking method: Hydraulic disc brake / Hydraulic disc brake
14) Wheelbase: 1350mm
15) Height from the ground: 290mm
16) Tires (front/rear): 25 x 8-12 / 25 x 10-12
17) Net weight: 390kgs
Gross weight: 413kgs
18) Product size: 2230*1190*1300mm
19) Packing size (without removing the wheel): 2250*1225*1080
Package size (with wheels removed): 2250*1160*920
20) Car / 20-foot cabinet: 10 (removing the wheel)
Car / 20 foot cabinet: 8 (without removing the wheel)
/40 foot high cabinet: 27 (displace the wheel)
/40 foot high cabinet: 18 (without removing the wheel)

---
