Universal Small Z3032X7p Radial Drilling Machine Price

Product Description

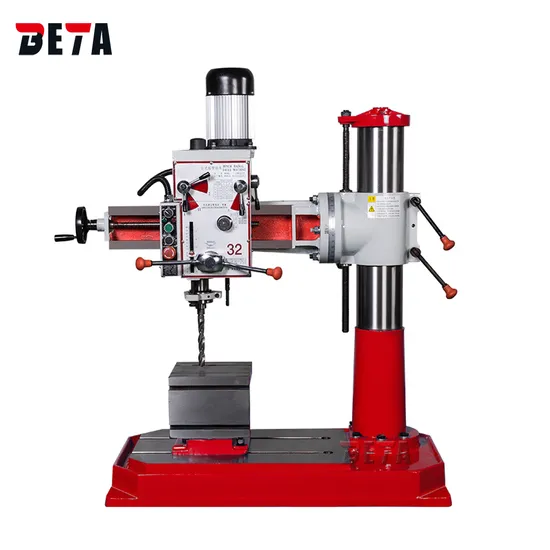

Universal Small Z3032x7P Radial Drilling Machine Price

Model	Unit	Z3032x7 Z3032x7P
Max. Drilling capacity	mm	31.5
Max. Tapping capacity	mm	Cast iron 20, Steel 16
Distance spindle axis to column generating line	mm	300-700
Diameter of column	mm	150
Taper of spindle		MT3
Spindle travel	mm	130
Spindle speeds range	r/min	100-1600
Spindle speeds series	step	8
Spindle feeds	mm/r	0.08, 0.14, 0.23,
Rotary angle of rocker in horizontal plane	degree	360
Max. spindle nose to base	mm	275--680
Dimension of worktable surface	mm	250x250x250
Dimension of base	mm	1050x550x120, 1200x625x155
Overal size	mm	1235x550x1195, 1235x625x1230
Spindle motor power	W	750 or 1100
G.W/N.W	kg	415/385, 540/500
Packing dimension	mm	1260x650x1390/1330x750x1490

Features:
1. The radial drilling machine construction designed elaborately, with pefect appearance and convenient maintenance.
2. The headstock radial arm and column are clamped by manual clamping mechanisms.
3. All controls centrealized on the headstock easy operation and change. Clamping for assemblies and speed change of spindle achieved by hydraulic power.
4. Main parts are made by machine center which import from KIA with high precision and efficiency, ensuring reliability and high quality.
5. Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of materia for basic parts.
6. Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, ensuring high strength and durability.
7. Main gears are machined by gear grinding, ensuring high precision and low noise.
Standard accessories:
Box shape worktable, Taper sleeve, Tool releasing wrench, Drift, Eyelet bolts
Radial drilling machine is a type of drilling machine where the radial arm can rotate and lift around the column, and the spindle box usually moves horizontally on the rocker arm. When machining holes on a vertical drilling machine, the alignment between the tool and the workpiece is achieved through the movement of the workpiece, which is obviously very inconvenient for some large and heavy workpieces; The radial drilling machine can be aligned by moving the position of the tool shaft, which brings great convenience to machining holes on large and heavy workpieces in single and small batch production.
It can also be called a radial drill. It is a hole processing equipment that can be used for various forms of processing, such as drilling, expanding, reaming, tapping, and scraping the end face. According to the clamping structure of machine tools, radial drills can be divided into hydraulic radial drilling machines and mechanical radial drilling machines. Among various types of drilling machines, radial drilling machines are easy to operate, flexible, and have a wide range of applications. They are typical and particularly suitable for single piece or batch production of holes with large porous parts. They are common machine tools in general mechanical processing workshops.

---
