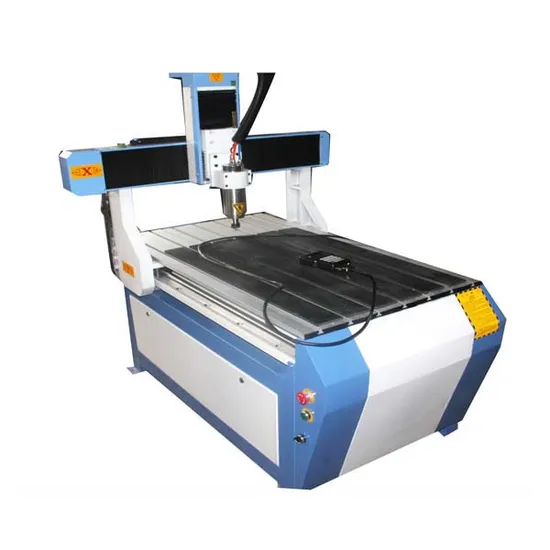

Small Desktop Mini CNC Router Machine Price

Product Description

6090 Small advertising automatic knife changer
Specification

Model	ZHONGKE-6090 cnc router machine
Effective working area	600*900mm
Max.feeding height of Z axis	200mm
Whole structure	Welded steel tube structure
Table style	Aluminum T-slot table with PVC
Guide rail	Hiwin sqaure linear guide rail
Driving method	Double nut TBI Ball screw for X,Y axis
Spindle	1.5 KW water cooling spindle
Invert	Fuling invert
Collect size	ER16
Spindle speed	0-24000rpm
Motors and drivers	86BYG-450B stepper motors and MA860H Leadshine drivers
Dust proof	Dust proof for X,Y,Z axis
Control system	Ncstudio control system
Working Accuracy	<0.03/300mm
Working speed	<7000mm/min
Traveling speed	0-7000mm/min
Instruction format	G code *.u00 *.mmg *.plt
Working voltage	AC220V, Single Phase, 50-60Hz
Standard Software	Artcam 2010
Compatible software	Type3/Castmate/Coreldraw/AutoCAD or other CAM/CAD software
Environment temperature	0-45ºC
Environment humidity	30%-75% No coagulate water
Too sensor	Yes
Others	English manual,Tool box,Tool sensor,etc.
Optional parts	1,Rotary axis for engraving round wood:price depends on its diameter 2,2.2kw water cooling spindle 3,Water tank for cutting soft metal 4,Mach3 USB control system

Feature 1. Adopts welded steel tube mechanical structure and imported linear orbit.big loading capacity, gantry moving, good moving stability, high precision and long lifetime.
2. Optional DSP or NC control system ,easy to operate,it is able to continue engraving when the electricity and with the function of forecasting process time.
3. Adopts high frequency spindle ,ensure to well engrave and cut ,long lifetime.
4. Be compatible with several CAD/CAM designing software, Type3,ARTCAM .JD, Master CAM,UG,Castmate ,etc
5. The 6090 cnc router can be equipped with water cycle working table ,ensure to process many materials.
6. Adopts stepper motor and driver, high speed ,good moving and low noise(servo motor and driver is also available)
7. Optional rotation axis,expand the processing materials and improve the added value of products.
Sample photos
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.
We could package according to your requests.

Delivery Details:
1. Shipped in 3-15 working days after payment.
2. We always transport the machine by sea, but it's a mini cnc router, the weight and volume is small, if you want receive the goods more quickly, we can transport the goods by air.
Our Services
1. 24/7 service is available to each customer. And if any technical questions or problems,our engineers will help you and give you solutions on the phone or by face-to-face communication online.

2. Professional staff for installation and training if needed.

3. Spare parts are supplying on time or doing some inventory if promising certain sales volume.

4. Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient and helpful.

---
