| US$640,000.00-650,000.00 | 1 Set (MOQ) |
| Pulping equipment It is the equipment used in the process of separating plant raw materials into fibers. The pulping methods can be divided into chemical method, mechanical method, and chemical mechanical method, and the corresponding pulping equipment includes digesters, wood grinders, thermal mills, pulp washing machines, bleaching machines, beating machines, and waste liquid recovery equipment. The pulp produced by pre heating wood slices with steam and then grinding them under high pressure is called hot wood chip ground wood pulp. The machine used to manufacture hot wood chip ground wood pulp is a thermal mill, which consumes a lot of electricity. Therefore, fully utilizing the heat energy during the grinding process is the key problem of the thermal mill; A pulp washing machine is a mechanical device that separates digested pulp from black liquor. According to the extraction rate of black liquor, it can be divided into two categories: high concentration and low concentration extraction. The purpose of pulp bleaching is to remove residual lignin and pigments from the pulp after cooking, improve the whiteness of the pulp, and give the pulp a clean white color. Bleaching machine is a widely used bleaching equipment, which consists of components such as a spiral propeller of the bleaching pool and a washing drum. The slurry and bleach are placed in the pool and continuously added with washing water. With the help of a screw propeller, they circulate and flow in the pool, completing the process of mixing and chemical reactions. The water containing bleach products and residual bleach is discharged through the inner chamber of the washing drum, resulting in a clean white pulp. |
| paper machine It is a complete set of equipment that enables the formation of paper pulp into a web, including a headbox, a mesh section, a pressing section, a drying section, a calender, a paper rolling machine, a transmission section, and auxiliary systems such as steam, water, vacuum, lubrication, and heat recovery. The web part that forms the wet web is the core of a paper machine, so paper machines can be divided into long web paper machines, sandwich web paper machines, and circular web paper machines according to the structure of the web part. Headbox is a device that evenly and stably delivers slurry of appropriate concentration to the network through components such as a slurry distributor, rectification device, weir pool, weir plate nozzle, etc., also known as a net front box; After the slurry is sprayed from the headbox onto the copper mesh, it forms wet paper sheets on the mesh and undergoes dehydration; Afterwards, there is pressing, which involves using mechanical methods to squeeze out the moisture from the wet paper pages that come out of the mesh, increasing the dryness of the paper pages, improving the surface properties of the paper pages, eliminating mesh marks, and increasing smoothness, tightness, and strength; Then, it enters the drying process to further dehydrate the wet paper after being pressed, causing the paper to contract, tightly bind the fibers, and increase strength. The paper produced by the dryer can be calendered by a calender to improve the smoothness, glossiness, and tightness of the paper, ensuring consistent thickness across the entire width and reducing air permeability; Finally, the main process of papermaking is completed by rolling the paper web into paper rolls using a paper rolling machine. In order to meet different needs in the future, there are also super calenders, rewinders, and paper cutting machines behind the paper rolling machine in the paper making workshop |

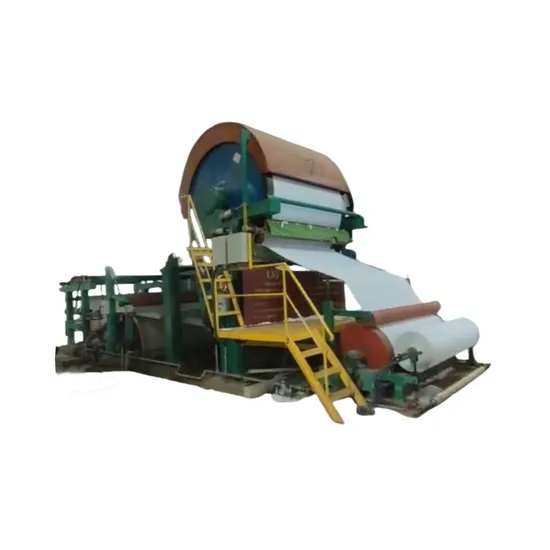

| The toilet paper production line from waste paper and bamboo etc includes two main parts: 1.Recycled Pulp/Chemical Paper Pulp System. 2.Jumbo roll forming (toilet paper making machine) |
| Paper making machine technical specification: | |
| Main Product: | Toilet paper, napkin paper and drawing and so on |
| Grammage: | 13~30g/ |
| Equipment form | The inversion of slurry |
| Capacity: | 5~6T/24h |
| Raw paper width: | 1880-1950mm |
| Design speed: | 180m/min |
| Transmission speed: | 70-150m/min |
| Dynamic balancing speed: | 300m/min |
| Roller balance: | G2.5 class |
| Dryer balance: | C4 class |
| Winding paper roll: | C1.6 class |
| Transmission mode: | Ac motor frequency control of motor speed digital distribution transmission |
| Arrangement mode: | Right or left arrangement(selected by the user) |
| Gauge: | 2800mm |
| 15.Large equipment 1 | Dryer cylinder:Ø2500mm×1 set |
| 16.Large equipment 2 | Cylinder mould:Ø1800 mm×1se |
| < PRE-SALE > Highly inspecting equipments in every working procedure, quality comes first; Fast & Safe Delivery; Assisting our clients for foundation construction of equipments; Dispatching engineers to install and debug equipments; Training the first-line operators on site; Regularly visit clients to solve production problems; Providing life-long maintenance service; < IN-SALE >small toilet paper production line We strictly in accordance with the production system, never let defective or substandard products affected parts of the product; Due to mechanical products from a variety of bulky component parts, and therefore the need for strict to grasp the scale of the operation of the machine to be good, to ensure the life of the machine, increase the production capacity of the machine products. < AFTER-SALE >toilet tissue production line Offering comprehensive technical and business consultation services; Proposing the most suitable scheme and equipment for our clients; Designing and fabricating targeted products according to the special requirements of clients; Training periodically high qualified service technician. |
| Qingdao YiDaFa International Trade CO.,LTD is located in Free Trade Zone,Qingdao city, Shandong Province,China. Our company registered capital of 5 million yuan,has rich paper machine design and experience. Our company can provide tissue paper machine, office copy,A4 paper machine, toilet paper making machine, kraft paper making machine, white board paper machine with different types, high quality,energy conservation and environmental protection and various pulping equipment, paper processing equipments and various accessories, spare parts,consumables. |
