2018 New Type Plastic Mixer/Plastic Raw Material Mixer/Plastic Mix Machine

Product Description

High output plastic mixer
Specifications 1.Use:plastic mixing,coloring,drying
2.Main material:stainless steel
3.Vol.:50/100--800/1600L
4.Cooling: water
5.Mixer unit
Plastic Mixer Unit

SRL series mixing unit is mainly used in mixing, coloring of polyvinyl chloride (PVC); coloring, drying of polyethylene and polypropylene grains; shaping of ABS, polycarbonate and other hydroscopic resin and drying before they are processed; mixing of phenolic resin and others.

The unit stirs and cools materials with function of avoid caking, degradation. Meanwhile, hot-mixed materials continuously seeps into plastic resin and remained gas is got rid of materials.

Main Technical Data

Item no.	SRL-Z100/200A	SRL-Z300/600A	SRL-Z500/1000A	SRL-Z800/1600A
Volume(L)	100/200	300/600	500/1000	800/1600
Effective volume(L)	75/160	225/360	375/640	560/1100
Rotating speed(rpm)	650/1300/180	475/950/130	430/860/50	370/740/50
Motor power(kW)	14/22/7.5	40/55/11	55/75/15	83/110/22
Heating power(kW)	6	9	9	9
Cooling medium	Water
Discharge method	Pneumatic

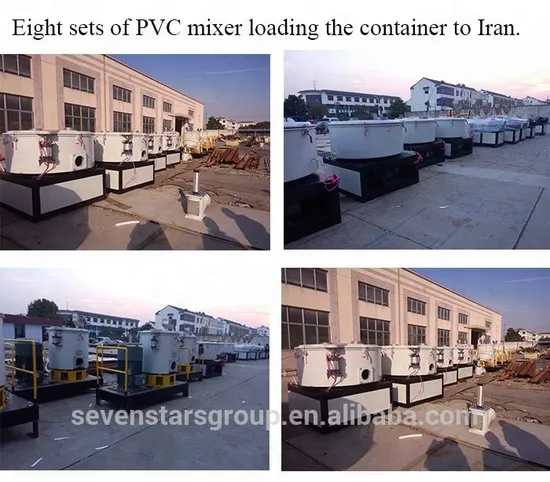

Detailed Images
Company information Zhangjiagang Sevenstars Machinery Co.,Ltd. was founded in 2006. it is an enterprise specialized in producing plastic machinery.it lies to the south of the middle and lower reches of Yangtze River.It is located in the National civilization and hygienic city-zhangjiagang , Surrounded by the economic belt of Suzhou,Wuxi,Changzhou,Nanjing and Shanghai.Both land and river transports are rather convenient.We sell our products to Europe middle,Africa and Asia,etc country and region.Our products enjoy a high reputation home and abroad.




Contact Info Contact: Sunny
Mobil:0086-15862613365 AliWangwang:cn200083648

---
