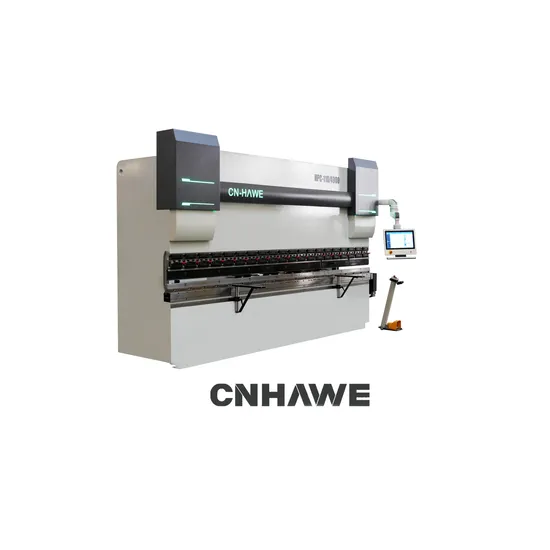

Cnhawe Economic CNC Hydraulic 4+1/6+1 Multi Axis Press Brake Bending Machine for Precision Bending Applications with System Optional (Delem, Esa, Cybelec)

Product Description

Product Description
HPC EconomiAc CNC Press Brake
Press brakes are indispensable stalwarts in the domain of sheet metal processing, expertly transforming metal sheets into precise shapes and angles with applied pressure. These crucial machines comprise key components such as a robust workbench, an intricately crafted mold, and an advanced power system. The workbench offers unwavering support for the sheet, while the mold is engineered with meticulous precision to perfectly match the desired configurations. Meanwhile, the power system provides exacting pressure and motion control to assure accurate bending. The precision and unwavering stability of these press brakes are of paramount importance, directly influencing the exceptional quality of the finished parts. Thus, their design and manufacturing are executed with uncompromising standards, ensuring excellence in every operation.After over a decade of relentless innovation, CNHAWE's cutting-edge electro-hydraulic servo control technology has soared to unprecedented heights. Within the industry, its seamless fusion with press brakes has heralded a revolutionary era, continually driving forward the evolution of the sheet metal fabrication sector.Product Parameters

Model	Bending Force	Bending Length (A)	Oil Tank	Approaching Speed	Progress Rate	Return Speed	Column Distance (B)	Throat Depth (C)	Slider Travel (D)	Open Height (E)	Weight	Dimensions
Unit	KN	mm	L	mm/s	mm/s	mm/s	mm	mm	mm	mm	Ton	L*W*H (mm)
HPC-65/2500	650	2500	200	240	20	240	2150	350	180	450	4.14	2710*1400*2400
HPC-110/3100	1100	3100	230	220	14	180	2600	410	220	490	7	3260*1540*2610
HPC-110/4000	1100	4000	230	220	14	180	3300	410	220	490	8.1	4060*1540*2610
HPC-135/4000	1350	4000	230	220	14	180	3300	410	220	490	8.3	4060*1540*2610
HPC-160/3100	1600	3100	230	200	16	180	2600	410	220	490	8.6	3270*1550*2700
HPC-160/4000	1600	4000	230	200	16	180	3300	410	220	490	9.9	4070*1550*2700
HPC-250/3100	2500	3100	230	140	12	160	2600	410	220	490	11.24	3280*1930*2740
HPC-250/4000	2500	4000	230	140	12	160	3300	410	220	490	12.8	4080*1930*2740

Detailed Photos
CNC Controller
Thanks to the integration of manual quick clamps, changing upper punch tools on our press brake is now swift and effortless. This ingenious innovation not only saves precious time but also significantly amplifies operational efficiency, empowering operators with unmatched convenience.Main Servo Motor
Leading the charge in industrial automation, servo motors deliver unparalleled dynamic performance, enhancing machine productivity while minimizing energy consumption. They are the preferred choice for countless enterprises, offering up to a 35% reduction in energy usage compared to traditional motors. This enables customers to elevate efficiency and drastically reduce operating costs during production, setting a new benchmark for sustainable operations.Moreover, we provide high-efficiency Siemens motors from Germany, tailored for standard production needs. These motors far exceed conventional standards, remarkably boosting work efficiency with their advanced technology and design, ensuring reliable performance across various operational conditions. Oil Pump
Constructed from high-strength cast iron, CNHAWE's oil pump epitomizes stability and reliability under high pressure and heavy loads. Its unique internal configuration maximizes efficiency with a precise mechanical design and advanced process flow. Notably, this oil pump excels in noise reduction, providing a quieter working environment, and possesses low sensitivity to oil pollution, maintaining optimal functionality even in impurity-filled atmospheres, thereby significantly extending its operational lifespan.Ball Screw & Guide
Our equipment is equipped with high-precision ball screws and linear guide rails, guaranteeing flawless and reliable performance. Collaborations with esteemed brands from Japan and Taiwan, China, bolster the stability of motion control in our press brake, elevating performance standards.
Servo Hydraulic System
Our CNC press brake features a comprehensive servo hydraulic system, encompassing vital components such as motor, oil pump, filter elements, valve group, hydraulic cylinders, and oil tank. Partnered with HAWE, a distinguished German manufacturer renowned for high performance and low failure rates, we ensure a formidable foundation for our system. Furthermore, our hydraulic control system integrates an electro-hydraulic servo synchronization design, minimizing intervals between hydraulic cylinders. This design enhances resistance to eccentric loads, assures precise synchronization, and demonstrates outstanding power density ratios, all achieved at a reduced cost, offering unparalleled value.FAQ
Q1: How to get an accurate quotation from us?
A1: Please provide us with detailed information on the material, maximum thickness, and maximum width.
Q2: Can you provide OEM service?
A1: Yes, we can. Your design is accepted and your logo can be used on the machine.
Q3: How much is the shipping cost from China to your country?
A3: We can send the machine to your port or door address by sea or air. Please tell us your nearest port or address and zip code. We have reliable shipping agents to ensure safe, convenient, and on-time delivery.
Q4: How to operate this machine?
A4: Video line from our factory or we send you the video directly.
Q5: Do you provide teaching and training?
A5: Training in supplier factory.

---
