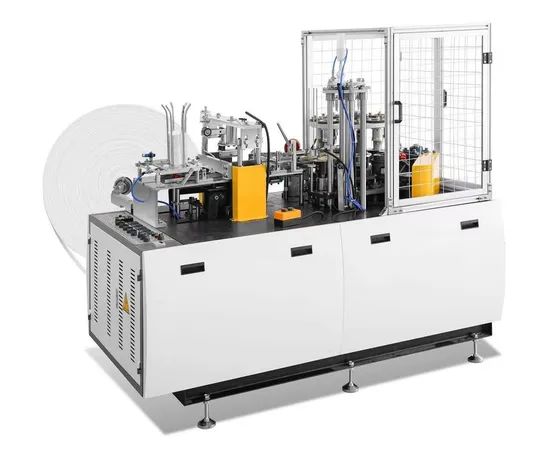

Strong Structure Thin Single Double PE Paper Cup Making Machine

Product Description

Introduction:
The new paper cup forming machine is a fully automatic paper cup forming equipment, through multi-row automatic paper feeding, paper anti-return device (to ensure accurate positioning), ultrasonic welding or electric heating welding, oil injection, mechanical hand paper tube transfer, cup feeding, punching bottom, bottom folding, preheating, knurling, hemming, cup closing and other continuous processes can stably produce paper cups of various specifications.
Product Made from Machine:
Main Technical Parameters:

Model	LB-CL 100 Model
Weight	1600KG
Specification	1950x1100x1400
Power	380V,4.5KW (we can provide 220V as you want)
Capacity	90-110Pcs/Min
Paper Specification	Single PE/Double PE
Paper Thickness	150-350g/m2
Specification	(A)φ45-75mm	(B)φ35-87mm
	(C)φ30-55mm	(D)φ4-8mm
Electric Parts	Frequency	Huifeng
	Sensor	Ruixiang
	Relay	France Schneider
	Main Motor	Zhejiang
	Turned Edge	Zhejiang
	Cylinder	Kogel
Pneumatic Elements	Driving Shaft	40CR Slack Quench
Mechanical Configuration	Straight line Ray Axis	Hard Axis
	Grooved Sheave	Wenzhou
	Blade Mould/Knurling	CR12Quenching/40CR Nitridize
	Cam	Digital Control Processing +Nitridize
	Turn Tbale	Aluminum Alloy

Machine Detailed Pic for Reference:
Packing and Loading of Container:

---
