Factory Price Horizon UV China Metal Engraving Printer Laser Marking Machine Dpx-UV3

Product Description

Product Description
Laser UV laser marking machine system main advantages:1. Because the focusing spot of UV laser is very small, and the heat-affected area of processing is small too, so it can do the ultra fine marking and special material marking, and it is for the customers who have higher request on the marking effect.2. Flexible and convenient operating system: the humanized operation process, equipment operation stability is very good; Special control software can be compatible with AutoCAD, CorelDRAW, Photoshop and other software output; Can realize the text symbols, graphics, images, bar codes, 2D code, serial number and other automatic choreography and modification; Support the PLT, PCX, DXF, BMP, JPG, and other file formats, can directly use TTF word stock.

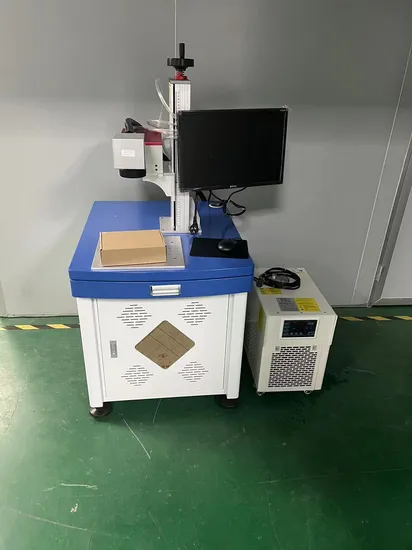

Detailed Photos

Appication
High-end electronic logo marking: charger, wires, mobile phone accessories, computer accessories; Food, PVC pipes, pharmaceutical packaging materials (such as HDPE, PO, PP) marking; Flexible PCB marking; Metal or nonmetal coating removal; Porous silicon wafers and the blind hole processing and scribing; Fire prevention materials marking; Other plastic material marking.

Product Parameters

Model	UV-3/UV-5/UV-8
Power	3W,5W,8W
Wavelength	355nm
Beam Quality	M2<1.3<>
Output Power	10%-100%
Output Frequency	15KHz-100KHz
Power Stability(8h)	<±2%rm<>
Pulse to pulse instabilit	<±3%rms<>
Spatial Mode	TEMoo(M2<1.3)<>
Beam Divergence	<2 mrad="">
Beam Diameter	0.6±0.1mm
Beam Roundness	>90%
Pointing stability	<50urad<>
Polarization Direction	Horizontal
Polarization Ratio	100:1
Cooling	Air-cooling/Water-cooling(8W)

UV laser marking machine Features1. The high beam quality and light spot is very small, can realize the ultra fine and precise engraving;2. Perfect marking quality: 355 nm wavelength output to reduce the thermal effect of machined part; high precision galvanometer marking head, fine marking effect and it's able to repeatable processing; High precision light spot ensure the perfect marking results; Marking process non-contact, marking effect is permanent;3. Heat affected area is very small, there will be no heating effect, material is not deform and burning;4. Fast marking speed, and high efficiency5. The whole machine performance is stable, small volume and low power consumption.6. More suitable to process the materials of big reaction thermal radiation; Cooperate with production line, automatic up-down , and automatic feeding and unloading;
Certifications

Our Advantages
After Sales Service
1. 7*24 hour 2. Response time<12 hours 3.Online support 4.Product replacement 5. Customer field service 6. Backup products during repairing for long time cooperators * International warranty ONLY valid if products are purchased directly from Horizon Laser or authorized local distributors/agents.
FAQ
1. What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
2. What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
3. Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.

---
