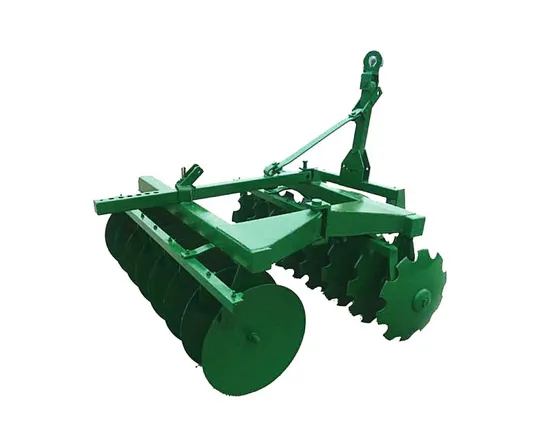

Farm Tractor Plough Harrowing Disc Heavy Compact Model Disc Harrow

Product Description

Product Description
Our main products include DISC HARROW,DISC PLOUGH,CULTIVATOR,SHARE PLOW.FARMTRAILER,GRASS MOWER,SEEDER,HARVESTER,DISS BLADE,BREAK SHOVEL AND OTHER AGROPARTS,ESPECIALLY IN HEAT TREATMENT OF THE BLADE.WE HAVE ACCUMULATED RICHEXPERIENCE,THE PRODUCTION OF BLADE WITH EXCELLENT TECHNOLOGY AND RELIABLEQUAL-ITY HAS WON THE CUSTOMER'S WIDELY RECOGNIZED. Mounted light duty disc harrow is used in open field working for the superficial ploughing, for the shattering of clods, preparation of soil for sowing, burial of organic substances and remains. It can be used in light and medium soil. The disc plough is completely mounted with tractor .During operation ,the disc is rotating to turn the soil ,it is suitable for opreation on the field with grasses ,straw and stems of crops or plants ,ect. It is good at cutting the grasses and straw and free from stopped by the grasses ,soil or stones,ect. It is efficient in the work ,it is good quality during operation ,it is easy to adjust and duabble.
If there is any needs or questions, feel free to contact me via email or phone.
Detailed Photos
Product Parameters

Model	1BJX-1.4A	1BJX-1.6A	1BJX-1.8A	1BJX-2.0A	1BJX-2.3A	1BJX-2.5A	1BJX-2.7A
Width of cut (mm)	1400	1600	1800	2000	2300	2500	2700
Depth of cut(mm)	140
Dia of disc	560/610
Qty of disc	12	14	16	18	20	22	24
Weight (kg)	440	490	550	590	620	650	720
Tractor power (hp)	30	40	50-60	60-70	70-80	80-100	90-110
Mounted cat	Cat II

Application
Packaging & Shipping
