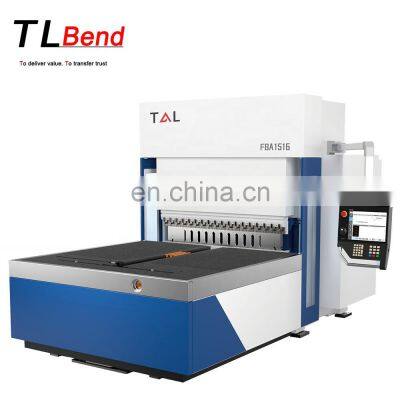

Company InformationCompany informationCompany: T&L (Shanghai) International Trading CO., LTD.Address: Wanda Plaza, Room 916,building 6, JiaDing District, Shanghai,201803,ChinaBrand: T&LContact: +86-15618396545Email: sales(at)Website: Facebook: /tuolugroups/Youtube: /channel/UCn9vu9S9ZtmdtQPEre9-Tjg Linkedin: /company/tuolumachinery Product DescriptionTechnical specifications l Max. sheet metal size:1520*1140mml Min. sheet metal size:250*200mml Max. bending height:165mml Max. bending length:1500mml Max. diagonal dimentions:1850mml Max. processing thickness:1.2mm(Q235A),0.8mm(SS),1.6mm(AL)l Min. processing thickness:0.5mml Max. Bending speed:0.3s/bend CNC bending machine, It has high quality, high speed and high efficiency bending function, and is generally suitable for automatic bending of box type sheet metal parts. CNC panel bending machine adopts servo-controlled folding and pressing device, 400 kN bending force, 1000 kN pressing/hemming force. Open structure for easy side unloading.The main motion of bending can be divided to 3 axis, which are respectively the pressing axis, up-and-down swinging axle and forward/backward moving axis. Under the control of CNC system, different motion paths can be run in any combination, thus forming different bending process combination.Universal bending dies, bending machine adopt it to realize positive and negative angle bending, large arc, hemming bending, and high efficiency bending of complex section workpiece. Made of die steel, the die adopts high precision processing technology ensures the accuracy and reliability of bending, and the special manufacturing technology ensures the small wear of the die. 1)positive bending 2)negative bending 3)hemming 4)large arc. Servo-driven bending device, three axis ganged, can achieve a variety of motion track efficient folding. For different materials, different thickness, system can automatically execute different gaps and trajectory. This equipment is energy-saving, environment-friendly, low energy consumption and low noise. Adopting advanced processing technology, processing efficiency is improved obviously, with stable and reliable mechanical structure. The pressing device adopts two-way servo pump control technology, with high speed and low energy consumption. Vertical motion to avoid the impact on the minimum size of the workpiece. The crowning compensation mechanism adopts the special patent structure and has the function of compensating the deformation of the horizontal crowning of die. Bending workpiece parameters ItemsUnitValueSketchB min mm250A min mm200H max mm165a,b(max) 40c,d(max) 30 Manipulator The functions of changing sides, rotating and moving are realized in the horizontal planeC-type structure, more flexible and freer spaceServo driver, linear guide, high precision Bending manipulator has the function of positioning and rotary transportation of sheet metal. The utility model is composed of a central positioning device, a rotating device, a clamping device, a mobile conveying device and a base. After the sheet is in place, it realizes the function of centering and pressing, and cooperates with the main machine of folding to realize various folding process actions. Main structure and features Company independently designs, imported key drive and control parts. The unit mainly consists of loading pallet, loading device, plate conveying device, flanging machine, feeding machine, discharging device and electrical control system. High strength frameThe frame adopts an open "C" structure, which is good for opening. The frame is made of steel structural parts, and after welding, the internal stress is removed by tempering the large tempering furnace.By finite element analysis, the frame has high strength and low deformation Mechanical servo bending systemUsing the link type flanging mechanism, high transmission rigidity and good precision can be achieved.Process adjustment is convenient. Under the control of numerical control system, various folding modes can be realized and have safety protection function.The stroke and speed of the servo folding beam can be adjusted according to the processing requirements, so that higher comprehensive folding efficiency and better folding quality can be achieved.Standard worktableComposite steel ball, brush work table, reduce resistance and surface damage effectively. Main parts list ItemsNameBrand1CNC systemGermany BECKHOFF2Feeding servo motor and driverTaiwan Delta3Linear guide and ball screwTaiwan PMI4Air processing quadJapanese SMC5BearingJapan NSK6Breaker, contactorGermanySiemens7ButtonFrance Schneider8Proximity switchGermany BALLUF Our Services1. Standard Service:Our factory provide the service for the customer forever, if the customer need operation help, can contact us by MSN, Skype, Email and Telephone at any time, we provide 24 hours on-line service.2. Installation:Our factory can send our engineer to the customer’s factory install, commission and training freely .The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.3. Quality Guarantee:Our guarantee time is 2 Years from B/L Date ,If any component is damaged during guarantee time,we can send the component to the customer By DHL,TNT freely.4. Order Processing: T&L Brand FBA Series CNC Intelligent and Automatic bending center Packaging & Shipping FAQ
>>
