US$35.00-40.00
|
50 unit
(MOQ)
|
Basic Info.
Number of Stator
Single-Phase
Casing Protection
Protection Type
Number of Poles
2 Pole or 4 Pole
Starting Mode
Variable Frequency Starting
Specification
335X200X270
Production Capacity
50000PCS/Year
Product Description
Advantage
1. Good performance
2. Safety & reliable operation
3. Nice appearance
4. Easy maintainance
5. Low noises
6. Little vibration
7. Light weight & simple construction.
Application:

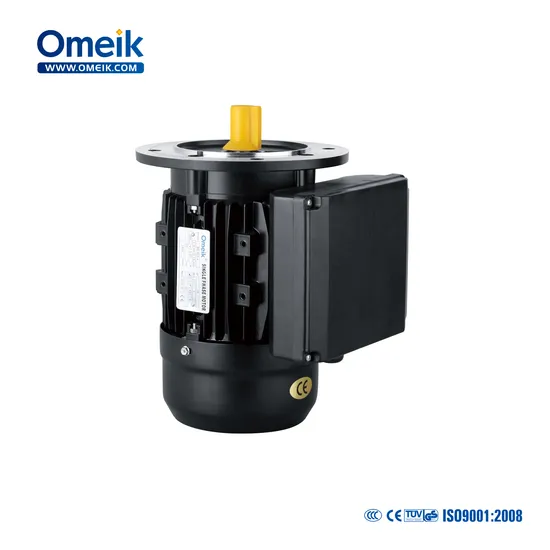

ML series small electric motors are suitable for the occasion where the requirements of big starting torque and high over load, such as air compressors, pumps, fans, medical apparatus and instruments, and many other small machines.
Operating Conditions:
1. Ambient temperature: -15 degree Celsius≤ θ ≤ 40degree Celsius
2. Altitude: ≤ 1000m
3. Rated voltage: 220V
4. Rated frequency: 50Hz/60Hz
5. Duty: Continuous(S1)
6. Insulation class: Class B/F
7. Protection class: IP44/IP54/IP55
8. Cooling method: IC0141
Note: If you have any special requirements, please contact us.
Model | Output | Current | Power | Eff | Speed | Tstart/Tn | Ist/In | Tmax/Tn |
KW | HP | (A) | Factor | (%) | (r/min) |
ML711-2 | 0.37 | 0.5 | 2.6 | 0.95 | 68 | 2760 | 2.2 | 6.5 | 1.7 |
ML712-2 | 0.55 | 0.75 | 3.71 | 0.95 | 71 | 2760 | 2.2 | 6.5 | 1.7 |
ML801-2 | 0.75 | 1 | 4.92 | 0.95 | 73 | 2780 | 2.2 | 6.5 | 1.7 |
ML802-2 | 1.1 | 1.5 | 7.02 | 0.95 | 75 | 2780 | 2.2 | 6.5 | 1.7 |
ML90S-2 | 1.5 | 2 | 9.32 | 0.95 | 77 | 2800 | 2.2 | 6.5 | 1.7 |
ML90L-2 | 2.2 | 3 | 13 | 0.95 | 78 | 2800 | 2.2 | 6.5 | 1.7 |
ML100L-2 | 3 | 4 | 18.2 | 0.95 | 79 | 2820 | 2 | 7 | 1.7 |
ML112M-2 | 3.7 | 5 | 22.1 | 0.95 | 80 | 2820 | 2 | 7 | 1.7 |
ML711-4 | 0.25 | 0.33 | 1.9 | 0.95 | 63 | 1360 | 2.2 | 6.5 | 1.7 |
ML712-4 | 0.37 | 0.5 | 2.64 | 0.95 | 67 | 1360 | 2.2 | 6.5 | 1.7 |
ML801-4 | 0.55 | 0.75 | 3.76 | 0.95 | 70 | 1380 | 2.2 | 6.5 | 1.7 |
ML802-4 | 0.75 | 1 | 4.98 | 0.95 | 72 | 1380 | 2.2 | 6.5 | 1.7 |
ML90S-4 | 1.1 | 1.5 | 7.11 | 0.95 | 74 | 1400 | 2.2 | 6.5 | 1.7 |
ML90L-4 | 1.5 | 2 | 9.44 | 0.95 | 76 | 1400 | 2.2 | 6.5 | 1.7 |
ML100L1-4 | 2.2 | 3 | 13.7 | 0.95 | 77 | 1410 | 2 | 7 | 1.7 |
ML100L2-4 | 3 | 4 | 18.4 | 0.95 | 78 | 1420 | 2 | 7 | 1.7 |
ML112M-4 | 3.7 | 5 | 22.4 | 0.95 | 79 | 1420 | 2 | 7 | 1.7 |
SPARE PARTS:
PACKING WAYS
FAQ Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.
Q: What certifiicates do you have?
A: We have CE, ISO. And we can apply
>>
