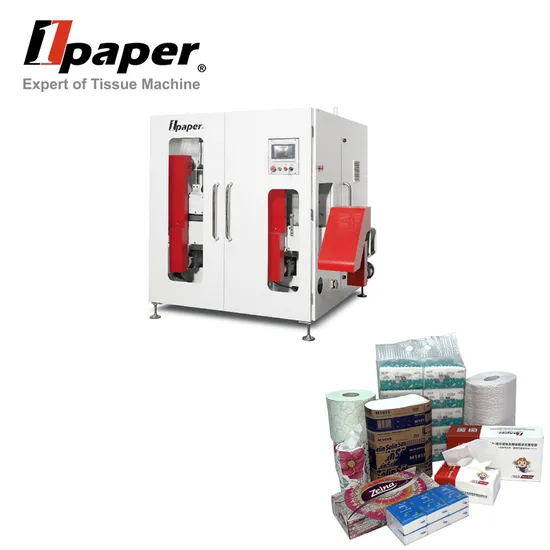

Fully Automatic Pocket Tissue Machine for High Speed Production Tissue Paper

Product Description

Product Description
Onepaper Tissue Machine is one of the world's leading providers of professional integrated solutions and services for production in the tissue making industry.
Onepaper has over 15 years tissue converting machine manufacturing experience since 2010. We're the top 1 tissue converting machine manufacturers in China. We are positioned to do high grade tissue converting machines.
As the leading manufacturer, Onepaper is the only chinese provider who can supply european quality tissue machine. High-precision parts, full adoption of european stardard digital solutions.
Onepaper Tissue Machine supply kinds of full automatic tissue production line.As facial tissue production line,napkin production line,roll tissue production line,toilet paper & kitchen roll production line,bottom paper towel production line,cotton towel production line,car tissue production line,sanitary napkin production line......
Onepaper tissue machines are suitable for facial tissue,box tissue,car tissue,bottom pulling tissue,cottom tissue,paper towel,napkin,toilet roll,kitchen roll,maxi roll,wet wipes & sanitary napkin.
A complete fully automatic tissue production line includes that fully automatic tissue folding machine,fully automatic tissue log saw cutting machine,fully automatic tissue single packaging machine and fully automatic tissue bundler packing machine.

Machine	Speed
Fully Automatic Tissue Folding Machine With Full-servo	120 m/min
Fully Automatic Tissue Log Saw Cutting Machine With Full-servo	360 cut/min
Fully Automatic Tissue Single Packaging Machine With Full-servo	120-220 bags/min
Fully Automatic Tissue Bundler Packing Machine With Full-servo	10 bags/min

Step 1 Is For Fully Automatic Tissue Folding Machine

Fully Automatic Tissue Folding Machine
Model		OPFD-1450	OPFD-1650	OPFD-2050
Folded form		V-fold	V-fold	V-fold
Standing roll		2standard,can be added according to customer requirements	2standard,can be added according to customer requirements	2standard,can be added according to customer requirements
Max.width of jumbo roll		1500mm(7 rows)	1700mm(8 rows)	2100mm(10 rows)
Max.diameter of jumbo roll		1500mm	1500mm	1500mm
Inner diameter of jumbo roll core		3 inches(≈φ76mm)	3 inches(≈φ76mm)	3 inches(≈φ76mm)
Jumbo roll basis weight		12-16g/m²(2 layers),18-22g/m²(1 layer)wood pulp paper,35-80 square meters of non-woven fabric(1 layer)	12-16g/m²(2 layers),18-22g/m²(1 layer)wood pulp paper,35-80 square meters of non-woven fabric(1 layer)	12-16g/m²(2 layers),18-22g/m²(1 layer)wood pulp paper,35-80 square meters of non-woven fabric(1 layer)
Folded size		175-210mm Customized within the scope according tocustomer requirements	175-210mm Customized within the scope according tocustomer requirements	175-210mm Customized within the scope according tocustomer requirements
Folding speed		≤120 m/min	≤120 m/min	≤120 m/min
Fan power		22KW/30KW	37KW	37KW
Motor power		22.75KW	22.75KW	20.75KW
Power supply type		Three-phase five-wire 380V 50Hz	Three-phase five-wire 380V 50Hz	Three-phase five-wire 380V 50Hz
Machine noise		≤90dB	≤90dB	≤90dB
Air supply		0.5-0.8 MPa	0.5-0.8 MPa	0.5-0.8 MPa
Air consumption		200-260L/min	200-260L/min	200-260L/min
Outline dimensions	Main machine	L3650×W3000×H2250mm	L3650×W3200×H2250mm	L3650×W3830×H2250mm
	Conveying mechanism	L3400×W3000×H2350mm	L3400×W3000×H2350mm	L4850×W2700×H3400mm
Machine weight		4000Kg(2000KgMain machine+720Kg Conveying mechanism+1280Kg Standing roll)	4780Kg(2500KgMain machine+1000Kg Conveying mechanism+1280Kg Standing roll)	9000Kg(3500KgMain machine+1500Kg Conveying mechanism+4000Kg Standing roll)

Onepaper fully automatic tissue folding machine provides any nice embossing function if needed.As edge embossing,full embossing,frame embossing,glue lamination,non-glue lamination (steel-to-steel,steel-to-rubber,point-to-point).
Step 2 Is For Fully Automatic Tissue Log Saw Cutting Machine

Fully Automatic Tissue Log Saw Cutting Machine
Model	OPQ-358
Original paper width	260-2000mm
Cutting speed	0-360cut/min
Diameter of blade	Ф610mm
Blade speed	1350R/min
Cutting length	90-300mm
Finished products heigth	20-150mm(20-250mm)
Cutting waste size	≥20mm
Total power	6.02KW
Power supply type	Three-phase five-wire 380V 50Hz
Air supply	0.5-0.6MPa
Outline dimensions	2000mm×1880mm×1960mm
Machine weight	2000Kg

Onepaper fully automatic tissue log saw cutting machine with nice cutting & protecting function,so it can cut high quality tissue papers with needed sizes.
Step 3 Is For Fully Automatic Tissue Single packaging Machine

Fully Automatic Tissue Single Packaging Machine
Model			OPR-228S	OPR-158S	OPR-128S	OPR-118S
Packaging form			Three-dimensional
Packing material			CPP film,PE film,BOPP film
Packing specification		Length	90-200mm	90-200mm	90-200mm	100-230mm
		Width	80-110mm	80-110mm	80-110mm	80-110mm
		Height	20-100mm	20-100mm	20-100mm	30-150mm
Maximum packing dimensions			L200×W100×H100mm	L200×W100×H100mm	L200×W100×H100mm	L230×W110×H150mm
Packing speed			≤220(bags/minute)	≤150(bags/minute)	≤130(bags/minute)	≤120(bags/minute)
Heating power			6.5KW	6.5KW	6.5KW	6.5KW
Motor power			21KW	16.00KW	16.00KW	16.00KW
Total power			27.5KW	22.5KW	22.5KW	22.5KW
Power supply type			Three-phase five-wire 380V 50Hz	Three-phase five-wire 380V 50Hz	Three-phase five-wire 380V 50Hz	Three-phase fIve-wire 380V 50Hz
Machine noise			≤80dB	≤80dB	≤80dB	≤80dB
Air supply			0.5-0.8 MPa	0.5-0.8 MPa	0.5-0.8 MPa	0.5-0.8 MPa
Air consumption			200-260L/min	200-260L/min	200-260L/min	200-260L/min
Outline dimensions	Main machine		L3950×W1400×H1950mm	L4050×W1400×H1915mm	L4050×W1400×H1915mm	L4050×W1400×H1915mm
	Conveying mechanism		L3350×W750×H1560mm	L3850×W750×H1420mm	L3850×W750×H1420mm	L3850×W750×H1420mm
Machine weight			3900Kg	3500Kg	3500Kg	3500Kg

Onepaper fully automatic tissue single packaging machine with electric eye and air shaft function,it can tracking the precise measurements and fix the film roll,then nice packages are produced.
Step 4 Is For Fully Automatic Tissue Bundler Packing Machine

Fully Automatic Tissue Bundler Packing Machine
Model	OPZ-30
Output	Stable speed: 15-20 bags/min
Packing size	L150-500*W130-400*H75-110(mm)
Configuration	3-10 bags/packet
Mini air pressure requirement	5Mpa
Power supply	380V50HZ
Packing Film	PE precast bag
Surface	carbon steel
Power consumption	18KW
Machine size	L2600mm*W1500mm*H1950mm
Machine weight	2000kg
Color	white or customize

Onepaper fully automatic tissue bundler packing machine can have different kinds of package.
As 1 Row*3 Bags/Row,2 Row*2 Bags/Row,2 Row*3 Bags/Row,2 Row*4 Bags/Row,2 Row*5 Bags/Row.
Onepaper Tissue Machine Factory View
Fully Automatic Tissue Folding Machine Area
Fully Automatic Tissue Log Saw Cutting Machine Area
Fully Automatic Tissue Single packaging Machine Area
Fully Automatic Tissue Bundler Packing Machine Area
Onepaper Tisssue Machine adpot famous brands of machinery accessories which are from
European,American,UK & Japanese countries.
Finshed Products Are Showed.
Onepaper tissue machines are suitable for facial tissue,box tissue,car tissue,bottom pulling tissue,
cottom tissue,paper towel,napkin,toilet roll,kitchen roll,maxi roll,wet wipes & sanitary napkin.
Embossing & printing for facial tissue,box tissue,car tissue,bottom pulling tissue,
cottom tissue,paper towel,napkin,toilet roll,kitchen roll,maxi roll,wet wipes & sanitary napkin.
Onepaper tissue machines obtained CE certificate.
Onepaper tissue machines are already exported to many different countries.
As America(United Sates,Canada,Colombia,Mexico,Brazil...),Europe(UK,Spain,Greece,Czech Republic,Norway,
Poland,Russia,Ukraine,Azerbaijan,Turkey,Serbia...),Africa(Egypt,Sudan,Morocco,Ethiopia,Algeria,
Tanzania,South Africa,Angola,Kenya...),Asia(UAE,Saudi Arabia,Jordan,Iram,Iraq,Oman,Oatar,Yemen,Palestine,
Bahrain,Israel,Lebanon,Armenia,Vietnam,Pakistan,India,Indonesia,Cambodia,Thailand,South Korea,Japan...),Australia.
Onepaper Tissue Machine attended the exhibitions held in different countries.As America,Italy,Ruassia,Turkey,Saudi Arabia,Dubai,Iram,Egypt,Vietnam,Indonesia......
Onepaper tissue machines are well-knowned & hot sold for their high reliability and availability.
Onepaper Tissue Machine always deliver on time, provide very high-quality services, offer unbeatable and affordable prices, and offer high value, focusing on detail and prompt communication with the customers.
Onepaper Tissue Machine After Service After-sales service: long-term support for your machine
About Onepaper Quality Checks Before Shipment To Ensure Product Integrity And Compliance With Safety Regulations And Industry Standards Services After choosing a machine from Onepaper Applied Technologie, we can provide you with our comprehensive after-sales service. Our internal pre-acceptance starts as soon as the machine is ready for transportation.Our experts carefully and painstakingly check the entire machine for mechanical, electrical and safety-related checkpoints. The service technician performs the first part of the inspection by working through a detailed checklist covering aspects such as wiring and labelling. Our team then inspect the safety aspects, including safety doors, emergency stop circuits and access security. Once the internal pre-acceptance is complete, and provided there are no defects, we immediately inform the project manager about the positive status of the machine. The project manager can in turn directly contact you as the customer. You can then personally collect the fully operational machine from us. During this appointment, you also have the opportunity to discuss our spare parts and maintenance management. Our after-sales service is ready to help you at any time even if unscheduled support is required. You can share any concerns you may have with our service hotline team. About Onepaper Installation And Training Services Onepaper will send the greatest engineer to install the complete fully automatic tissue production line till it can produce high quality tissues.At the same time,our engineer will help you to train your staff to become an operations engineer. Cost for round flight and suitable accommodation will be charged , and the allowance is USD100 dollars per day. About Onepaper Warranty Services Onepaper offer a full one-year parts and labour warranty because we have complete trust and confidence in our machine. Onepaper provides a one-year limited warranty to our customers. If your machine is within the warranty period and is defective, contact your sales representative and we will offer a free repair except easy-damaged part. For detailed information, please see our Return, Repair, and Warranty Policy below. Return Policy Services No returns or refunds are accepted. Repair Policy Services To repair your unit, you must present a valid proof of purchase or invoice. Beyond Warranty Services Even after the warranty period has elapsed, we are still committed to providing support for your purchased machines.
FAQ Q: Are you a factory or a trading company?
A: We are a factory manufacturing tissue machine and we provide perfect OEM and after-sale service. We export machines to over 110 countries since 2010.
Q:Where is your factory located?May I have a visit?
A:We warmly welcome that you can visit us!Onepaper Tissue Machine Factory is located in Wenzhou City,Zhejiang Province,China.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have video of every standard machine and can send to you by Email or other way you want.
Q: How can I pay my order?
A: We accept T/T, L/C Payment to pay.
Q: Do you have any certificate?
A:We have passed ISO9001,ISO14001,ISO45001 and obtained CE certificate and other honors.
Q: When your company was founded?
A: Onepaper Tissue Machine was established in 2010.
Q:How about your warranty?
A: Our warranty is one year. Normally, the general after-sale service may be as below:
1) The technical support is permanent.
2) The paid spares parts could be provided at any time.

---
