16kw to 3000kw Weichai Diesel Power Generator for Land Use

Product Details

Product Description

Product Description

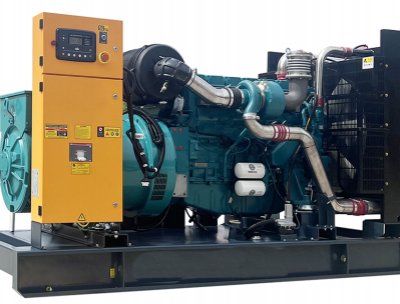

16kW to 3000kW diesel power generator sets powered by WEICHAI for land use
1.PRODUCT Feature
power range is from 16KW to 3000KWVA OUTPUT
Powered by WEICHAI water-cooled diesel engine
Alternator: MECCALTE,Leroy somer,Marathon,
AMF panel with ATS
Soundproof,weather proof,trailer type for optional
Manual of engine,alternator and control system
with two storage battery and silencer
Fuel tank for 8 H running based on frame
1 year or 1000 H guarantee
2.Specifications

WEICHAI 1500 rpm, 3-phase 4-wire, 230/400V, PF=0.8
Generator Set Model		Power (KW/KVA)		Standby Power		Engine		Maximum current(A)
Prime	Standby	KW	KVA	KW	KVA	WEICHAI	Power(kw)
SP-W16P-1	SP-W18S-1	16	16	17.6	17.6	WP2.3D25E200	23-25	77
SP-W25P-1	SP-W28S-1	25	25	27.5	27.5	WP2.3D33E200	30-33	120
SP-W20P	SP-W23S	16	20	18	22.5	WP2.3D25E200	23-25	32
SP-W23P	SP-W25S	18	23	20	25	WP2.3D25E200	23-25	36
SP-W30P	SP-W33S	24	30	26.4	33	WP2.3D33E200	30-33	48
SP-W38P	SP-W40S	30	37.5	32	40	WP2.3D40E200	36-40	58
SP-W45P	SP-W50S	36	45	40	50	WP2.3D48E200	44-48	72
SP-W60P	SP-W65S	48	60	52	65	WP4.1D66E200	60-66	94
SP-W72P	SP-W80S	58	72.5	64	80	WP4.1D80E200	72-80	115
SP-W80P	SP-W88S	64	80	70	87.5	WP4.1D80E200	72-80	126
SP-W94P	SP-W100S	68	85	72	90	WP4.1D100E200	90-100	130
SP-W100P	SP-W110S	80	100	88	110	WP4.1D100E200	90-100	159
SP-W125P	SP-W138S	100	125	110	138	WP6D132E200	120-132	199
SP-W150P	SP-W165S	120	150	132	165	WP6D152E200	138-152	238
SP-W170P	SP-W188S	136	170	150	187.5	WP10D167E200	150-167	271
SP-W200P	SP-W220S	160	200	176	220	WP10D200E200	182-200	318
SP-W225P	SP-W250S	180	225	200	250	WP10D238E200	216-238	361
SP-W250P	SP-W275S	200	250	220	275	WP10D238E200	216-238	397
SP-W250P	SP-W275S	200	250	220	275	WP10D264E200	240-264	397
N.A	SP-W340S	N.A	N.A	272	340	WP10D320E200	<320	491
SP-W313P	SP-W340S	250	313	272	340	WP12D317E200	288-317	491
SP-W375P	SP-W400S	300	375	320	400	WP13D385E200	350-385	577
SP-W400P	SP-W430S	320	400	344	430	WP13D405E200	<405	621
SP-W450P	SP-W500S	360	450	400	500	WP13D440E310	392-440	722
SP-W500P	SP-W550S	400	500	440	550	WP13D490E310	450-490	794
SP-W575P	SP-W630S	460	575	506	632	6M33D572E200	520-572	912
SP-W650P	SP-W725S	520	650	580	725	6M33D633E200	575-633	1046
SP-W675P	SP-W750S	540	675	600	750	6M33D670E200	610-670	1083
SP-W750P	SP-W825S	600	750	660	825	6M33D725E200	675-725	1191
SP-W800P	SP-W880S	640	800	704	880	12M26D792E200	720-792	1270
SP-W900P	SP-W1000S	720	900	800	1000	12M26D902E200	820-902	1443
SP-W1000P	SP-W1100S	800	1000	880	1100	12M26D968E200	880-968	1588
SP-W1125P	SP-W1250S	900	1125	1000	1250	12M33D1108E200	1007-1108	1804
SP-W1250P	SP-W1375S	1000	1250	1100	1375	12M33D1210E200	1100-1210	1985
SP-W1375P	SP-W1500S	1100	1375	1200	1500	12M33D1320E200	1200-1320	2165
SP-W1500P	SP-W1600S	1200	1500	1320	1650	12M33D1450E310	1350-1450	2382
SP-W1550P	SP-W1750S	1240	1550	1400	1750	16M33D1530E310	1390-1530	2526
SP-W1625P	SP-W1800S	1300	1625	1440	1800	16M33D1580E310	1440/1583	2598
SP-W1750P	SP-W1900S	1400	1750	1520	1900	16M33D1680E310	1530-1680	2742
SP-W1875P	SP-W2050S	1500	1875	1640	2050	16M33D1800E310	1680-1800	2959
SP-W2000P	SP-W2250S	1600	2000	1800	2250	16M33D1980E310	1800-1980	3248
SP-W2000P	SP-W2250S	1600	2000	1800	2250	20M33D2020E310	1850-2020	3248
SP-W2250P	SP-W2500S	1800	2250	2000	2500	20M33D2210E310	2010-2210	3609
SP-W2250P	SP-W2500S	1800	2250	2000	2500	12M55D2210E310	1985-2200	3609
SP-W2500P	SP-W2500S	2000	2500	2200	2750	12M55D2450E310	2200-2450	3969
SP-W2750P	SP-W3000S	2200	2750	2400	3000	12M55D2700E310	2420-2700	4330
SP-W3000P	SP-W3300S	2400	3000	2640	3300	16M55D2900E310	2646-2900	4763
SP-W3250P	SP-W3750S	2600	3250	3000	3750	16M55D3300E310	2900-3300	5413
SP-W3750P	SP-W4125S	3000	3750	3300	4125	16M55D3600E310	3300-3600	5954

Sale promise:
SINOSTAR Power provides a full line of brand new and high quality products. Each and every unit is strictly Factory tested.
Warranty is according to our standard conditions:
a, 15 months, counted on the day SINOSTAR sold to the first buyer;
b, One year after installation;
c, 1000 running hours (accumulated); subject to the earlier one.
Service and parts are available from SINOSTAR Power or distributors in your location.

---
