Top Quality Long Corner Radius End Mills with 2 Flutes

Product Description

Product Description
HRC60 Altin coated corner raduis carbide end mills
Micro grain raw materialGrain size: 0.4-0.6μmCo 10%, 12%TRS >3600 N/mm2Hardness HRA 91.8-92.5Work piece HRC45-50 HRC55-60 HRC65 HRC68Helix angle 30°-45 °Diameter of cutting edge 0.2-0.9 mm; 1-20 mmDiameter of rods 4-20 mmLength 50-100 mmCutting Form Flat, Square, Ball nose, Corner Radius, Taper Flute, etcFlutes No. 1-7

HRC45	HRC55	HRC60	HRC65
Grain Size:0.6um Co:10 % Flexural strength:3350N/mm2	Grain Size:0.6um Co:10 % Flexural strength:4000N/mm2	Grain Size:0.5um Co:12 % Flexural strength:4300N/mm2	Grain Size:0.4um Co:12.5 % Flexural strength:4300N/mm2

Product Name	R1.0x75L-4F solid carbide Corner Raudius End Mill
Material	Tungsten carbide
Coating	TiAlN/ AITiN/TiAlCN/TiSiN or customized
Standard	ISO
Specification	R1-R20
HRC	HRC 45/55/65
OEM	Supply
Use for	steel, stainless steel
Diameter	1-12mm or customized
Overall length	50-75mm or customized
All the specs. can be customized

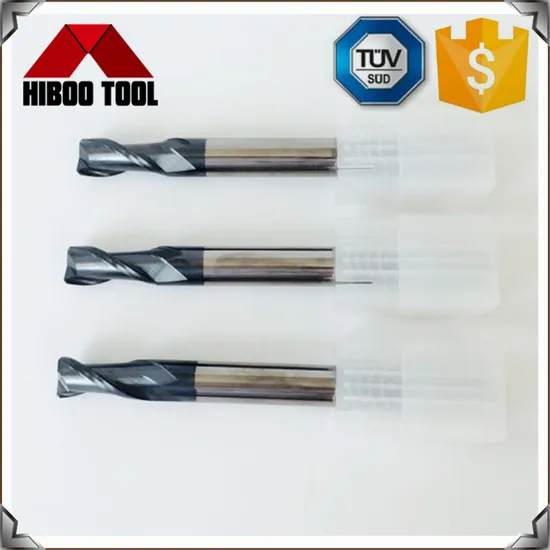

Product Show
Product Specification

order number	cutting	Flute	Shank	Corner	A.0.L
	d	l	D	R Corner	L
1×3×4D×R0.2×50L×4F	1	3	4	R0.2	50
1×3×4D×R0.3×50L×4F	1	3	4	R0.3	50
1.5×3×4D×R0.2×50L×4F	1.5	4	4	R0.2	50
1.5×3×4D×R0.3×50L×4F	1.5	4	4	R0.3	50
2×6×4D×R0.2×50L×4F	2	6	4	R0.2	50
2×6×4D×R0.3×50L×4F	2	6	4	R0.3	50
2.5×8×4D×R0.2×50L×4F	2.5	6	4	R0.2	50
2.5×8×4D×R0.5×50L×4F	2.5	6	4	R0.5	50
3×8×3D×R0.3×50L×4F	3	8	3	R0.3	50
3×8×3D×R0.5×50L×4F	3	8	3	R0.5	50
3×8×4D×R0.3×50L×4F	3	8	4	R0.3	50
3×8×4D×R0.5×50L×4F	3	8	4	R0.5	50
4×10×4D×R0.5×50L×4F	4	10	4	R0.5	50
4×10×4D×R1.0×50L×4F	4	10	4	R1.0	50
4×10×6D×R0.5×50L×4F	4	10	6	R0.5	50
4×10×6D×R1.0×50L×4F	4	10	6	R1.0	50
5×13×6D×R0.5×50L×4F	5	13	6	R0.5	50
5×13×6D×R1.0×50L×4F	5	13	6	R1.0	50
6×15×6D×R0.5×50L×4F	6	15	6	R0.5	50
6×15×6D×R1.0×50L×4F	6	15	6	R1.0	50
8×20×8D×R0.5×60L×4F	8	20	8	R0.5	60
8×20×8D×R1.0×60L×4F	8	20	8	R1.0	60
8×20×8D×R1.5×60L×4F	8	20	8	R1.5	60
10×25×10D×R0.5×75L×4F	10	25	10	R0.5	75
10×25×10D×R1.0×75L×4F	10	25	10	R1.0	75
10×25×10D×R1.5×75L×4F	10	25	10	R1.5	75
10×25×10D×R2.0×75L×4F	10	25	10	R2.0	75
12×30×12D×R0.5×75L×4F	12	30	12	R0.5	75
12×30×12D×R1.0×75L×4F	12	30	12	R1.0	75
12×30×12D×R1.5×75L×4F	12	30	12	R1.5	75
12×30×12D×R2.0×75L×4F	12	30	12	R2.0	75
3×8×3D×R0.3×75L×4F	3	8	3	R0.3	75
3×8×3D×R0.5×75L×4F	3	8	3	R0.5	75
3×8×4D×R0.5×75L×4F	3	8	4	R0.5	75
3×8×4D×R1.0×75L×4F	3	8	4	R1.0	75
4×10×4D×R0.5×75L×4F	4	10	4	R0.5	75
4×10×4D×R1.0×75L×4F	4	10	4	R1.0	75
4×10×6D×R0.5×75L×4F	4	10	6	R0.5	75
4×10×6D×R1.0×75L×4F	4	10	6	R1.0	75
5×13×6D×R0.5×75L×4F	5	13	6	R0.5	75
5×13×6D×R1.0×75L×4F	5	13	6	R1.0	75
6×15×6D×R0.5×75L×4F	6	15	6	R0.5	75
6×15×6D×R1.0×75L×4F	6	15	6	R1.0	75
8×20×8D×R0.5×100L×4F	8	20	8	R0.5	100
8×20×8D×R1.0×100L×4F	8	20	8	R1.0	100
8×20×8D×R1.5×100L×4F	8	20	8	R1.5	100
10×25×10D×R0.5×100L×4F	10	25	10	R0.5	100
10×25×10D×R1.0×100L×4F	10	25	10	R1.0	100
10×25×10D×R1.5×100L×4F	10	25	10	R1.5	100
10×25×10D×R2.0×100L×4F	10	25	10	R2.0	100
12×30×12D×R0.5×100L×4F	12	30	12	R0.5	100
12×30×12D×R1.0×100L×4F	12	30	12	R1.0	100
12×30×12D×R1.5×100L×4F	12	30	12	R1.5	100
12×30×12D×R2.0×100L×4F	12	30	12	R2.0	100

Packaging & Shipping
Package and shipping details
Laser brand on the cutter's shank , 1 pc in a plastic tube , 10pcs a group
We cooperated with DHL , Fedex, UPS ,TNT, EMS and other express you wanted.

Delivery Time
For samples , we dispatch your tools in 2-7 workdays .
For formal orders,We delivery tools to you in 7-30 workdays , it will depond on your order quantity.

Payment Term
T/T ,Western Union , MoneyGram,L/C
Company Profile
Changzhou Hiboo Tools Co., Ltd is a high-tech enterprise with all vitality, potential and comprehensive Strength. The company located in Changzhou, Jiangsu, China, a unique place near by Shanghai.We are Gold Supplier who specialized in producting and exporting Carbide End Mills, Drills, Inserts, Reamers and more other customized cutting tools.The efficient workshop and Imported 5AXIS grind machines run by skillful operators. The strict inspection standards to make sure each cutter is inspected by Zoller Measuring and Inspecting Machine. Now, Our monthly output up to 50000pcs of carbide end mills, drills ect, More than 20000 cutters are in stock which meet your urgent requirements. Enough Raw Materials in stock to keep the price stability.
