Chassis parameters
|
Chassis model
| SX5256GJBDR434T
| Chassis brand
| SHACMAN
|
Overall dimensions
| 8270x2495x3250mm
| Wheel base
| 5100+1400mm
|
Front/rear wheel track
| 2036/1850/1850mm
| Front/rear suspension
| 1525/1770mm
|
Approach/departure angle
| 20/19°
| Maximum speed
| 77km/h
|
Chassis Manufacturer
| Shanxi Automobile Group Co., Ltd.
|
Cab
| Configuration
| Delong F3000 flat top cab, hydraulic seat, four-point hydraulic suspension cab, air conditioning, electric window machine, manual flip, F3000 Cooling System, Domestic Left-hand Steering Machine, Iron Storage Tank, Foyer Air Filter, Iron Bumper, 165Ah Battery, ETA Circuit Breaker, SHACMAN logo, all English identification.
|
Color
| White,other color is optional
|
Engine
| Model
| WP12NG350E40
|
Emission
| Euro 4
|
Type
| 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, exhaust valve brake, direct injection diesel engine
|
Rated power
| 350hp,rated power speed 2200rpm
|
Displacement
| 11596ml
|
Max.torque
| 1400N.m
|
Bore x stroke
| 126x155mm
|
Manufacturer
| Weichai Power Co., Ltd.
|
Tire
| Size
| 12.00R20 steel wire tire
|
Number
| 10+1 nos
|
Clutch
| Domestic φ430 diaphragm clutch
|
Frame
| 850 × 300 (8 + 7)mm
|
Gas tank
| 4*200L+4*80L
|
Front axle
| MAN, 7.5 tons disc type
|
Rear axle
| MAN,16 tons casting bridge,main reduction ratio 5.262
|
Drive form
| 6X4
|
Suspension
| Multi leaf springs, four bolts
|
Rated voltage
| 24V,DC
|
Transmissions
| gearbox 9JS119, 9 speed forward 1 reverse.
|
Steering device
| Power assisted steering,steering machine (domestic ZF technology)
|
Steering wheel
| Left hand drive
|
Selective configuration
|
|
If there is a slight change in the chassis parameters above,please take the actual product as the standard
|

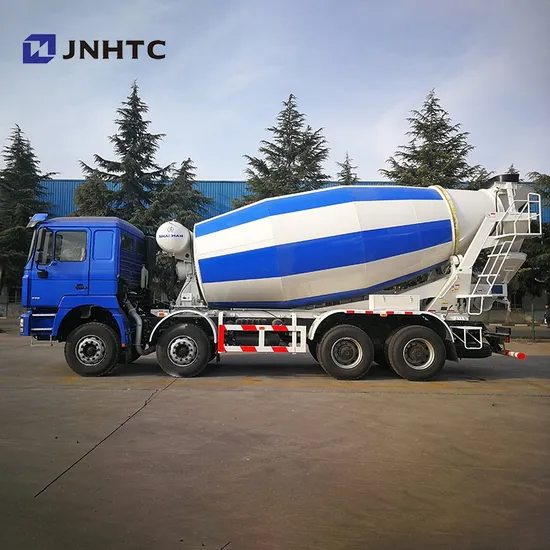

Concrete mixer truck structure parameters
|
Mixing capacity(m³)
| 12
| Color and Logo
| Optional
|
Feeding speed (m³/min)
| ≥5
| Discharge speed(m³/min)
| ≥3
|
Discharge residual rate
| ≤0.5%
| Slump scope(mm)
| 50-210
|
Water tank capacity(L)
| 300
| Water pressure(Mpa)
| 0.35-0.38
|
Tank material
| 5mm alloy steel
| Tank front head
| 8mm alloy steel
|
Reducer
| Italy Bonfiglioli
| Hydraulic motor
| Germany REXROTH
|
Hydraulic pump
| Germany REXROTH
| Radiator
| KAIPENG
|
Standard configuration
| chassis,sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device.
|
12m3
| Italy Bonfiglioli reducer,Germany REXROTH hydraulic pump,Germany REXROTH hydraulic motor,KAIPENG radiator,mixer tank(main tank 5mm alloy steel wear resistant material,front tank head 8mm alloy steel wear resistant material)
|
Q. What is your payment terms ?
A: 30% TT before produce and 70% TT before shipment . or 100% LC at sight ( irrevocable ).
Q. How long time you could delivery goods to customer ?
A : Generally 25 days of working , after we receive your deposits .
Q:How you can ensure you have deliveried goods to customers ?A: We will give you the complete shipping information details for you to confirm.
Q. How you could supply customers after sales services ?
A: We will reply you at first time and help you resolve the problems within 24 hours . If it really need us to your local , we will send your professional person to your local to help you resolve problems without any hesitation , supply you all-around after-sales services including machine maintenance and operation and technical training services etc .
