Bottle embryo injection molding machine

US$32,000.00-50,000.00 1 Set (MOQ)

Basic Info.

Model NO.
ZSJ2400PET
Making Method of Parison
Extrusion-Blow Molding
Automation
semi-automatic
Computerized
Non-Computerized
Certification
CE, ISO9001:2008, QS, GMP
English Manual
Yes
Capacity
9 piece one time
Clamping Force
2500KN
Transport Package
Wooden Box
Specification
7.93*1.82*2.24m
Trademark
VIC
Origin
China
Production Capacity
400set/Year

Product Description

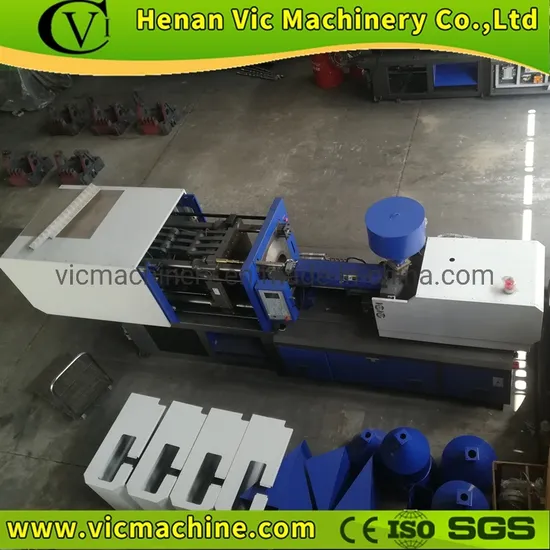

Bottle embryo injection molding machine
1-body; 2-electromechanical for oil pump; 3-clamping cylinder; 4-firm plate;5-clamping mechanism; 6-pull rod; 7-hooking template; 8-firm board; 9-plasticizing barrel;10 - hopper; 11 - acceleration box; 12 - electric idea;
13 - injection cylinder; 14 - metering assembly; 15 - moving cylinder; 16 - console
Features
The working principle of the injection molding machine is similar to that of the syringe for injection. It is to inject the plasticized molten state (ie, the viscous flow state) into the closed cavity by the thrust of the screw (or plunger). The process of obtaining the product after curing and setting.
Injection molding is a cyclic process, and each cycle mainly includes: quantitative feeding - melt plasticizing - pressure injection - filling mold cooling - mold extraction. After removing the plastic part, the mold is closed again for the next cycle.
Injection molding machine operation items: Injection molding machine operation items include three aspects: control keyboard operation, electrical control system operation and hydraulic system operation. The injection process action, the feeding action, the injection pressure, the injection speed, the selection of the ejection type, the monitoring of the temperature of each section of the barrel, the adjustment of the injection pressure and the back pressure are performed.
Generally, the molding process of the screw type injection molding machine is: firstly, the granular or powdered plastic is added into the barrel, and the plastic is melted by the rotation of the screw and the outer wall of the barrel, and then the machine performs the mold clamping and the injection seat forward. The nozzle is placed close to the gate of the mold, and then the pressure oil is introduced into the injection cylinder to advance the screw, thereby injecting the melt into the lower temperature closed mold at a high pressure and a relatively high speed. Time and pressure are maintained (also known as holding pressure), cooled, and solidified, and the product can be opened by mold opening (the purpose of holding pressure is to prevent backflow of molten material in the cavity, replenish material into the cavity, and ensure the product Has a certain density and dimensional tolerance). The basic requirements for injection molding are plasticization, injection and molding. Plasticization is the premise to achieve and guarantee the quality of molded products, and in order to meet the molding requirements, the injection must ensure sufficient pressure and speed. At the same time, due to the high injection pressure, a correspondingly high pressure is generated in the cavity (the average pressure in the cavity is generally between 20 and 45 MPa), so a sufficient clamping force must be obtained. It can be seen that the injection device and the clamping device are key components of the injection molding machine.
Main data:
Specification Unit ZSJ2400PET
Injection Unit
Screw Diameter mm 65
Screw L/D Ratio L/D 1:18.5
Injection Capacity In Theory cm3 830
Injection Weight g 755
Shot speed g/s 242
Plasticizing capacity g/s 34
Injection Pressure Mpa 121
Screw Speed rpm 0-200
Clamping Unit Clamping Force KN 2400
Toggle Stroke mm 480
Space Between Tie-bars mm 520*520
Max Mould Height mm 520
Min Mould height mm 220
Ejector Stroke mm 110
Hydraulic Ejection KN 70
Others Max. Pump Pressure Mpa 16
Pump Motor Power kw 22
Heater Power kw 24.73
Machine Dimensions (LxWxH) m 7.93*1.82*2.24
Machine Weight t 11.5

Component of the injection machine:
Name Brand
Controller TAI WAN Techmation 7 color screen
Vane pump America Sunny
Main direction valve America Vickers
Proportional valve Taiwan Dofluid /HNC
Hydraulic five star motor Ttaly Intermot /Zihyd
Core puller One set
Linear Transducer America/France
Electric equipment Japan Omron /Fuji
Lubrication Automatic
Main airproof element Taiwan /Japan
Electric motor Bei jing /zhong da
