Product Details
Product Description
Product Description
product description:

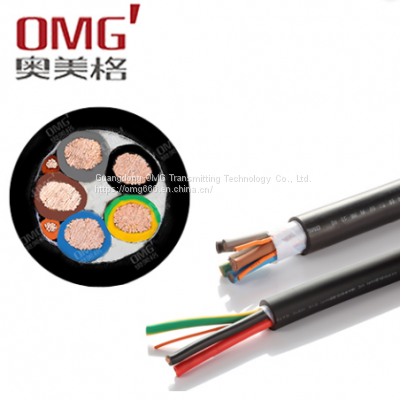

Construction
| Features
|
1.Conductor
| Rated temperature：-40℃～105℃
|
Material: Bare Copper
| Rated Voltage：300V；600V or 1000V
|
2.Insulation
| Flame Test： VW-1 Test method Comply with UL 2556
|
Material: TPE or PVC
| Min： Bending Radius: ≥5*OD
|
colour：Black，White，Green/Yellow
| Dielectric Voltage： 1.5kVac/1min. No Breakdown Test method Comply with UL 2556
|
3.Filler
| Cold Bending：-40℃/4h No cracks Test method Comply with UL 2556
|
Material: PP Cord
| Hot Shock：150℃/1h No cracks Test method Comply with UL 2556
|
4.Tape
| Oil Resistance：IRM902, 60℃/168h Tensile and Elongation ≥70% Unaged value
|
Material:Non-woven fabrics
| Crush Resistance：S≤12AWG 4.45kN, 12AWG＜S≤2AWG, 11.1kN, 2AWG＜S 15.6kN
|
5.Sheath
| Weather Resistance：720hin a xenon arc weatherometer, No cracks
|
Material: TPE or PVC
| Environmental Requirements：Compliant with RoHS 2.0 and REACH
|
Color: Black or Orange（customizable）
|
|
product advantages:
OMG charging cable has flexible structure, cold resistance, oil resistance, ozone resistance, abrasion resistance, UV resistance, American UL62 VW-1 flammability test, and the minimum bending radius can reach 5D, which is easy to install.
Applicable places:
The products are suitable for all kinds of electric vehicles, charging piles, power stations, charging stations, etc.
Company Profile:
Guangdong OMG Transmitting Technology Co., Ltd. was established in 2006 and covers an area of 20,000 square meters. The product footprint of OMG electric vehicle cables covers 40 countries and regions, with 2 production bases and 2 offices.
The company has passed ISO9001, IATF16949 system certification, EV charging cable has passed TUV certification, China CQC certification, China DEKRA certification, IEC62893 certification, EN50620 certification, UL62 and JCS4522 certification. OMG Electric Vehicle Cable is committed to becoming a world-class provider of new electric vehicle cable solutions.
For more electric vehicle cables and electric vehicle charging cables, please visit OMG official website: /
>>
