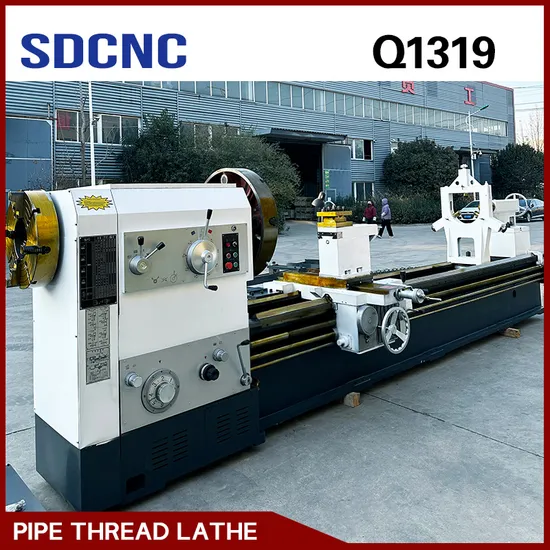

Sdcnc CNC Pipe Threading Lathe Pipe Machinery Q1319 Q1322 Q1327 Manual Heavy Duty Lathe Machine

Product Description

Product Performance

Big spindle bore and double chuck allows clamp and process big diameter pipes;
Integral machine bed adopts high strength iron to relize high rigidity and precision;
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;
Equiped with taper guide bar device this enables the machine to process taper threads.
Application:
Q13 series pipe threading lathe machine is mainly used for turning the internal and external threads including metric and inch thread,as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks,this machinery is equipped with taper guide bar device which enables this series to process taper thread.
This series lathe machine is widely used in industries including petroleum exploiting ,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on.
Standard accessories:
Tool post,Tailstock,Chuck,taper guide bar,Lighting lamp,Coolant pump,Rear support bracket,Pad iron etc.
Optional accessories:
Digital readout,Chuck,Faceplate,Chasing dial,Center rest,Signal light,Protective cover(lead-screw,chuck,tool post),and Grinding attachment etc.

Parameters

item	value
Condition	New
Max. Length of Workpiece (mm)	3000
Machining Capacity	Medium Duty
Spindle Bore(mm)	200
Max. Turned Length (mm)	3000mm
Type	Horizontal
Spindle Motor Power(kW)	11
Year	2019
Place of Origin	China
	Shandong
Brand Name	LUZHONG
Model Number	Q1319
Voltage	110V/220V
Weight (KG)	4200KG
Warranty	1.5 years
Key Selling Points	Easy to Operate
Applicable Industries	Home Use, Retail, Construction works
Showroom Location	Canada, United Kingdom, United States, Indonesia, Pakistan, India, Russia, Chile, UAE, Ukraine, Uzbekistan
Marketing Type	Ordinary Product
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	Bearing, Pump, Motor
Product Name	pipe threading lathe machine
Pipe threading range	50-193
Max.load capacity:	3T
Chuck size	520
Tool shank size	32x32
Spindle speed steps:	FWD. 12/REV. 6
Width of bed way	550
Swing over cross slide	340/540
Tailstock quill taper	MT5
Coolant pump motor	0.125KW

---
