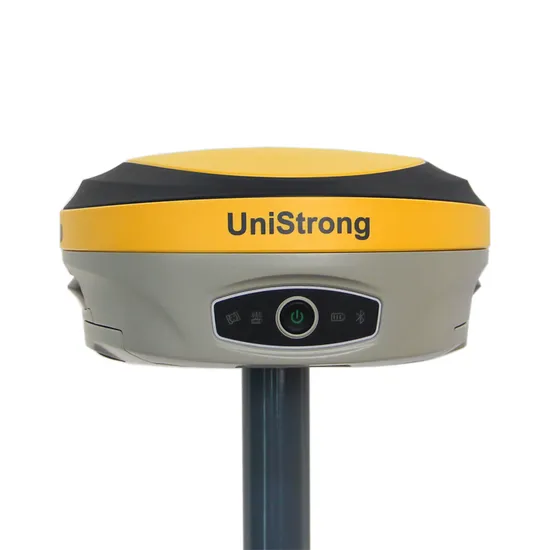

GPS Rtk Receiver GPS Survey Equipment Unistrong G970II PRO Dual Frequency Land Surveying Gnss Rtk Receiver Dgps Rtk

US$2,999.00
1 Set
US$2,950.00
2-4 Sets
US$2,899.00
5+ Sets

Basic Info.

Model NO.
G970II Pro
Operating Principle
Interferometric Type
Chip
Sirf
Port Number
1408 Channel
Brand Name
Unistrong
Model Number
G970II PRO
Product Name
G970II PRO Gnss Receiver
Contellation
GPS, Glonass, Beidou, Galileo
Static Accuracy
2.5mm +0.5ppm, 5mm+0.5ppm
Rtk Accuracy
8mm+1ppm, 15mm + 1ppm
Channel
1408 Channels
Internal Momery
4GB
Application
Topographic Survey, Engineering Survey, Marine Sur
Special Features
LED Screen, Tilt Sensor, Ebuble, Two Battery
Accuracy
1mm
Vertical Lines
1
Horizontal Line
1
After-sales Service
3 Years
Warranty
3 Years
Transport Package
1 Set Packed in 2 Cartons
Trademark
UNISTRONG
Origin
China
HS Code
9015800090
Production Capacity
20000PCS/Year

Packaging & Delivery

Package Size
80.00cm * 45.00cm * 35.00cm
Package Gross Weight
30.000kg

Product Description


GNSS Channel 1408
Signals BDS B1, B2, B3; GPS L1CA, L1P, L1C, L2P, L2C, L5; GLOASS G1, G2, P1,P2; GALILEO E1BC, E5A, E5B; QZSS L1CA, L2C, L5, L1C;SBAS L1CA, L5; L-Band
Accuracy Static Horizontal 2.5mm±1ppm Vertical 5mm±1ppm
RTK Horizontal 8mm±1ppm. Vertical 15mm±1ppm
DGNSS <0.5m
ATLAS 8cm
Initialization Time 8s
Initialization Reliability 99.9%
System Operating System Linux
Memory 8GB, support expandable MicroSD
WIFI 802.11b/g/n
Bluetooth V2.1+EDR/V4.1 dual, Class2
E-bubble Support
Tilt Survey Support IMU Tilt survey, no need calibration
Audio Support TTS audio broadcast
Datalink UHF TRx internal radio, 1w/2w adjustable
Protocol Support Geo talk, SATEL, PCC-GMSK, Trim talk, Trim Mark, South
Network 4G-LTE, TD-SCDMA, CDMA(EVDO,2000), WCDMA, GSM(GPRS)
Physical Interface 1TNC for 1 Radio Antenna, 15 pin for power and RS232, 17pin for USB and RS232
Button 1 power button
Indication Light 4 indication Lights
Size Φ156mm×H76mm
Weight 1.2kg
Environment Work Temperature -30ºC~+65ºC
Storage Temperature -40ºC~+80ºC
Dustproof & Waterproof IP67
Humidity 100% non-condense
