US$1,500.00-3,000.00
|
1 Set
(MOQ)
|
Basic Info.
Storage Objects
Liquid, Gas
Connection Type
API Dry Break Coupler
Transport Package
Pallet/Plywood Box
Product Description
Chemical Transportation same as Opw Al2404 Liquid Loading Arm

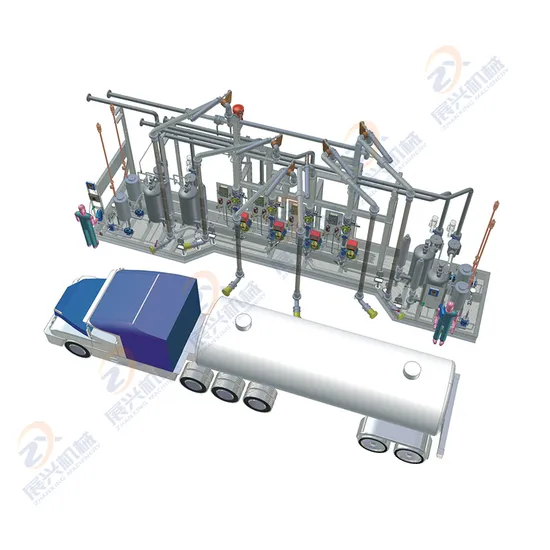

Land loading arm is one important fluid transfer equipment nowadays in the petrochemical industry. It is mainly used for transferring the fluid such as petroleum, LNG, LPG, chemicals, gas, oil, etc between the pipe system and the tankers.
It mainly consists of arms, swivel joint, spring balance system, flange, vapor cone, vacuum breaker valve, drop tube, coupling, etc
Land Loading Arm Features/Benefits:
It is suitable for loading/unloading operation on the top/bottom of the tanker/railcar It can follow the movement of the tanker/railcar in a definite range The balance can be achieved by weight stack, spring cylinder or pneumatic support Variety of ancillary facilities are available for selection in order to achieve safe operation or environmental protection Land Loading Arm Base parameters: Arm material: carbon steel, stainless steel, aluminium, etc Service liquid: petrochemicals, aviation kerosene, jet fuel,diesel, PMS, AGO,Asphalt, etc Nominal diameter: DN50-DN200 (2″-8″) Design pressure: -0.06Mpa-6.0Mpa Design temperature: -196°C-250°C Type: top loading arm, bottom loading arm
Note:
1. The dimension of land loading arms will be as per client's site actual condition.
2. The configuration will be as per client's detailed requirements.
3. Zhanxing machinery select suitable models and provide free design service for clients.
Typical Models of Zhanxing Land Loading Arms:
| Model | Loading Position | Application | Single/Double Pipes | Liquid Flange Direction | No. of Swivel Joints | Connection Type |
| AL1401 | Top | Loading | Single | Upwards | 4 | Open |
| AL1402 | Top | Loading | Single | Downwards | 4 | Open |
| AL1412 | Top | Loading | Double | Downwards | 4/5/8 | Open |
| AL1512 | Top | Loading | Double | Downwards | 10 | Closed |
| AL2503 | Bottom | Loading/Unloading | Single | / | 5 | Closed |
| AL2543 | Bottom | Loading/Unloading | Double | / | 10 | Closed |
| AL2404 | Bottom | Loading/Unloading | Single | Downwards | 4 | Closed |
>>
