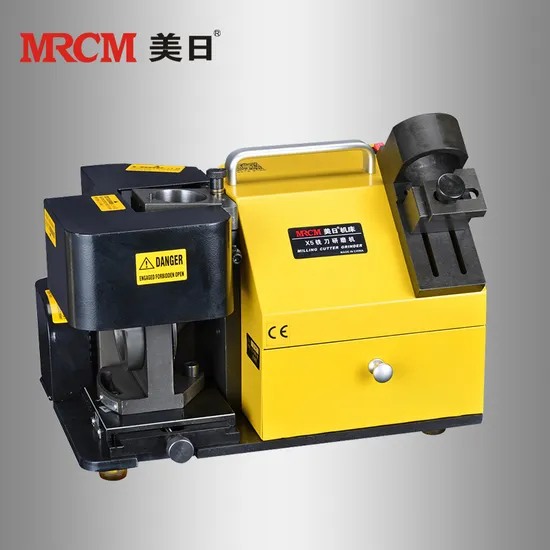

Mr-X5 12-32mm Automatic End Mill Sharpener

Product Description

MR-X5 13-30mm High precision end mill grinder , end mill sharpener
Product Description
1. Portable idiot end mill sharpener, can grind 2-flute, 3-flute, 4-flute end mill.
2. Grinding is accurate and rapid, easy operation with no skill to grind.
3. With diamond grinding wheel, only one piece can complete all procedures.
4. It can be equipped directly with an accurate angle and long service life.
Standard with SDC grinding wheel for the Carbide material, Optional CBN grinding wheel for the HSS material.

Model:	MR-X5
Diameter:	Φ13-Φ30mm
Power:	220V/250W
Speed:	4400rpm
Point angle:	0°-5°
Dimension:	40*28*31cm
Weight:	28KG
Standard Equipment:	Grinding wheel :SDC (for carbide)×1
	Nine collets: Φ14,Φ16,Φ18,Φ20,Φ22,Φ24,Φ26,Φ28,Φ30
	Two collet chucks: 2,4 flutes ×1 piece; 3,6 flutes×1 piece
Optional Equipment:	Grinding wheel :CBN (for HSS)×1

Details:

MR-X5
END MILL SHARPENER
Still use a simple type of operation design, without any grinding experience can also quickly work, whether you are
small and medium enterprises, family workshops, personal repair, all can achieve satisfy grinding results!
INSISTING ON ORIGINAL DESIGN FROM CHINA
Two -flute, three-flute,four-flute grinding sample
SMALL SIZE, SUITABLE FOR ANY PLACE TO DO END MILL GRINDING.
EASY TO DO THE MILL SETTING
According the diameter of the mill to adjust the scale, the operation steps are clear.
High precision and high efficiency.
EASY FOR END MILL GRINDING
According the the grinding hole, insert the chuck.
It is very clear to see the grinding position when open the cover of grinding wheel.
Standard accessories:

Grinding wheel ×1 pc Standard is SDC for carbide material	Collets ×9 pcs (Φ13-Φ30mm)	Collet chuck ×2 pcs

Packaging & Shipping
EXPORTING PACKAGE, SAFE AND STABLE
Company Information
MRCM is a manufacturer specialized in developing and producing small special-purpose tool grinders, precision machinery
tools. It is a high-tech enterprise which includes research and development; design; production; sale; and after-sale service. In the past many years, we've been committed to research, develop and produce the grinding tools. We've been
started from the portable drill bit sharpener and continuously developed to the current four-axis and six-axis CNC tool grinding machine. The CNC machine with different functions to meet the market requirements, effectively improve
the working life of tools and reduce production costs.
Main products include: CNC tool grinder, drill bit sharpener, end mill sharpener, screw tap sharpener, lathe tool grinder,
saw blade sharpener, universal cutter grinder, universal tool grinder, chamfer, tapping machine, vise, sucker, zero
positioning, and so on.
Engaged in international marketing, participated in international exhibitions, such as EMO Hannover, cooperated with the domestic and foreign companies. We've passed the CE, ISO 9001 certification, have been applied for over 70 national patents, sold product to 60 countries and regions, 80% of exporting products are sold to developed countries such as Japan, Europe countries and so on.

FAQ
1.What is your advance?
A:(1)We have ourselves factory. We accept the order if you want to customize products or design the product.
(2)Professional website platform and one-to-one online service.
(3)Various products in low MOQ and competitive prices.
(4)We have a strong R&D team and now we have 52 patents products.
(5)80% exporting products have been sold to Europe,America and Japan, high quality.
2. What's the minimum order quantity?
A: One set is acceptable
3. How about the payment Term?
A: We accept T/T,Western Union,LC
4. What's your port?
A: Ningbo/Shanghai.
5. Can we use our own shipping agent?
A: Yes,you can. we had cooperated with many forwarders.If you need,We can recommend some forwarders to you
and you can compare the price and the service.
6. Can we use our own LOGO or design for sticker?
A: Yes,you can contact with the salesman. And sent us more details about the LOGO or sticker.
7. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according
to quantity.
8. Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for cheaper price but do not pay the cost of freight.

---
