Mechanical Plane Type (12 Gears+12 Gears) Cheap 100HP Mini Crawler Tractor

Product Description

Product Description
50-100HP Farm Tractor,Rubber Tractor,Crawler Tractor
1.Farm tractors engine form adopt renowned directly injection vertical water cooled 4-stroke(In line,EFI,water cooled,4-stroke) YTO/CHANGCHAI engine.
2.Agricultural equipment tractors Walking rubber track pitch section*number*width: 90*46*300(W602,60HP) 90*46*350(W502,50HP) 90*50*350(W702/802,70/80HP) 90*51*350(W702,70HP) 90*54*400(W802/902,80/90HP) 90*56*500(W902/1002,90/100HP)
3.China best selling tractors cltuch:single-plate, single-acting, wet friction clutch Type.
4.Our farm tractors Minimum ground clearance(mm):260,400,410,530,610.
5.Equipment farming tractors of gear box:F12+R12;F8+R8;2(machanical gear)+2*2(hydraulic stepless speed change);Main transmission(hydraulic stepless speed change+machanical gear)+2(secondary speed change).
6.PTO:φ38,8teeth φ38,6teeth,Speed:720/1000.Linkage:II Rear Mount 3-point Linkage. We can produce and customize all sorts of medium-sized tractor 50 HP - 100 HP farm crawler tractors, diesel type, electric type can be customized production, and the tractor with all series farm implements, such as ridging machine,rotary tiller,disc plough, flattener,ditching machine,windrower,harrow, loader, backhoe, trailer,mower,grass chopper,silage corn straw harvester,small excavators etc you want. But firstly, tell us your preferred horsepower tractor.

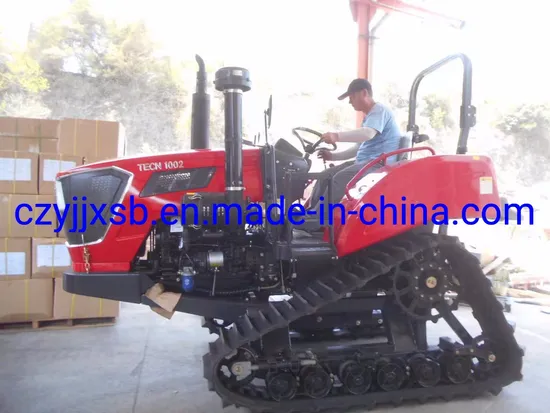

Detailed Photos
Product Parameters

Model	TECN1000
Weight (KGS)	2400
Main Standard Configuration
Working Dimension L*W*H (mm)	3900*1820*2420
Ground Clearance(mm)	530
Travelling Speed(km/h)	0-17
Diesel Engine
Model	YTO Engine 100hp
Type	Vertical, Water-cooling, 4*4 strokes Direct Inject
Rated Power/Rotating Speed	100HP/2600rpm
Fuel Consumption(kg/hm2)	12~30
Fuel Capacity (L)	60
Gear Box& HST
Gear Box	Planetary differential steering
	2 mechanical gear with 12 forward and 12 backward
Rubber Track
Size (mm)	450mm*56*90 mm
Length of Ground Contact (mm)	1070mm
Average Contact Pressure(kpa[kgf]/cm2)	≤20Kpa
Counterweight	3*45KG
3 Point Hitch	Adjustable Top Link and Left Right Rod
Pressure	Unilateral Pressure
PTO(r/min)	720
Max Tilling Depth(mm)	308
Others
Cabin/Sun-roof	Sun-roof
Rotary cultivator	2.3m
Optional	LEVELER
