3-Axis/4-Axis Fixed CNC Router with CCD Camera for High-Speed Cutting

Product Description

3-Axis/4-Axis Fixed CNC Router with CCD Camera for High-Speed Cutting 04
Product Description

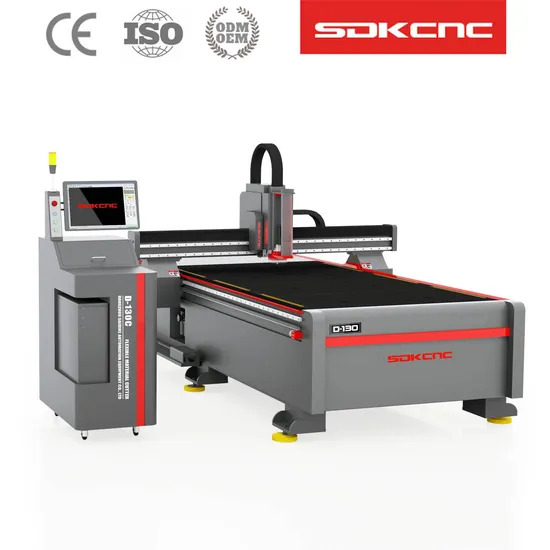

Δ D130C is a hi-speed edge patrol engraving machine developed and produced by SDKCNC,suitable for processing large quantities of plates.It adopts 3-axis CNC edge-control system,
Δ Its robust architecture,forged from Heavy duty steel structure (Stress Relief Treatment),undergoes a thorough time stress relief process. The whole machine adopts AC servo drive,Y-axis dual motor drive,so it's running stably and reliably.Adopts precision milling helical gear rack, straight guide rail,silent screw rod.The D130C adopts a weightless steel beam and comes standard with a 40,000 RPM water-cooled high speed spindle,which can be upgraded to 60,000 RPM.
Δ D130C can engrave and cuting wood,stone,PVC,acrylic,ABS,epoxy resin board,bakelite board and other materials in high speed.Standard with CCD system,cutting without leaving white edges with one step.Suitable for plate processing,furniture,advertising signs,industrial products,model display and other industries.
Detailed Photos
01 BED STRUCTURE
Heavy duty steel structur(Stress Relief Treatment)
All planes and installation holes are precision machined by gantry milling
02 TRANSMISSION
Transmission:X/Y-axis with high prescion helical rack & linear guide rail,Z-axis with mute screw
03 DRIVE MODE
The whole machine adopts AC servo drive,Y-axis dual motor drive,
04 SPINDLE
High speed water-cooled spindle, 40000 RPM, can be upgraded to 60000 RPM
05 WORKING TABLE
phenolic resin suction clip intergrated table with T slot
standard 5.5kw aluminum alloy vacuum pump
07 CCD SYSTEM
High resolution CCD camera element positioning, industrial edge cruising motion control system, can automatically correct the offset of the plate. And it can intelligently obtain the edge, one-click without white edge cutting.
Product Parameters

Technical Parameter
Working Area	1300 x 2500 mm
Repeat position accuracy	±0.01 mm
Spindle Power	3.0Kw (1-40000 RPM)
Spindle Type	water-cooling
Spindle	Single-spindle
Control system	Industrial 3-Axis Edge Patrol Motion Control System
CCD	High Resolution CCD System
Drive motor	AC Servo Motor + Reducer
Type Name	D-130C
Working Table	Phenolic resin suction clip intergrated table
Vacuum Pump	5.5KW
Transmission	2.5cm Linear Guide Rail& Grinding Level Helical Gear
Working Mode	hard materials cutting & engraving
Lubricating system	Automatic oiling system

Application Industry
Δ It widely used for high speed cutting and engraving of Acrylic,PVC,wood,aluminum plates,insulting boards,ABS board,aluminum-plastic plates,thick foam,PVC,MDF board ,expansion sheet.
Δ Normally apply to advertisement logo,sliding door ,packaging ,furniture,showcase,architectural models,metal signs .Suitable for processing various hard boards.
Packaging & Shipping
Company Profile
Our Advantages
FAQ
Q1: I knew nothing about this machine, what kind of machine i should choose?
Just tell us your materials ,thickness ,size and processing demands ,then we will give you best solutions and suggestions.

Q2: When I got this machine, but I don't know how to use it. What should I do? We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.

Q3: If some problems happen to this machine during warranty period, what should I do? We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.

Q4:When will delivery the machine after we got the down payment?
Fastly delivery .Normally we need take 15-20 days for one set .Above 2 sets ,we can negotiate .

Q5:How do you provide after-sales services?
You need confirm with our engineer in the group what the problem is ,and our engineer will confirm with if can solve it by remote guidance ,if cant solve it by remote video talking ,then we will send the acceptable express for replacing parts for you quickly.

---
